Product Specifications: Φ2.5×40-4.8×68m
Capacity: 150-1000t/h

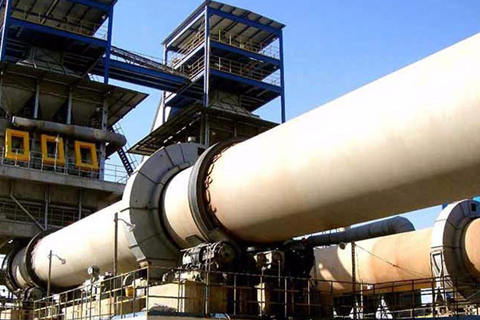

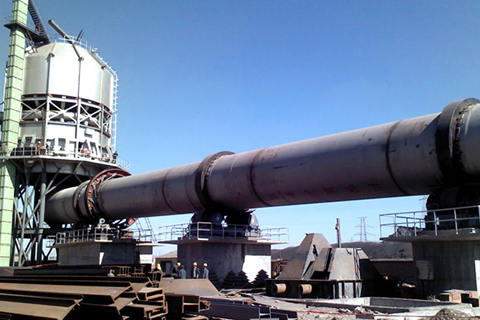

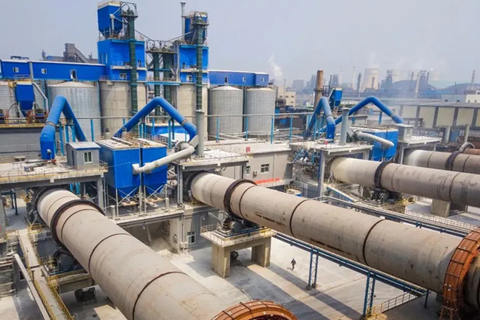

An active lime kiln is a type of rotary kiln and is the main equipment for calcining active lime. This equipment consists of a cylinder, supporting devices, a support device with hydraulic thrust rollers, a transmission device, a lubrication device, and a kiln tail sealing device. This rotary kiln features a simple structure, reliable operation, and easy automation of the production process.
The decomposition rate of preheated limestone entering the kiln can reach 20-25%, and 10-15mm fine-grained limestone can be directly utilized.
Reliable combined scale seals at both ends of the rotary kiln are adopted, making the air leakage coefficient less than 10%.
Composite refractory materials are used for the kiln lining to reduce radiant heat loss.
This rotary kiln has a simple structure, reliable operation, and the production process is easy to automate.
| Design capacity (t/d) |
150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 750 | 800 | 1000 | |
| Product | Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
|
| Preheater | round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre-heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
Vertical Polygon preheater |
Vertical Polygon preheater |
Vertical Polygon preheater |
|
| Rotary kiln |
Specification （m） |
Φ2.5 × 40 |
Φ2.8 × 42 |
Φ3 × 46 |
Φ3.2 × 50 |
Φ3.5 × 54 |
Φ3.6 × 56 |
Φ3.8 × 58 |
Φ4×60 Φ4.2×50 |
Φ4.3 × 58 |
Φ4.3 × 64 |
Φ4.8 × 68 |
| Effective volume （m³） |
142 | 190 | 235 | 292 | 390 | 430 | 505 | 575/548 | 670 | 738 | 1005 | |
| Burning temperature （°C） |
1350/ 1250 |
1350/ 1250 |
1350/ 1250 |
1350/ 1250 |
1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | |
| Cooler | Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
|
| Fuel | Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
|
| Heat rate ( KJ/KgC3O
) |
5300/ 5000 |
5300/ 5000 |
5300/ 5000 |
5300/ 5000 |
5225 | 5225 | 5100 | 5100 | 4810 | 4810 | 4810 | |
| Design capacity (t/d) |
Specification （m） |
Burning temperature （°C） |
| 150 | Φ2.5 × 40 |
1350/ 1250 |
| 200 | Φ2.8 × 42 |
1350/ 1250 |
| 250 | Φ3 × 46 |
1350/ 1250 |
| 300 | Φ3.2 × 50 |
1350/ 1250 |
| 350 | Φ3.5 × 54 |
1350 |
| 400 | Φ3.6 × 56 |
1350 |
| 500 | Φ3.8 × 58 |
1350 |
| 600 | Φ4×60 Φ4.2×50 |
1350 |
| 750 | Φ4.3 × 58 |
1350 |
| 800 | Φ4.3 × 64 |
1350 |
| 1000 | Φ4.8 × 68 |
1350 |
