Processing Capacity: 1.9-76t/h
Cylinder Capacity: 9-285m³

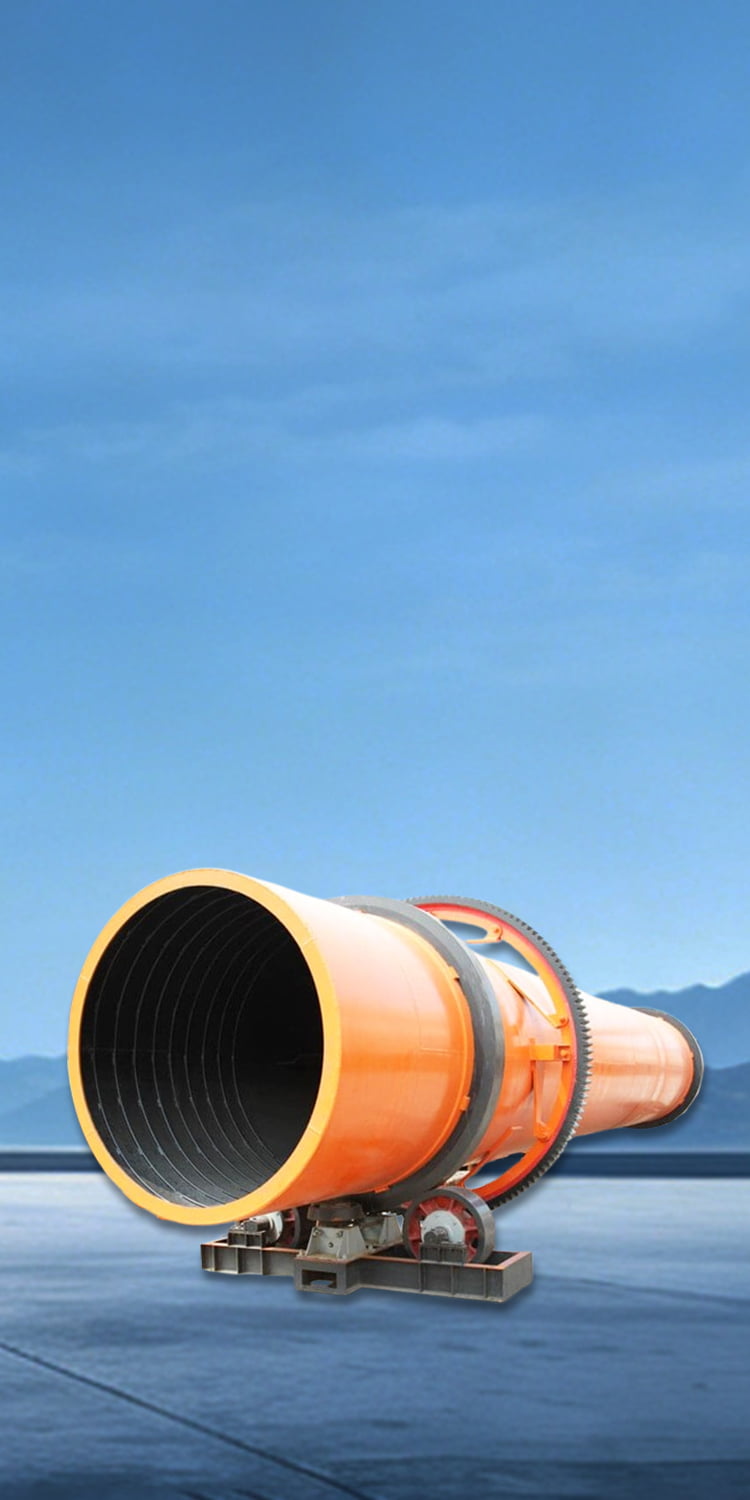

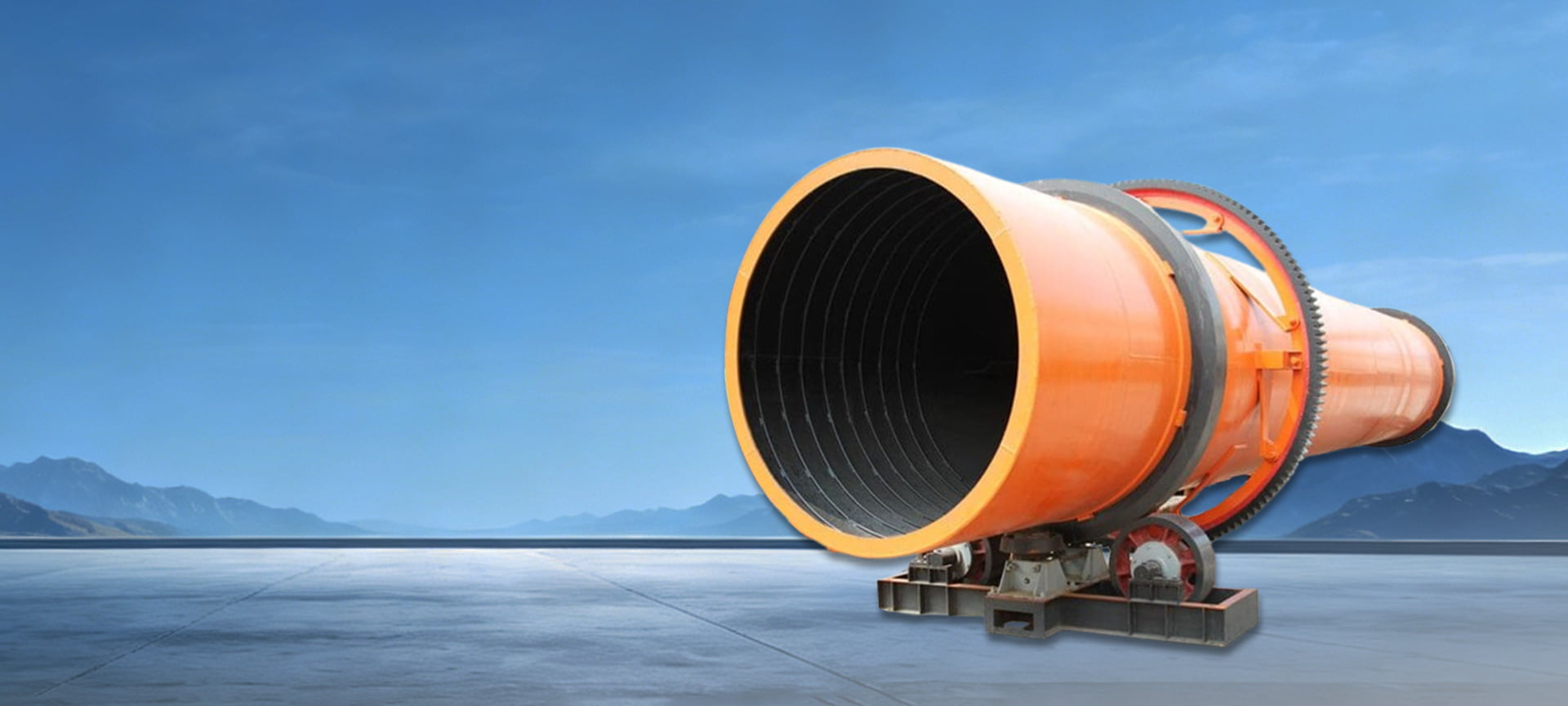

Coal Dryer designed for raw coal, lignite, coal slurry and more, with capacity of 10-100 T/H. Features explosion-proof design and intelligent temperature control system for safe and reliable operation. Special lifting flights ensure uniform heating with high thermal efficiency and low energy consumption. Widely used in thermal power plants, coal washing plants, and briquette processing industries.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
Special design with safety valves and temperature control prevents combustion risks, ensuring safe drying for volatile materials like coal.
Effectively reduces high moisture content (up to 30%) in raw coal and lignite with excellent drying performance.
Advanced control system maintains optimal temperature to prevent over-drying or coal burning, preserving coal quality.
Special lifting flights prevent wet coal from sticking to the drum wall, ensuring continuous operation without interruptions.
| Spec./m | Shell Cubage | Capacity(t/h) | Installation(%) | Highest Inlet Air Temperature | Main Motor |
| Φ 1.2×8 | 9 | 1.9-2.4 | 3-5 | 700-800 | 7.5 |
| Φ1.2 ×10 | 11.3 | 2.4-3 | 3-5 | 700-800 | 7.5 |
| Φ 1.5×12 | 21.2 | 4.5-5.7 | 3-5 | 700-800 | 15 |
| Φ 1.5×14 | 24.7 | 5.3-6.6 | 3-5 | 700-800 | 15 |
| Φ1.5×15 | 26.5 | 5.7-7.1 | 3-5 | 700-800 | 15 |
| Φ 1.8×12 | 30.5 | 6.5-8.1 | 3-5 | 700-800 | 18.5 |
| Φ 1.8×14 | 35.6 | 7.6-9.5 | 3-5 | 700-800 | 18.5 |
| Φ 2.2×12 | 45.6 | 9.7-12.2 | 3-5 | 700-800 | 22 |
| Φ 2.2×14 | 53.2 | 11.4-14.2 | 3-5 | 700-800 | 22 |
| Φ 2.2×16 | 60.8 | 13-16.2 | 3-5 | 700-800 | 22 |
| Φ 2.4×14 | 63.3 | 13.5-16.9 | 3-5 | 700-800 | 37 |
| Φ 2.4×18 | 81.4 | 17.4-21.7 | 3-5 | 700-800 | 37 |
| Φ 2.4×20 | 90.4 | 19.3-24.1 | 3-5 | 700-800 | 45 |
| Φ 2.4×22 | 99.5 | 21.2-26.5 | 3-5 | 700-800 | 45 |
| Φ 2.6×24 | 127.4 | 27.2-34 | 3-5 | 700-800 | 55 |
| Φ 3×20 | 141.3 | 30.1-37.7 | 3-5 | 700-800 | 75 |
| Φ 3×25 | 176.6 | 37.7-47.1 | 3-5 | 700-800 | 75 |
| Φ 3.2×25 | 201 | 42.9-53.6 | 3-5 | 700-800 | 90 |
| Φ 3.6×28 | 285 | 60.8-76 | 3-5 | 700-800 | 160 |
| Spec./m | Capacity(t/h) | Highest Inlet Air Temperature |
| Φ 1.2×8 | 1.9-2.4 | 700-800 |
| Φ1.2 ×10 | 2.4-3 | 700-800 |
| Φ 1.5×12 | 4.5-5.7 | 700-800 |
| Φ 1.5×14 | 5.3-6.6 | 700-800 |
| Φ1.5×15 | 5.7-7.1 | 700-800 |
| Φ 1.8×12 | 6.5-8.1 | 700-800 |
| Φ 1.8×14 | 7.6-9.5 | 700-800 |
| Φ 2.2×12 | 9.7-12.2 | 700-800 |
| Φ 2.2×14 | 11.4-14.2 | 700-800 |
| Φ 2.2×16 | 13-16.2 | 700-800 |
| Φ 2.4×14 | 13.5-16.9 | 700-800 |
| Φ 2.4×18 | 17.4-21.7 | 700-800 |
| Φ 2.4×20 | 19.3-24.1 | 700-800 |
| Φ 2.4×22 | 21.2-26.5 | 700-800 |
| Φ 2.6×24 | 27.2-34 | 700-800 |
| Φ 3×20 | 30.1-37.7 | 700-800 |
| Φ 3×25 | 37.7-47.1 | 700-800 |
| Φ 3.2×25 | 42.9-53.6 | 700-800 |
| Φ 3.6×28 | 60.8-76 | 700-800 |
| Shell diameter × shell Length | Inside diameter of outer shell （mm） |
Inside diameter of inner shell （mm） |
Shell Length （m） |
Shell cubage （m³） |
Shell obliquity | Lifting blade form | Highest inlet air temperature （℃） |
Dimensions （m） |
| Φ1.5×15m | 1500 | 500 | 15 | 20.27 | 3-5% | Lifting form | 850 | 16.2×2.7×2.7 |
| Φ1.5×17m | 17 | 22.97 | 18.2×2.7×2.7 | |||||
| Φ1.5×19m | 19 | 25.68 | 20.0×2.9×2.9 | |||||
| Φ1.8×21m | 1800 | 650 | 21 | 35.91 | 3-5% | Lifting form | 850 | 22.5×2.7×2.7 |
| Φ1.8×23m | 23 | 39.33 | 24.5×2.9×2.9 | |||||
| Φ1.8×25m | 25 | 42.75 | 26.5×2.9×2.9 | |||||
| Φ2.2×21m | 2200 | 800 | 21 | 58.10 | 3-5% | Lifting form | 850 | ---- |
| Φ2.2×23m | 23 | 63.61 | ||||||
| Φ2.2×25m | 25 | 69.15 |
| Shell diameter × shell Length | Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell cubage (m³) |
| Φ1.5×15m | 1500 | 500 | 20.27 |
| Φ1.5×17m | 22.97 | ||
| Φ1.5×19m | 25.68 | ||
| Φ1.8×21m | 1800 | 650 | 35.91 |
| Φ1.8×23m | 39.33 | ||
| Φ1.8×25m | 42.75 | ||
| Φ2.2×21m | 2200 | 800 | 58.10 |
| Φ2.2×23m | 63.61 | ||
| Φ2.2×25m | 69.15 |
| Item/Unit/Model | Φ2.5×7m | Φ2.7×7m | Φ3.0×7.0m | Φ3.2×7.0m | Φ3.6×8m |
| Diameter of outer cylinder(m) | 2.5 | 2.7 | 3.0 | 3.2 | 3.6 |
| Length of outer cylinder(m) | 7 | 7 | 7.0 | 7.0 | 8 |
| Cylinder volume( m³ ) | 16.63 | 16.63 | 52.678 | 52.678 | 81.38 |
| Rotating speed of cylinder(rpm) | 4-10 | 4-10 | 4 -10 | 4 -10 | 4 -10 |
| Initial moisture of slag(%) | 10-12 | 10-12 | 10-12 | 10-12 | 10-12 |
| Final moisture of slag(%) | 1 | 1 | 1 | 1 | 1 |
| Initial moisture of yellow ground(%) | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 |
| Final moisture of yellow ground (%) | 0.5-1 | 0.5-1 | 0.5-1 | 0.5-1 | 0.5-1 |
| Highest intake air temperature(℃) | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ |
| Production capacity(T/h) | Yellow sand25-30 Slag20-25 |
Yellow sand30-35 Slag25-30 |
Yellow sand35-40 Slag30-35 |
Yellow sand45-50 Slag35-40 |
Yellow sand65-70 Slag60-65 |
| Motor type | Y2-132m-4E | Y2-132m-4E | Y2-160m-4 | Y2-160m-4 | Y2-160m-4 |
| Motor power(kw) | 7.5×2 | 11×2 | 7.5×4 | 7.5×4 | 15×4 |
| Reducer type | XWD7-23-11W | XWD7-23-11W | XWD6-23-7.5KW | XWD6-23-7.5KW | XWD8-23-15KW |
| Velocity ratio of reducer | 29 | 29 | 29 | 29 | 29 |
| Item/Unit/Model | Cylinder volume( m³ ) | Production capacity(T/h) |
| Φ2.5×7m | 16.63 | Yellow sand25-30 Slag20-25 |
| Φ2.7×7m | 16.63 | Yellow sand30-35 Slag25-30 |
| Φ3.0×7.0m | 52.678 | Yellow sand35-40 Slag30-35 |
| Φ3.2×7.0m | 52.678 | Yellow sand45-50 Slag35-40 |
| Φ3.6×8m | 81.38 | Yellow sand65-70 Slag60-65 |
