Air volume handled: 864-19800 m³/h
Filtration velocity: 0.8-2.0 (m/min)

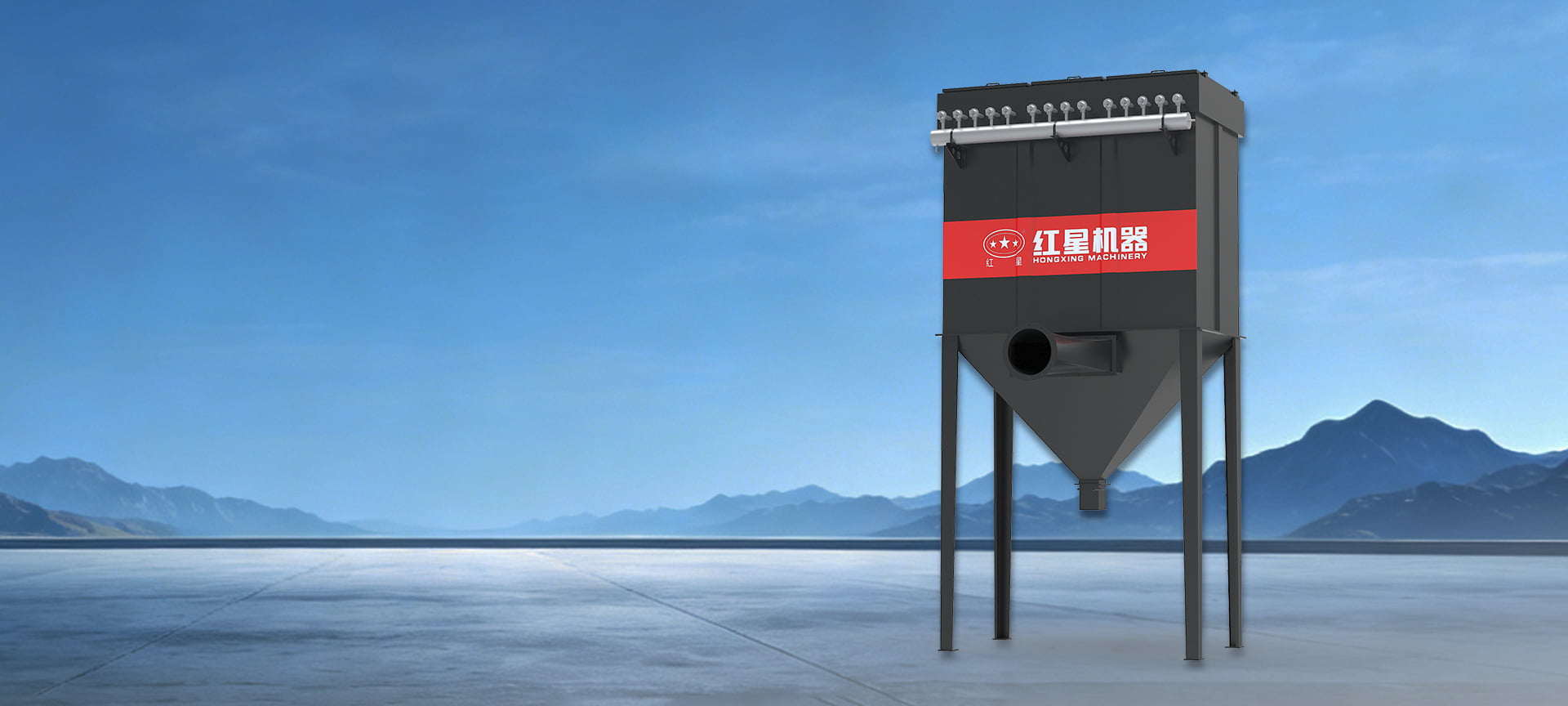

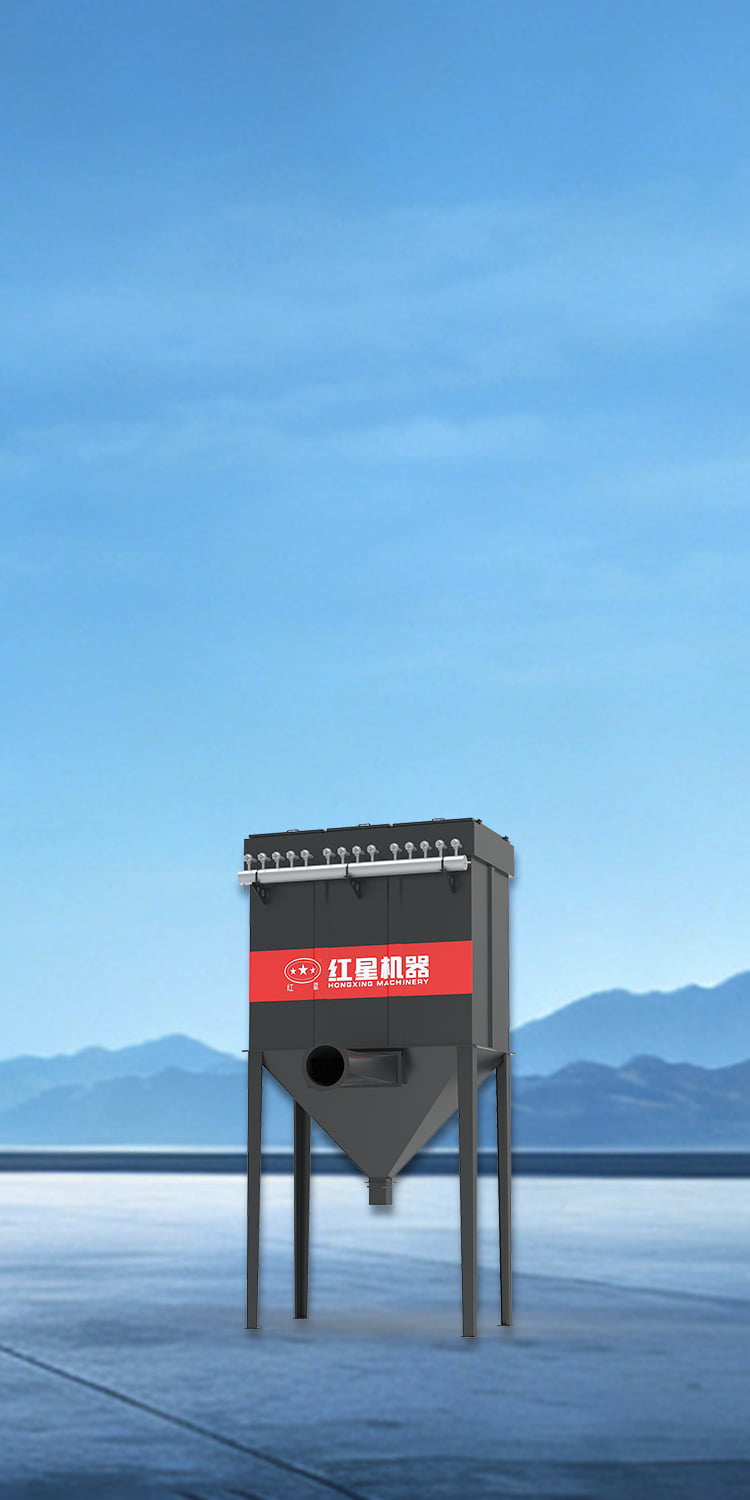

The DMC series single-unit pulse dust collector adopts pulse jet cleaning, featuring high cleaning efficiency, appropriate air volume handling capacity, long filter bag life, low maintenance workload, and safe and reliable operation.
It is suitable for dust removal and purification of non-fibrous industrial dust and material recovery in various industrial and mining enterprises.
| Model | Filter area (m²) |
Processing air volume (m³/h) |
Filtered air speed (m/min) |
Fan Power (kW) |
Number of filter bags |
Inlet dust concentration (g/Nm³) |
| DMC24 | 18 | 864~2160 | 0.8~2 | 1.5 | 24 | <200 |
| DMC36 | 27 | 1296~3240 | 0.8~2 | 3 | 36 | <200 |
| DMC48 | 36 | 1728~4320 | 0.8~2 | 4 | 48 | <200 |
| DMC64 | 48 | 2304~5760 | 0.8~2 | 4 | 64 | <200 |
| DMC80 | 60 | 2880~7200 | 0.8~2 | 5.5 | 80 | <200 |
| DMC96 | 72 | 3456~8640 | 0.8~2 | 7.5 | 96 | <200 |
| DMC112 | 84 | 4032~10080 | 0.8~2 | 7.5 | 112 | <200 |
| DMC128 | 96 | 4608~11520 | 0.8~2 | 7.5 | 128 | <200 |
| DMC150 | 112.5 | 5400~13500 | 0.8~2 | 15 | 150 | <200 |
| DMC180 | 135 | 6480~16200 | 0.8~2 | 18.5 | 180 | <200 |
| DMC220 | 165 | 7920~19800 | 0.8~2 | 30 | 220 | <200 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Filter area (m²) |
Processing air volume (m³/h) |
Filtered air speed (m/min) |
Fan Power (kW) |
| DMC24 | 18 | 864~2160 | 0.8~2 | 1.5 |
| DMC36 | 27 | 1296~3240 | 0.8~2 | 3 |
| DMC48 | 36 | 1728~4320 | 0.8~2 | 4 |
| DMC64 | 48 | 2304~5760 | 0.8~2 | 4 |
| DMC80 | 60 | 2880~7200 | 0.8~2 | 5.5 |
| DMC96 | 72 | 3456~8640 | 0.8~2 | 7.5 |
| DMC112 | 84 | 4032~10080 | 0.8~2 | 7.5 |
| DMC128 | 96 | 4608~11520 | 0.8~2 | 7.5 |
| DMC150 | 112.5 | 5400~13500 | 0.8~2 | 15 |
| DMC180 | 135 | 6480~16200 | 0.8~2 | 18.5 |
| DMC220 | 165 | 7920~19800 | 0.8~2 | 30 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
