Feed size: ≤500mm
Capacity: 120-1100t/h

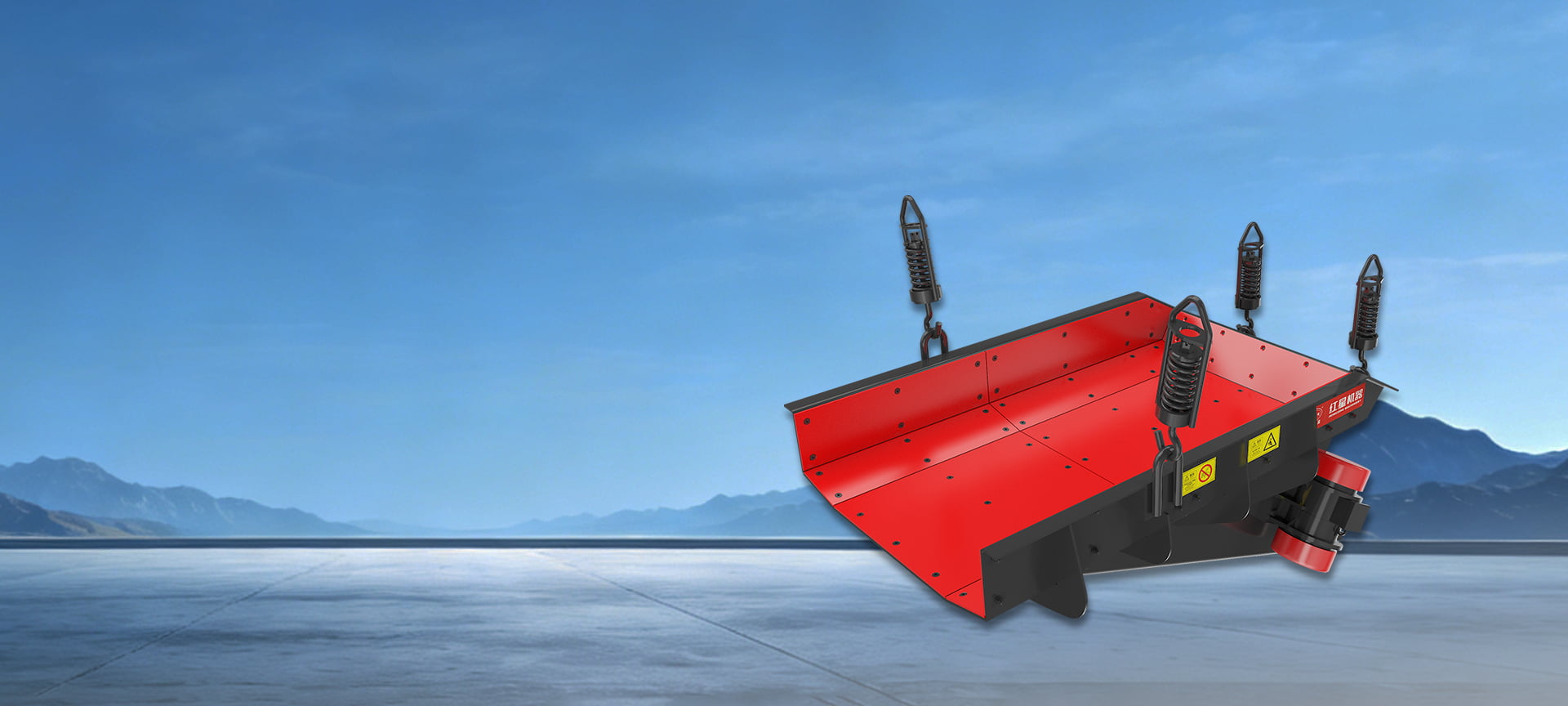

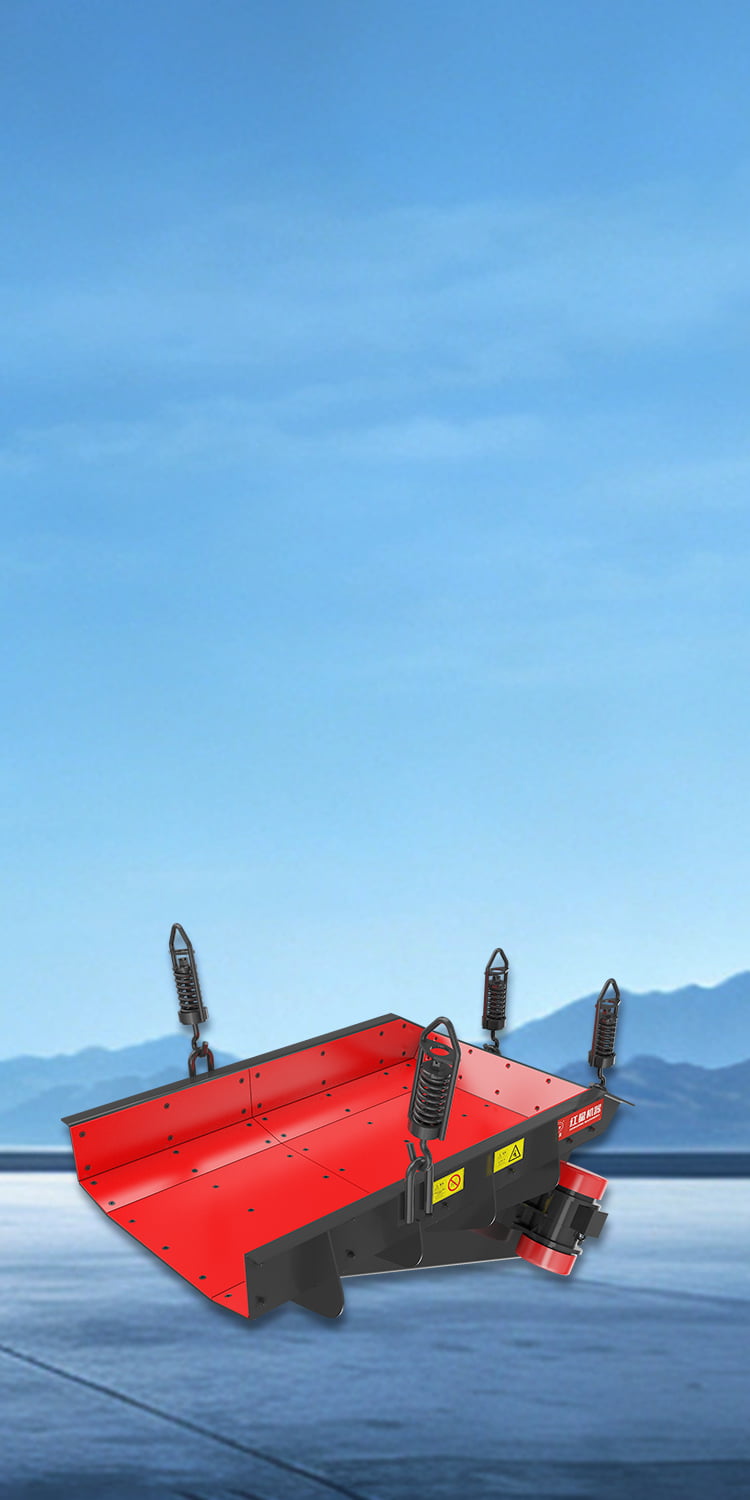

Hongxing Group's GZG series under-silo feeder, paired with a transfer silo, provides continuous and stable feeding to secondary/tertiary crushing equipment. It is specifically designed to solve the problem of impact and damage to crushing equipment caused by intermittent feeding on-site, greatly improving the lifespan and production efficiency of the crushing equipment.
Utilizes a fully welded tank body for a compact overall structure.
Driven by dual vibration motors for stable and reliable performance.
Suspended installation for convenient angle adjustment.
The inner side of the tank is equipped with a standard NM400 wear-resistant lining plate to extend service life.
| Model | Feeding size（mm） | Double Amplitude（mm） | Feeding Capacity（t/h） | Motor Power（kw） | |
| 0° | 10° | ||||
| GZG7012 | 200 | 2.5-3.5 | 120 | 170 | 2×0.55 |
| GZG9015 | 250 | 2.5-3.5 | 180 | 250 | 2×0.75 |
| GZG1117 | 300 | 2.5-3.5 | 300 | 420 | 2×1.1 |
| GZG1320 | 350 | 2.5-3.5 | 480 | 670 | 2×1.5 |
| GZG1625 | 500 | 2.5-3.5 | 770 | 1100 | 2×2.2 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding size（mm） | Feeding Capacity（t/h） | Motor Power（kw） | |
| 0° | 10° | |||
| GZG7012 | 200 | 120 | 170 | 2×0.55 |
| GZG9015 | 250 | 180 | 250 | 2×0.75 |
| GZG1117 | 300 | 300 | 420 | 2×1.1 |
| GZG1320 | 350 | 480 | 670 | 2×1.5 |
| GZG1625 | 500 | 770 | 1100 | 2×2.2 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
