Feed size: ≤900mm
Capacity: 50-750t/h

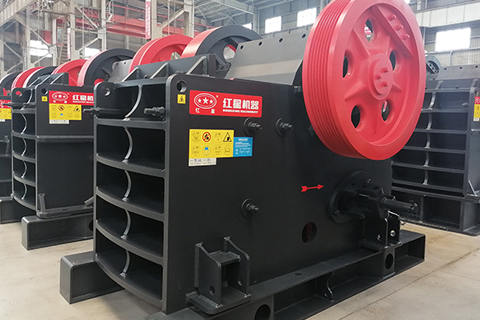

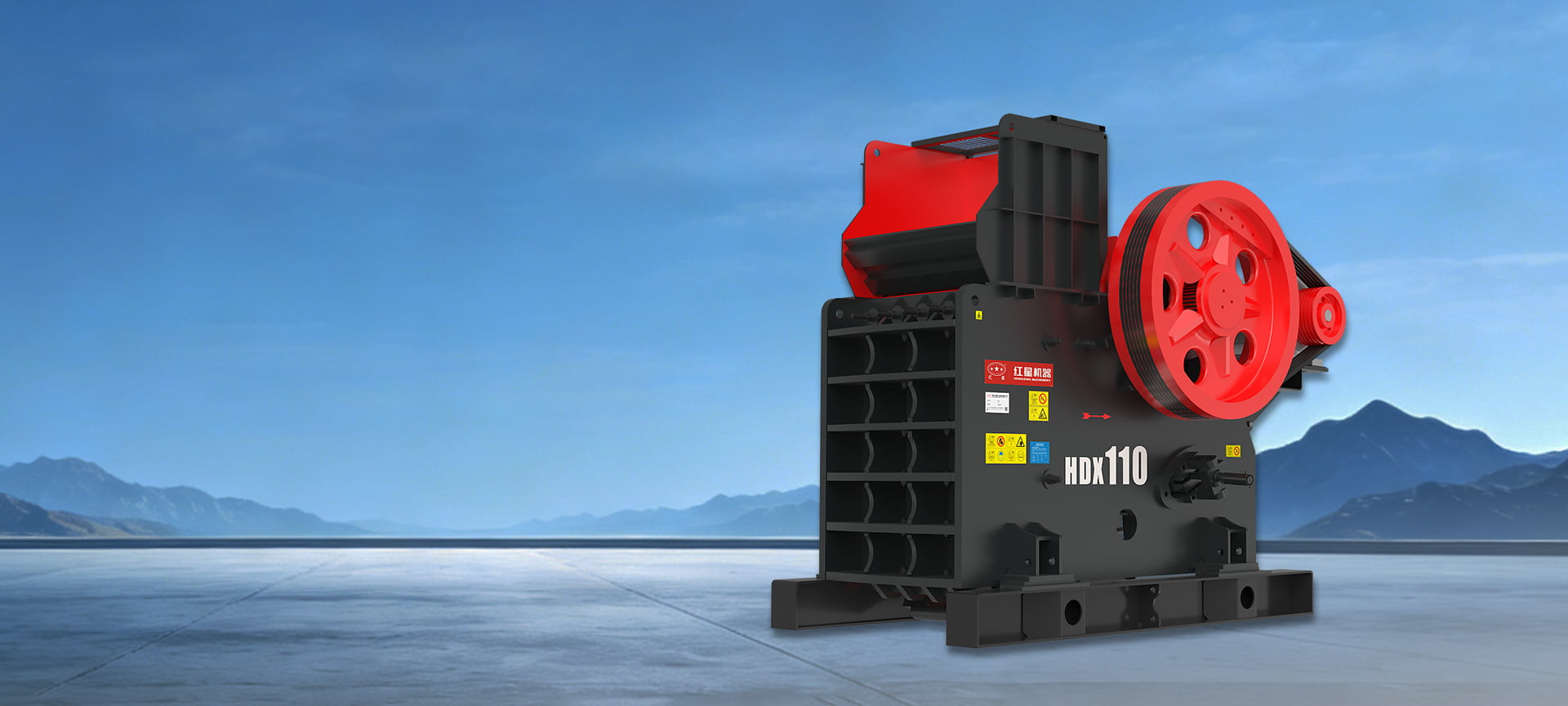

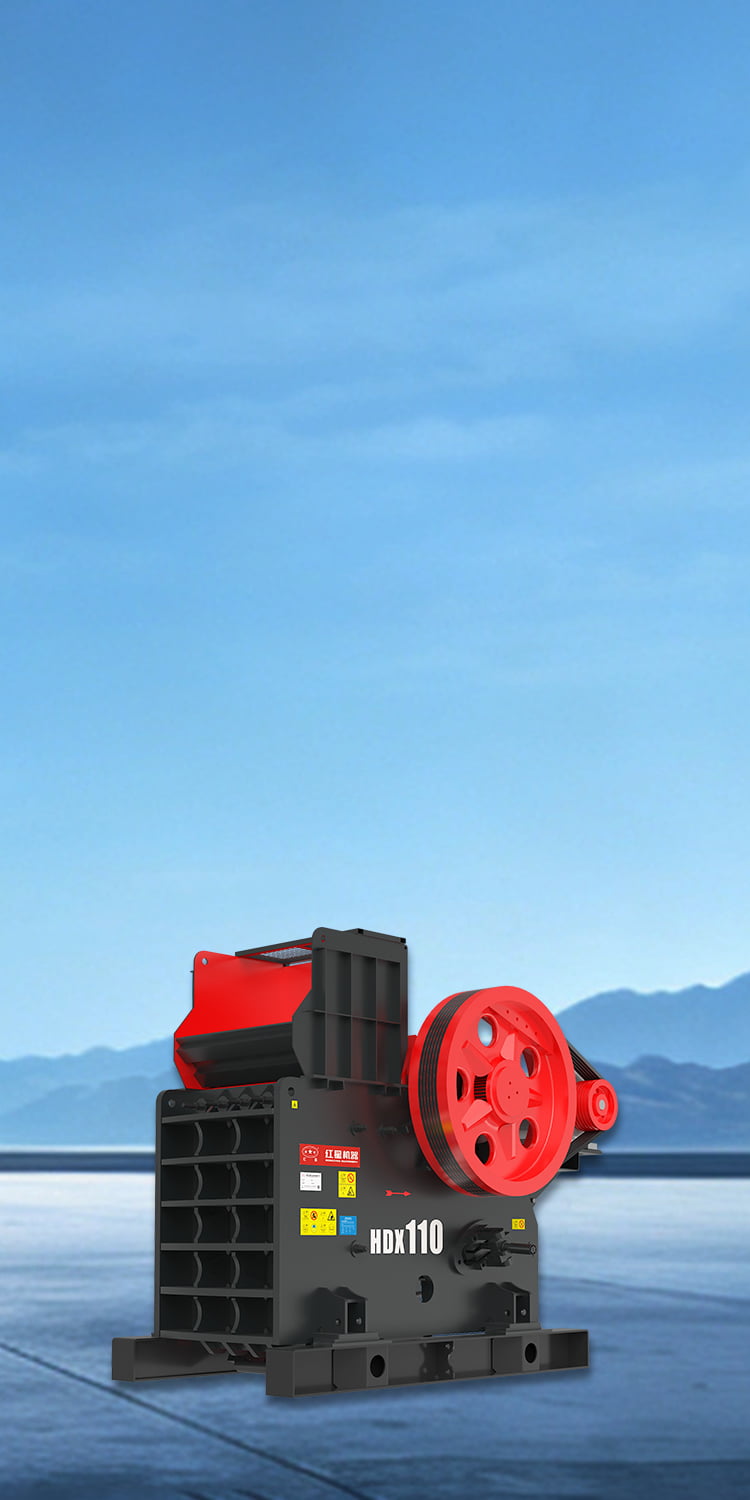

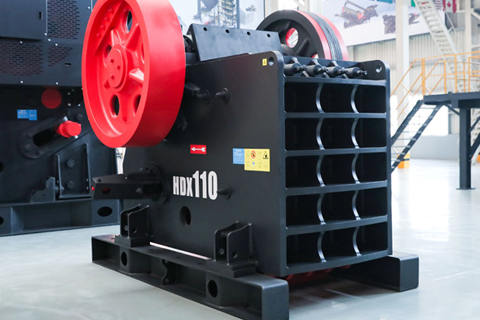

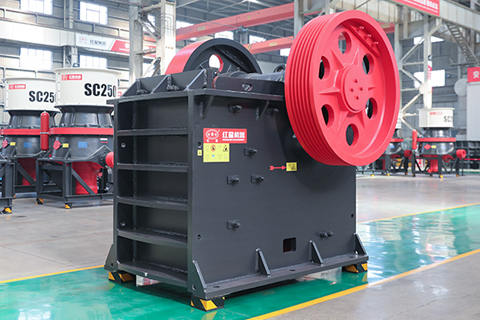

The HDX German-style jaw crusher is an upgraded product based on the HD German-style jaw crusher, developed by our company in conjunction with numerous customer site visits and market demands.
It saves space, is easy to operate, and reduces the costs of foundation construction, installation, operation, and maintenance.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
The integrated motor bracket simplifies installation and reduces installation space; the crusher moves synchronously with the integrated motor bracket, improving the load on the V-belt.
Using rubber vibration damping devices and limit blocks, peak vibration loads can be absorbed, allowing lateral and longitudinal displacement of the crusher, thus effectively reducing the impact of the crusher on the foundation and preventing damage to the foundation from anchor bolts.
Adjustment is available in mechanical and hydraulic methods. The discharge opening can be adjusted within minutes, significantly reducing labor intensity and downtime; this system is particularly effective when the jaw crusher stops to clear the chamber with material.
The steel plate toggle plate is lightweight, easy to replace, and bends under overload, avoiding damage to the conveyor belt caused by the breakage and falling of traditional cast iron toggle plates.
Global coverage, consistent quality, trusted by customers worldwide.
| Model | Feeding opening size(mm) | Maximum feeding size （mm） | Adjustment range of discharge port（mm） | Processing capacity(t/h) | Power(kw) | Dimensions L×W×H（mm） |
| HDX72(57) | 720×460 | 370 | 45-100 | 50-120 | 6P 55 | 2450×2160×1615 |
| HDX86(69) | 860×580 | 460 | 50-150 | 60-280 | 8P 75 | 3005×2392×1780 |
| HDX98(751) | 980×680 | 550 | 75-175 | 110-410 | 8P 110 | 3372×2530×2145 |
| HDX110(912) | 1100×850 | 680 | 100-200 | 170-550 | 6P 132 | 3616×2670×2515 |
| HDX125 | 1250×950 | 760 | 125-225 | 280-750 | 8P 160 | 4214×2830×2887 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size(mm) | Maximum feeding size （mm） | Processing capacity(t/h) |
| HDX72(57) | 720×460 | 370 | 50-120 |
| HDX86(69) | 860×580 | 460 | 60-280 |
| HDX98(751) | 980×680 | 550 | 110-410 |
| HDX110(912) | 1100×850 | 680 | 170-550 |
| HDX125 | 1250×950 | 760 | 280-750 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
