HLM Series Vertical Grinding Mill

Product Introduction

The HLM series vertical grinding mill is a large-scale, advanced, high-yield, and energy-saving grinding product developed by Hongxing Group using advanced bed grinding and partial external circulation technology, combined with over forty years of grinding mill manufacturing experience.

It integrates grinding, grading, drying, and conveying, and features a drying function that allows for hot air circulation, saving the need for a separate drying system.

It possesses independent intellectual property rights, and its core technology and economic indicators have reached advanced levels.

Applied Materials

Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.

HLM Series Vertical Grinding Mill materials

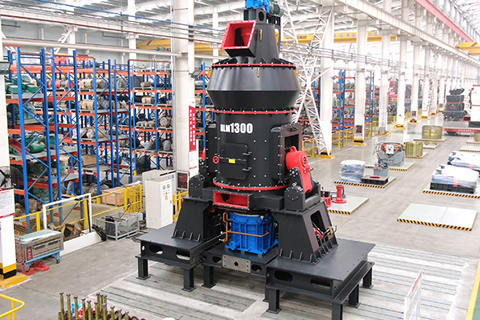

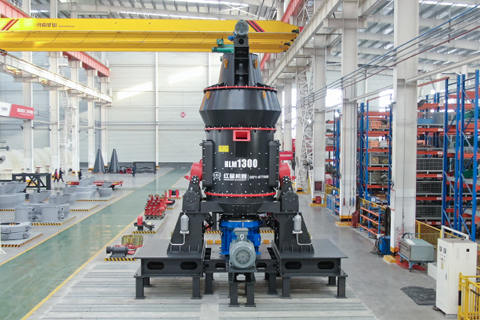

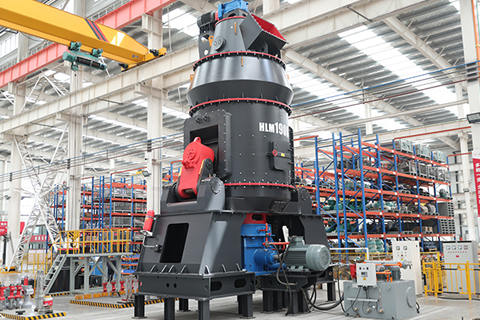

Factory Area Product Display

Advantages

Clean and Environmentally Friendly

The entire system operates under complete negative pressure, ensuring reliable sealing and preventing dust spillage. The environment is clean, and the finished product is collected using a baghouse dust collector with a dust removal efficiency of up to 99.9%, exceeding the latest national environmental standards.
High Output and Energy Saving

High grinding efficiency and low energy consumption, saving 30%-50% of electricity compared to ball mills. Limiting devices prevent direct contact between the grinding rollers and grinding discs, minimizing wear on the grinding roller sleeves and liners. The grinding roller sleeves can be flipped for reuse, doubling their service life. Equipped with a hydraulic loading system, the grinding pressure can be flexibly adjusted, resulting in high output and energy savings.
High Degree of Automation and Simple Operation and Maintenance

A fully automatic control system allows for remote operation. An external independent thin oil lubrication station facilitates oil changes. The reducer and grinding roller bearings use forced thin oil lubrication, which removes a significant amount of heat during lubrication, extending service life. A hydraulic maintenance device allows the grinding rollers to be flipped out of the machine, making roller sleeve replacement and maintenance convenient and quick.
Low Overall Investment Cost

Integrating grinding, grading, drying, and conveying into one compact layout, it occupies a small area and can be installed outdoors, reducing construction costs. It features a drying function, allowing hot air to directly and repeatedly contact the powdered material within the mill for thorough drying, saving the need for a separate drying equipment. By adjusting the hot air temperature, it can meet the drying requirements of materials with varying moisture content, up to 15%.

Technical Data

HLM Pulverized Coal Vertical Mill
HLM Vertical Mining Mill
HLM Slag Vertical Mill
HLM Cement Clinker Pre-grinding Vertical Mill
HLM Cement Vertical Mill
HLM High-fineness Vertical Mill

Specifications	Capacity(t/h)	Pulverized coal fineness	The raw coal moisture	Pulverized coal moisture	Main motor power(kW)
HLM1200M	6—10	R0.08=5-15%	≤15%	≤1-5%	110-132
HLM1300M	10-15				160—200
HLM1500M	15—20				220—280
HLM1700M	20-30				280-355
HLM1900M	26-35				355—450
HLM2200M	35-50				450—560
HLM2400M	45-55				560-710
HLM2800M	60-80				900—1120

Note:Raw coal HGl≥55

Specifications	Capacity(t/h)	Main motor power(kW)
HLM1200M	6—10	110-132
HLM1300M	10-15	160—200
HLM1500M	15—20	220—280
HLM1700M	20-30	280-355
HLM1900M	26-35	355—450
HLM2200M	35-50	450—560
HLM2400M	45-55	560-710
HLM2800M	60-80	900—1120

Note:Raw coal HGl≥55

Specifications	Capacity(t/h)	The finished product fineness	The raw material moisture	The finished product moisture	Main motor power(kW)
HLM1300K	10-40	0.84-0.37mm (20-400 mesh)	≤15%	≤1%	200
HLM1500K	13-50				280
HLM1700K	18-70				400
HLM1900K	20-85				500
HLM2200K	35-135				800-900
HLM2400K	40-160				900-1120
HLM2800K	50-200				1120-1250
HLM3400K	70-260				1800-2000
HLM3700K	90-320				2500-2800

Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t

Specifications	Capacity(t/h)	Main motor power(kW)
HLM1300K	10-40	200
HLM1500K	13-50	280
HLM1700K	18-70	400
HLM1900K	20-85	500
HLM2200K	35-135	800-900
HLM2400K	40-160	900-1120
HLM2800K	50-200	1120-1250
HLM3400K	70-260	1800-2000
HLM3700K	90-320	2500-2800

Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t

Specifications	Capacity(t/h)	Specific surface area	Slag moisture	Mineral moisture	Main motor power(kW)
HLM17-2N	6-10	≥420㎡/kg	≤15%	≤1%	200-220
HLM19-2N	8-13				280-315
HLM21-2N	10-15				400-450
HLM24-2N	12-18				500-560
HLM28-2N	22-30				900-1000
HLM35-3N	55-70				1800-2000
HLM42-4N	70-100				2500-2800
HLM46-4N	85-135				3150-3800
HLM53-4N	130-165				4500-5000

Note: Slag grindability (Bond) index ≤25kw/t; Steel slag grindability (Bond) index ≤30kw/t; The production of steel slag is reduced by about 30-40% when it is ground.

Specifications	Capacity(t/h)	Main motor power(kW)
HLM17-2N	6-10	200-220
HLM19-2N	8-13	280-315
HLM21-2N	10-15	400-450
HLM24-2N	12-18	500-560
HLM28-2N	22-30	900-1000
HLM35-3N	55-70	1800-2000
HLM42-4N	70-100	2500-2800
HLM46-4N	85-135	3150-3800
HLM53-4N	130-165	4500-5000

Note: Slag grindability (Bond) index ≤25kw/t; Steel slag grindability (Bond) index ≤30kw/t; The production of steel slag is reduced by about 30-40% when it is ground.

Specifications	Capacity(t/h)	Product fineness		The raw material moisture	Main motor power(kW)
Specifications	Capacity(t/h)	≤80μm	≤2mm	The raw material moisture	Main motor power(kW)
HLM17-2Y	12-20	≥30%	≥90%	≤3%	200
HLM19-2Y	18-25				280
HLM21-2Y	25-35				400
HLM24-2Y	30-45				500
HLM28-2Y	60-80				900
HLM35-3Y	125-165				1800
HLM42-4Y	200-230				2500
HLM46-4Y	250-300				3150
HLM53-4Y	360-420				4500

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Specifications	Capacity(t/h)	Main motor power(kW)
HLM17-2Y	12-20	200
HLM19-2Y	18-25	280
HLM21-2Y	25-35	400
HLM24-2Y	30-45	500
HLM28-2Y	60-80	900
HLM35-3Y	125-165	1800
HLM42-4Y	200-230	2500
HLM46-4Y	250-300	3150
HLM53-4Y	360-420	4500

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Specifications	Capacity(t/h)	Specific surface area	The raw material moisture	The finished product moisture	Main motor power(kW)
HLM19S	8-13	≥380㎡/kg	≤5%	≤1%	280-315
HLM21S	11-18				400-450
HLM24S	15-20				500-560
HLM28S	28-35				900-1000
HLM35S	70-80				1800-2000
HLM42S	95-110				2500-2800
HLM46S	130-150				3150-3800
HLM53S	160-200				4500-5000

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Specifications	Capacity(t/h)	Main motor power(kW)
HLM19S	8-13	280-315
HLM21S	11-18	400-450
HLM24S	15-20	500-560
HLM28S	28-35	900-1000
HLM35S	70-80	1800-2000
HLM42S	95-110	2500-2800
HLM46S	130-150	3150-3800
HLM53S	160-200	4500-5000

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Specifications	Feed particle size(mm)	Capacity(t/h)	Product fineness	The raw material moisture	Main motor power(kW)
HLM1200X	≤10	2-6	Screen passing rate of 10-40μm 97%	≤4%	132
HLM1300X	≤10	3-10			220
HLM1500X	≤10	4-13			315
HLM1700X	≤15	7-18			450
HLM1900X	≤15	8-23			560
HLM2200X	≤20	13-35			800
HLM2400X	≤20	15-45			1000

Note: Mohs hardness grade 4 or below

Specifications	Feed particle size(mm)	Capacity(t/h)	Main motor power(kW)
HLM1200X	≤10	2-6	132
HLM1300X	≤10	3-10	220
HLM1500X	≤10	4-13	315
HLM1700X	≤15	7-18	450
HLM1900X	≤15	8-23	560
HLM2200X	≤20	13-35	800
HLM2400X	≤20	15-45	1000

Note: Mohs hardness grade 4 or below
