Air volume handled: 48000-252000 m³/h
Filtration velocity: 0.8-2.0 (m/min)

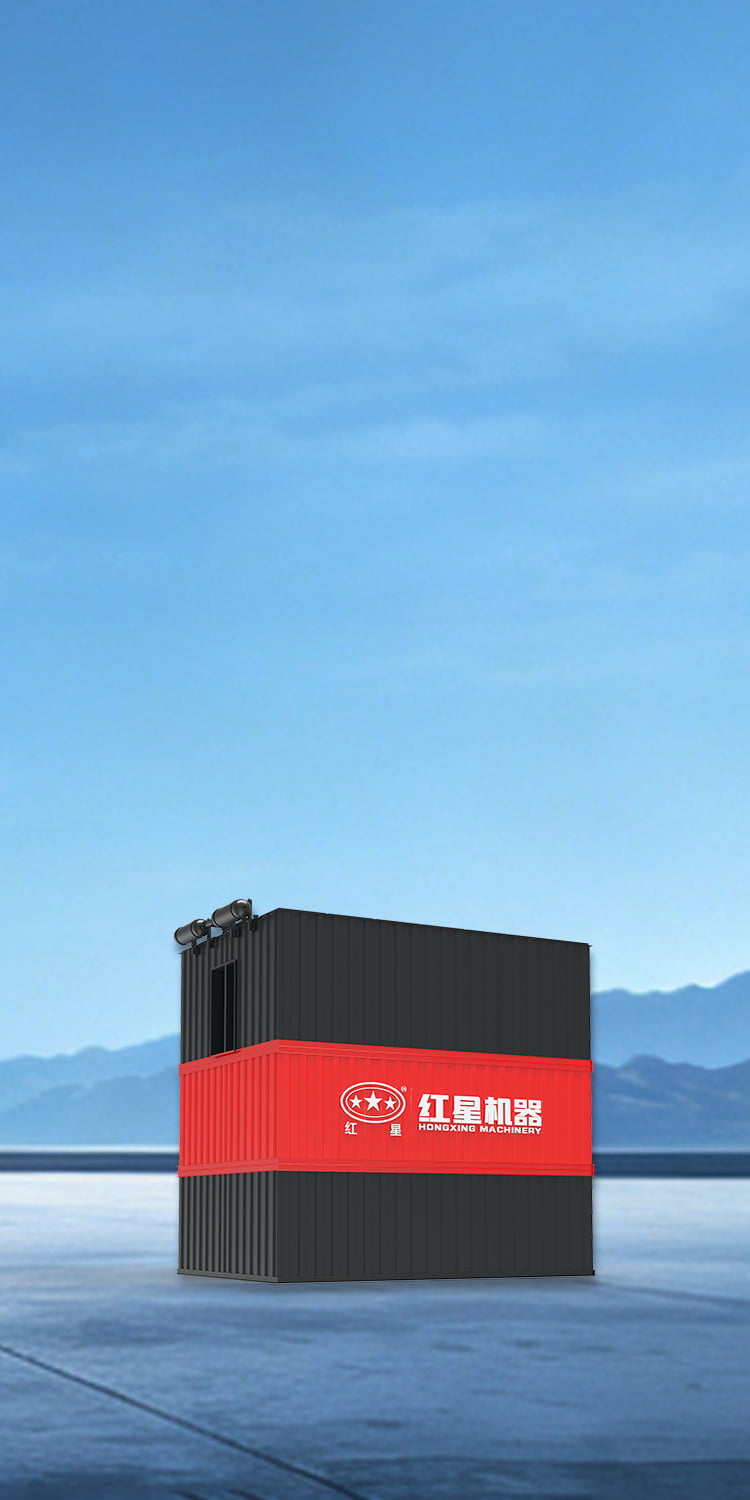

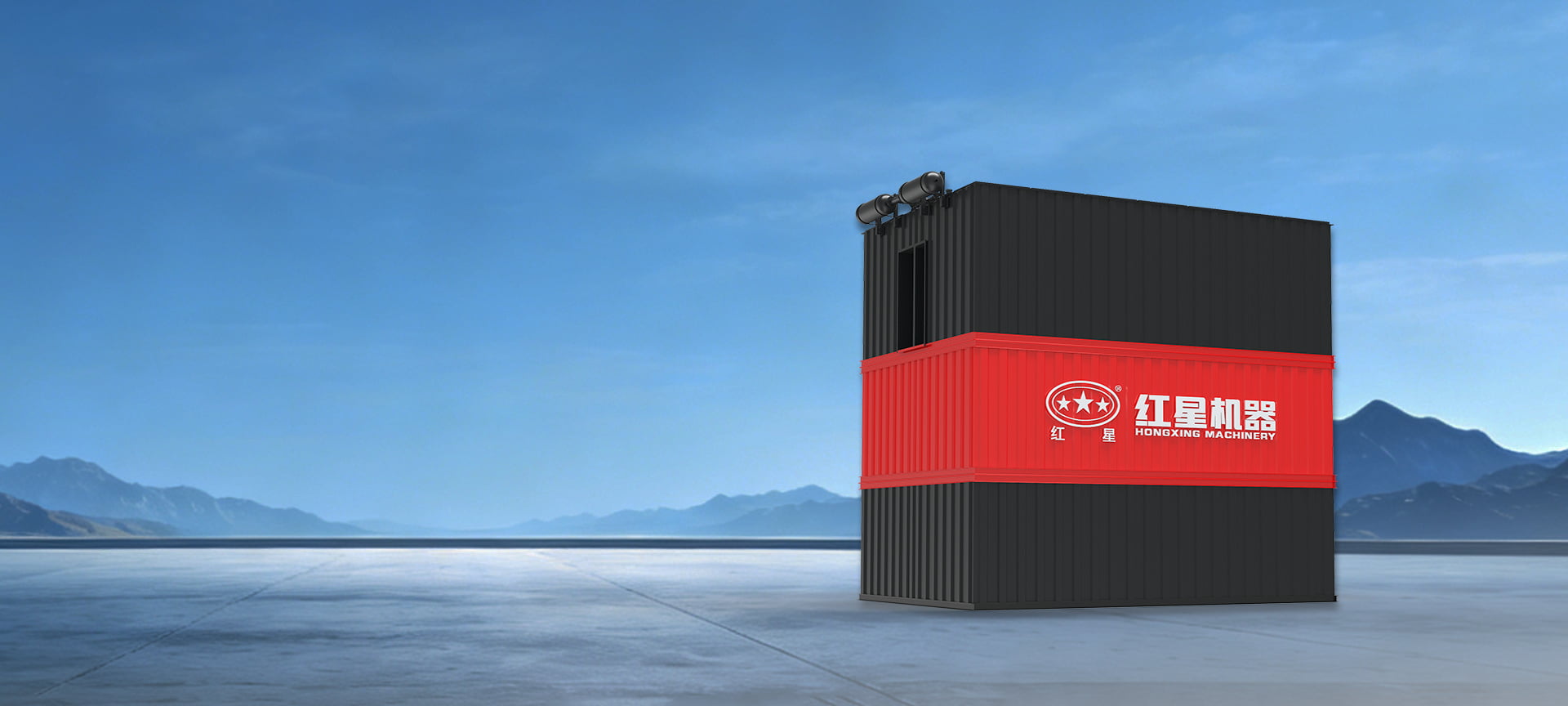

The HLMC series offline pulse jet dust collector is a new type of baghouse dust collector developed based on the conventional pulse jet baghouse dust collector.
The HLMC offline pulse jet dust collector is serving industries such as casting, metallurgy, machinery, power, building materials, mining, cement, and chemicals with its excellent performance.
It is suitable for integrated dust collection in situations with large air volumes, high dust concentrations, and limited space, such as….
| Model | Processing air volume (m³/h) |
filtration velocity (m/min) |
Total filtering area (m²) |
Net filtering area (m²) |
Dust concentration of imported air (g/Nm³) |
Dust concentration of outlet air (g/Nm³) |
Clean compressed air | |
| Pressure (Pa) | Air consumption(Nm³/min) | |||||||
| HLMC1000 | 48000~120000 | 0.8~2.0 | 1100 | 1000 | <1000 | <0.02 | (5~7) x 105 | 2.1 |
| HLMC1400 | 67200~168000 | 1500 | 1400 | <1000 | <0.02 | 2.1 | ||
| HLMC1700 | 81600~204000 | 1820 | 1700 | <1000 | <0.02 | 3 | ||
| HLMC2100 | 100800~252000 | 2280 | 2100 | <1000 | <0.02 | 3 | ||
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Processing air volume (m³/h) |
filtration velocity (m/min) |
Total filtering area (m²) |
Dust concentration of imported air (g/Nm³) |
| HLMC1000 | 48000~120000 | 0.8~2.0 | 1100 | <1000 |
| HLMC1400 | 67200~168000 | 1500 | <1000 | |
| HLMC1700 | 81600~204000 | 1820 | <1000 | |
| HLMC2100 | 100800~252000 | 2280 | <1000 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
