Feed size: ≤280mm
Capacity: 81-1100t/h

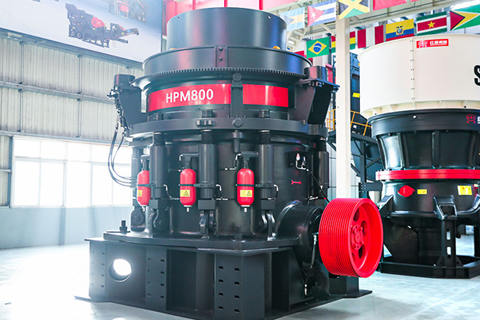

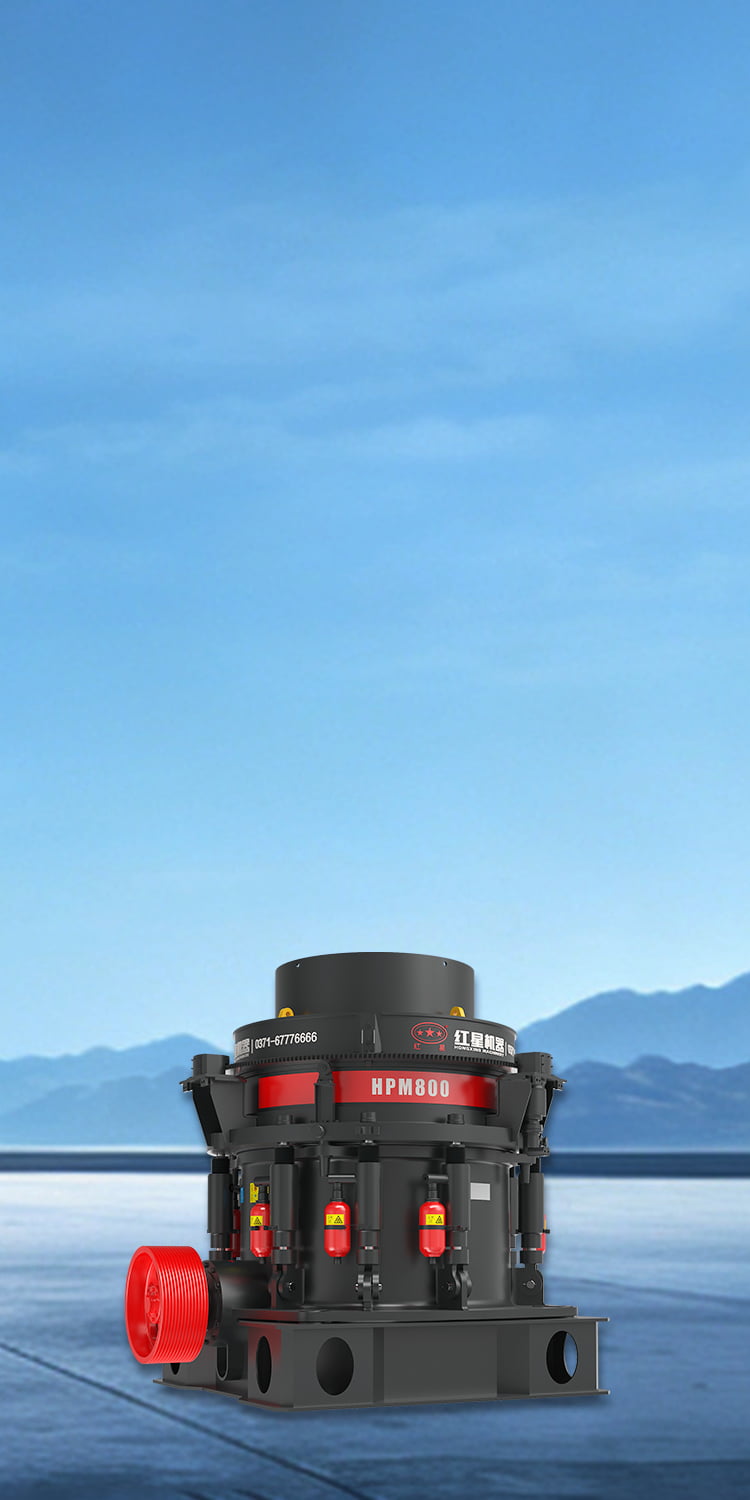

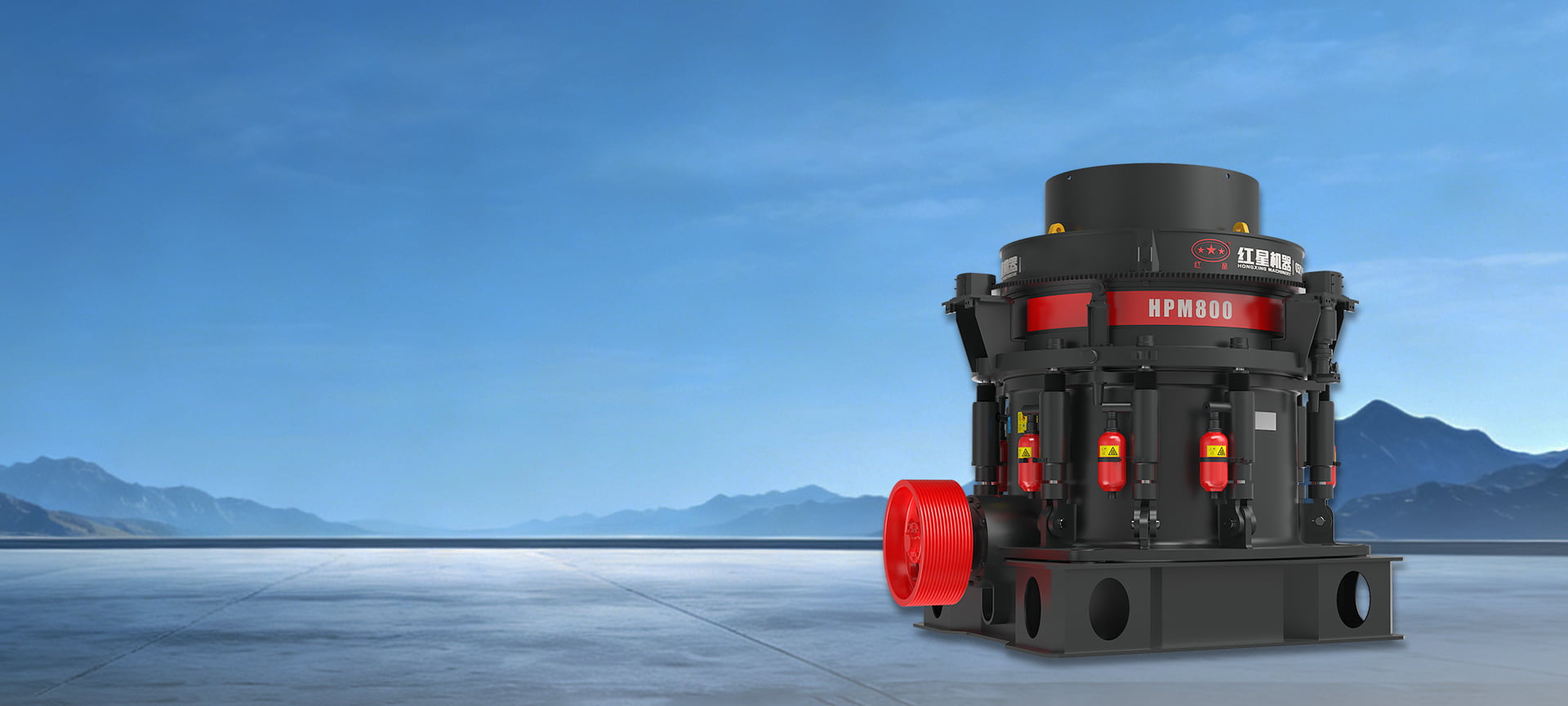

The HPM series multi-cylinder cone crusher is a piece of equipment used for crushing high-hardness materials such as granite, basalt, and quartz, where strict requirements are placed on the particle shape of the product.
The crushed stones are cubic in shape, resulting in better particle size.
Equipped with a new generation of intelligent control and internet-connected control systems, it can achieve automated production.
Medium, fine, and ultra-fine crushing chambers are available to meet different production needs.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
The large eccentricity and high swing frequency design allows the equipment to operate at lower speeds, altering the product's gradation to produce less fine material, resulting in higher output and a larger crushing ratio.
The HPM series cone crusher utilizes a layered crushing principle, producing uniform particle size and a cubic shape, thus improving product quality.
Employs Siemens PLC
All main unit assemblies can be disassembled from the top or side, making operation more convenient and efficient, saving manpower and time, and reducing maintenance costs.
Global coverage, consistent quality, trusted by customers worldwide.
| Model | Cavities | Feeding Size (mm) |
Maximum Feeding Size (mm) |
Minimum Discharging Size (mm) |
Processing Capacity (t/h) |
Power (kw) |
| SC840i | C1 | 431 | 345 | 25 | 230-659 | 315 |
| C2 | 345 | 275 | 22 | 212-645 | ||
| SH830i | F1 | 211 | 169 | 13 | 113-283 | 250 |
| F2 | 93 | 74 | 8 | 84-212 | ||
| F3 | 61 | 49 | 5 | 61-139 | ||
| SH840i | F1 | 250 | 200 | 16 | 162-371 | 315 |
| F2 | 159 | 127 | 16 | 187-406 | ||
| F3 | 73 | 58 | 10 | 126-232 | ||
| SH860i | F1 | 315 | 252 | 16 | 259-799 | 500 |
| F2 | 169 | 135 | 16 | 281-867 | ||
| SH865i | F3 | 85 | 68 | 10 | 179-468 | |
| SH870i | F1 | 350 | 280 | 25 | 392-1173 | 630 |
| F2 | 184 | 147 | 19 | 351-1195 | ||
| F3 | 99 | 79 | 13 | 236-747 | ||
| SH890i | F1 | 428 | 342 | 25 | 488-1670 | 800 |
| F2 | 302 | 242 | 22 | 524-1789 | ||
| F3 | 219 | 175 | 19 | 460-1677 | ||
| SH895i | F4 | 112 | 90 | 13 | 291-910 | |
| F5 | 89 | 71 | 10 | 258-839 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cavities | Feeding Size (mm) |
Processing Capacity (t/h) |
| SC840i | C1 | 431 | 230-659 |
| C2 | 345 | 212-645 | |
| SH830i | F1 | 211 | 113-283 |
| F2 | 93 | 84-212 | |
| F3 | 61 | 61-139 | |
| SH840i | F1 | 250 | 162-371 |
| F2 | 159 | 187-406 | |
| F3 | 73 | 126-232 | |
| SH860i | F1 | 315 | 259-799 |
| F2 | 169 | 281-867 | |
| SH865i | F3 | 85 | 179-468 |
| SH870i | F1 | 350 | 392-1173 |
| F2 | 184 | 351-1195 | |
| F3 | 99 | 236-747 | |
| SH890i | F1 | 428 | 488-1670 |
| F2 | 302 | 524-1789 | |
| F3 | 219 | 460-1677 | |
| SH895i | F4 | 112 | 291-910 |
| F5 | 89 | 258-839 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
SC Single Cylinder Cone Crusher Medium Crushing Series
| Model | Cavities | Feeding Size （mm） |
Maximum Feeding Size （mm） |
Minimum Discharging Size （mm） |
Power （kw） |
Capacity （t/h） |
| SC100S | C1 | 240 | 175 | 22 | 90 | 85-170 |
| C2 | 200 | 160 | 19 | 70-130 | ||
| SC160S | C1 | 360 | 290 | 25 | 160 | 125-345 |
| C2 | 300 | 240 | 22 | 108-305 | ||
| SC250S | C1 | 450 | 360 | 35 | 250 | 265-524 |
| C2 | 400 | 320 | 29 | 225-448 | ||
| SC315S | C1 | 560 | 450 | 41 | 315 | 349-1050 |
| C2 | 500 | 400 | 38 | 318-892 | ||
| SC450S | C1 | 600 | 480 | 44 | 450 | 498-1500 |
| C2 | 480 | 385 | 41 | 454-1274 |
SC Single Cylinder Cone Crusher Fine Crushing Series
| Model | Cavities | Feeding Size （mm） |
Maximum Feeding Size （mm） |
Minimum Discharging Size （mm） |
Power （kw） |
Capacity （t/h） |
| SC100 | F1 | 150 | 120 | 10 | 90 | 45-135 |
| F2 | 90 | 70 | 10 | 43-118 | ||
| F3 | 50 | 40 | 6 | 25-40 | ||
| SC160 | F1 | 200 | 160 | 13 | 160 | 69-215 |
| F2 | 115 | 90 | 10 | 57-184 | ||
| F3 | 75 | 60 | 8 | 70-90 | ||
| SC250 | F1 | 240 | 190 | 16 | 250 | 116-396 |
| F2 | 140 | 110 | 13 | 97-346 | ||
| F3 | 70 | 55 | 9 | 90-251 | ||
| SC315 | F1 | 275 | 220 | 32 | 315 | 177-662 |
| F2 | 215 | 170 | 29 | 209-643 | ||
| F3 | 175 | 140 | 29 | 162-552 | ||
| F4 | 85 | 70 | 19 | 175-325 | ||
| SC560 | F1 | 300 | 240 | 22 | 560 | 448-1512 |
| F2 | 195 | 155 | 19 | 380-1373 | ||
| F3 | 90 | 70 | 13 | 357-912 | ||
| SC750 | F1 | 370 | 295 | 25 | 750 | 394-2181 |
| F2 | 300 | 240 | 19 | 342-2020 | ||
| F3 | 230 | 185 | 16 | 267-1814 | ||
| F4 | 120 | 95 | 13 | 248-1165 | ||
| F5 | 85 | 70 | 10 | 185-1170 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
SC Single Cylinder Cone Crusher Medium Crushing Series
| Model | Cavities | Feeding Size （mm） |
Capacity （t/h） |
| SC100S | C1 | 240 | 85-170 |
| C2 | 200 | 70-130 | |
| SC160S | C1 | 360 | 125-345 |
| C2 | 300 | 108-305 | |
| SC250S | C1 | 450 | 265-524 |
| C2 | 400 | 225-448 | |
| SC315S | C1 | 560 | 349-1050 |
| C2 | 500 | 318-892 | |
| SC450S | C1 | 600 | 498-1500 |
| C2 | 480 | 454-1274 |
SC Single Cylinder Cone Crusher Fine Crushing Series
| Model | Cavities | Feeding Size （mm） |
Capacity （t/h） |
| SC100 | F1 | 150 | 45-135 |
| F2 | 90 | 43-118 | |
| F3 | 50 | 25-40 | |
| SC160 | F1 | 200 | 69-215 |
| F2 | 115 | 57-184 | |
| F3 | 75 | 70-90 | |
| SC250 | F1 | 240 | 116-396 |
| F2 | 140 | 97-346 | |
| F3 | 70 | 90-251 | |
| SC315 | F1 | 275 | 177-662 |
| F2 | 215 | 209-643 | |
| F3 | 175 | 162-552 | |
| F4 | 85 | 175-325 | |
| SC560 | F1 | 300 | 448-1512 |
| F2 | 195 | 380-1373 | |
| F3 | 90 | 357-912 | |
| SC750 | F1 | 370 | 394-2181 |
| F2 | 300 | 342-2020 | |
| F3 | 230 | 267-1814 | |
| F4 | 120 | 248-1165 | |
| F5 | 85 | 185-1170 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cavities | Max.Feeding Size(mm) | Minimum Discharging Size(mm) | Processing Capacity(t/h) | Speed(r/m) | Power(kW) |
| HPM200 | C1 | 185 | 19 | 150-250 | 750-1200 | 160 |
| C2 | 125 | 17 | 140-250 | |||
| C3 | 95 | 13 | 120-250 | |||
| F1 | 76 | 10 | 90-210 | |||
| F2 | 54 | 6 | 80-210 | |||
| F3 | 23 | 5 | 70-210 | |||
| F4 | 10 | 6 | 80-210 | |||
| HPM300 | C1 | 235 | 25 | 230-445 | 700-1200 | 220 |
| C2 | 211 | 19 | 200-445 | |||
| C3 | 150 | 17 | 180-445 | |||
| C4 | 107 | 13 | 150-445 | |||
| F1 | 77 | 10 | 115-260 | |||
| F2 | 53 | 8 | 110-260 | |||
| F3 | 22 | 6 | 105-260 | |||
| F4 | 25 | 6 | 105-260 | |||
| HPM400 | C1 | 299 | 30 | 315-630 | 700-1000 | 315 |
| C2 | 252 | 25 | 295-630 | |||
| C3 | 198 | 20 | 260-630 | |||
| C4 | 111 | 14 | 190-630 | |||
| F1 | 92 | 10 | 140-370 | |||
| F2 | 52 | 8 | 130-370 | |||
| F3 | 51 | 6 | 120-370 | |||
| F4 | 52 | 6 | 120-370 | |||
| HPM500 | C1 | 335 | 30 | 390-790 | 700-950 | 400 |
| C2 | 286 | 25 | 365-790 | |||
| C3 | 204 | 20 | 325-790 | |||
| C4 | 133 | 16 | 280-790 | |||
| F1 | 95 | 13 | 230-450 | |||
| F2 | 57 | 10 | 175-450 | |||
| F3 | 52 | 8 | 165-450 | |||
| F4 | 53 | 6 | 155-450 | |||
| HPM650 | C1 | 328 | 30 | 386-790 | 590-930 | 500 |
| C2 | 279 | 25 | 348-790 | |||
| C3 | 196 | 20 | 300-790 | |||
| F1 | 106 | 13 | 280-530 | |||
| F2 | 52 | 9 | 220-530 | |||
| HPM800 | C1 | 353 | 32 | 545-1100 | 700-950 | 630 |
| C2 | 297 | 32 | 545-1100 | |||
| C3 | 267 | 25 | 495-1100 | |||
| C4 | 219 | 16 | 385-1100 | |||
| F1 | 155 | 13 | 325-730 | |||
| F2 | 92 | 10 | 260-730 | |||
| F3 | 33 | 5 | 200-730 |
| Model | Cavities | Max.Feeding Size(mm) |
Processing Capacity(t/h) |
| HPM200 | C1 | 185 | 150-250 |
| C2 | 125 | 140-250 | |
| C3 | 95 | 120-250 | |
| F1 | 76 | 90-210 | |
| F2 | 54 | 80-210 | |
| F3 | 23 | 70-210 | |
| F4 | 10 | 80-210 | |
| HPM300 | C1 | 235 | 230-445 |
| C2 | 211 | 200-445 | |
| C3 | 150 | 180-445 | |
| C4 | 107 | 150-445 | |
| F1 | 77 | 115-260 | |
| F2 | 53 | 110-260 | |
| F3 | 22 | 105-260 | |
| F4 | 25 | 105-260 | |
| HPM400 | C1 | 299 | 315-630 |
| C2 | 252 | 295-630 | |
| C3 | 198 | 260-630 | |
| C4 | 111 | 190-630 | |
| F1 | 92 | 140-370 | |
| F2 | 52 | 130-370 | |
| F3 | 51 | 120-370 | |
| F4 | 52 | 120-370 | |
| HPM500 | C1 | 335 | 390-790 |
| C2 | 286 | 365-790 | |
| C3 | 204 | 325-790 | |
| C4 | 133 | 280-790 | |
| F1 | 95 | 230-450 | |
| F2 | 57 | 175-450 | |
| F3 | 52 | 165-450 | |
| F4 | 53 | 155-450 | |
| HPM650 | C1 | 328 | 386-790 |
| C2 | 279 | 348-790 | |
| C3 | 196 | 300-790 | |
| F1 | 106 | 280-530 | |
| F2 | 52 | 220-530 | |
| HPM800 | C1 | 353 | 545-1100 |
| C2 | 297 | 545-1100 | |
| C3 | 267 | 495-1100 | |
| C4 | 219 | 385-1100 | |
| F1 | 155 | 325-730 | |
| F2 | 92 | 260-730 | |
| F3 | 33 | 200-730 |
