Feed size: ≤200mm
Separation particle size: 1-130mm

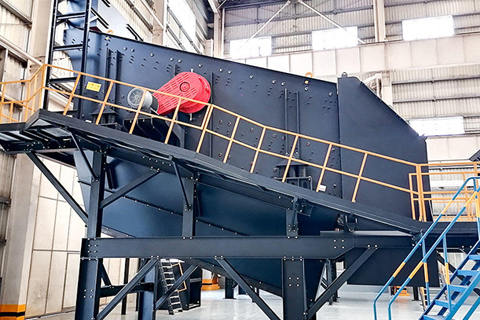

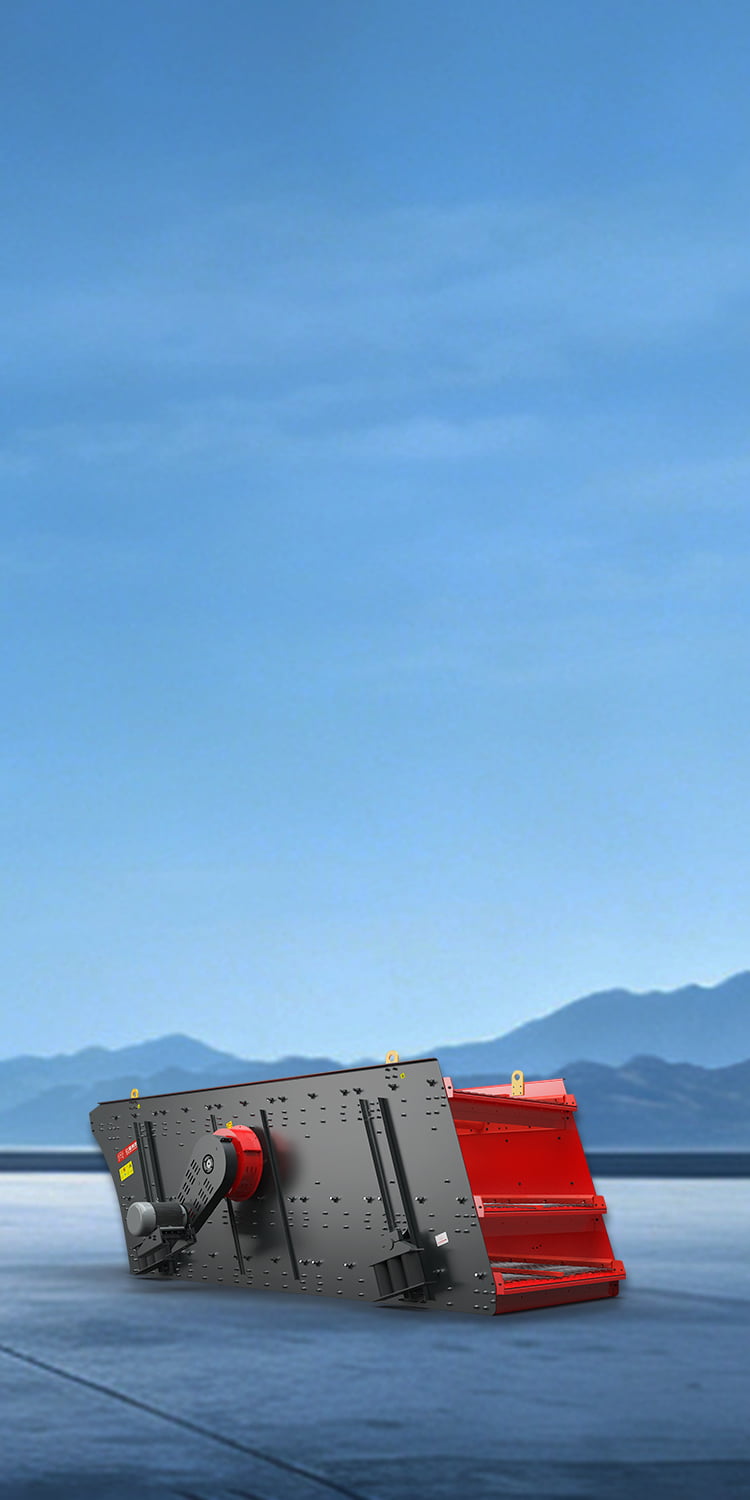

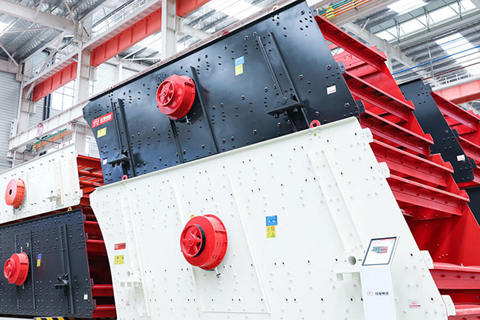

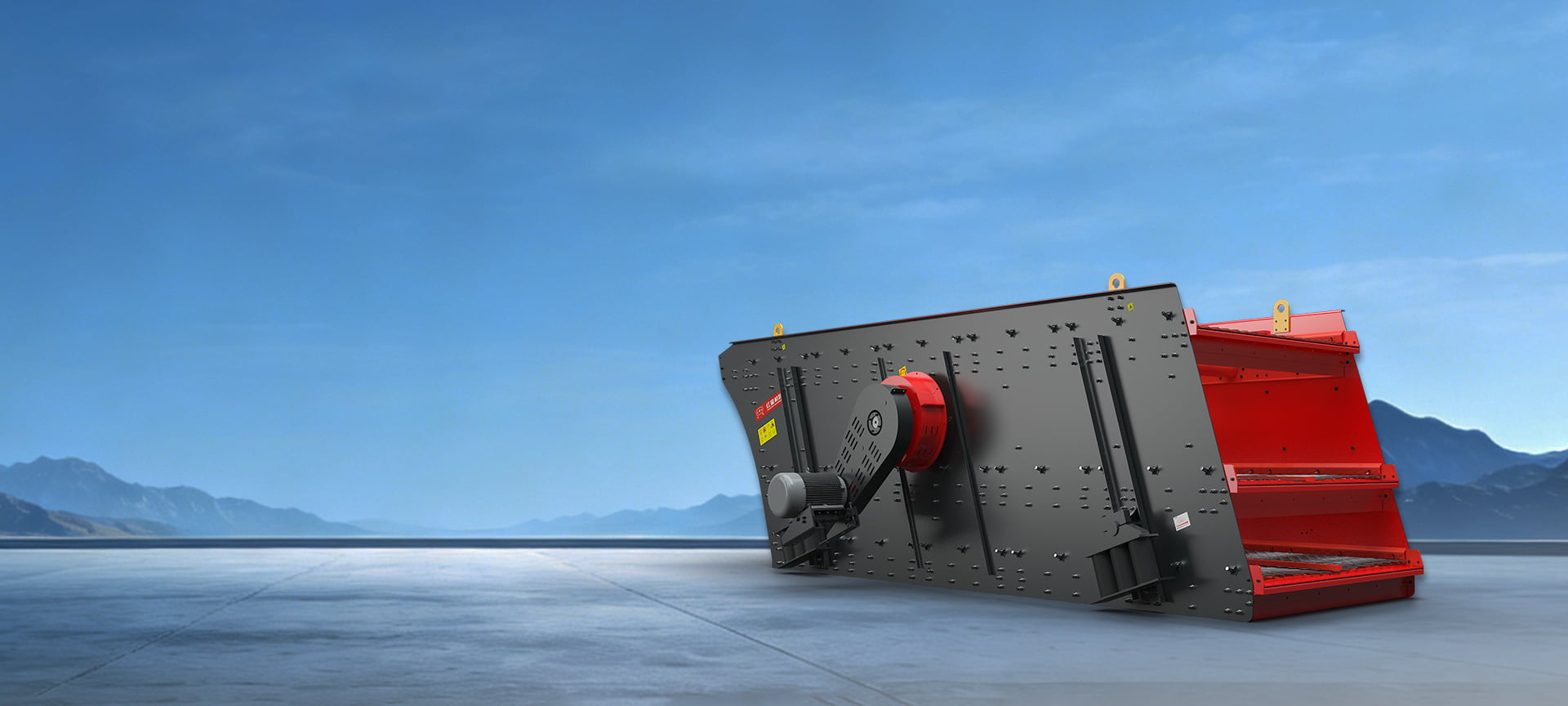

The Hongxing Group HX series circular vibrating inclined screen is a new type of circular vibrating screen product launched by Hongxing Group based on the YA and YK series vibrating screens, and incorporating customer field usage and maintenance experience, specifically designed for heavy-duty applications. It features mature technology and highly interchangeable parts. It boasts high vibration intensity, high structural strength, simple maintenance, and a long service life. It is suitable for various screening operations, including heavy-duty, medium-duty, and fine screening. This screening machine is ideal for processing products after primary and secondary crushing, and can also be used for inspection screening and final product screening in the process.
15°-22° screen inclination angle selection range to better adapt to specific on-site conditions
The vibrator is an eccentric shaft
Thin oil lubricated vibrator, lubricant changed every six months, easy and effortless daily maintenance
Key components are designed with wear-resistant protective layers, allowing for quick replacement after wear and extending equipment lifespan
Equipment speed can be quickly adjusted according to on-site conditions
Uses bearings specifically designed for vibrating equipment, ensuring a longer lifespan and safeguarding your screening process
| Model | Sieve Layer | Sieve obliquity (°) |
Vibrating Frequency (r/min) |
Max.Feeding Size (mm) |
Processing Capacity (t/h) |
Power (kw) |
Mesh Size (mm) |
Double Amplitude (mm) |
Dimensions (LxWxH) (mm) |
| 2HX1545 | 2 | 18 | 780-900 | 200 | 45-500 | 15 | 1-130 | 7-12 | 5380×2350×1550 |
| 3HX1545 | 3 | 18 | 780-900 | 200 | 55-500 | 18.5 | 1-130 | 7-12 | 5575×2350×2130 |
| 4HX1545 | 4 | 18-20 | 780-900 | 200 | 65-500 | 22 | 1-130 | 7-12 | 5730×2400×2620 |
| 2HX1855 | 2 | 18 | 780-900 | 200 | 55-600 | 18.5 | 1-130 | 7-12 | 5680×2650×1570 |
| 3HX1855 | 3 | 18 | 780-900 | 200 | 65-600 | 22 | 1-130 | 7-12 | 5900×2655×2250 |
| 4HX1855 | 4 | 18-23 | 780-900 | 200 | 75-600 | 22 | 1-130 | 7-12 | 6030×2660×2640 |
| 2HX2165 | 2 | 18 | 780-900 | 200 | 65-700 | 30 | 1-130 | 7-12 | 7160×2960×1825 |
| 3HX2165 | 3 | 18 | 780-900 | 200 | 75-700 | 30 | 1-130 | 7-12 | 7400×2980×2505 |
| 4HX2165 | 4 | 18-23 | 780-900 | 200 | 85-700 | 37 | 1-130 | 7-12 | 7450×2985×2635 |
| 2HX2465 | 2 | 18 | 780-900 | 200 | 80-800 | 37 | 1-130 | 7-12 | 7160×3270×1825 |
| 3HX2465 | 3 | 18 | 780-900 | 200 | 90-800 | 37 | 1-130 | 7-12 | 7400×3280×2505 |
| 4HX2465 | 4 | 18-23 | 780-900 | 200 | 100-800 | 37 | 1-130 | 7-12 | 7450×3285×2635 |

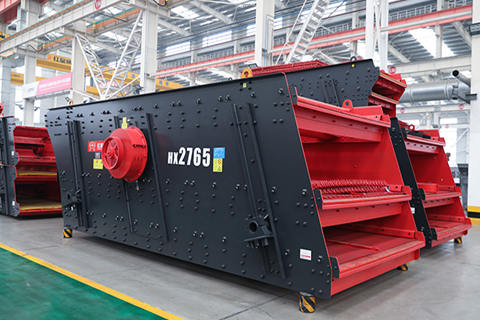

| 2HX2765 | 2 | 18 | 780-900 | 200 | 100-900 | 37 | 1-130 | 7-12 | 7180×3585×1945 |
| 3HX2765 | 3 | 18 | 780-900 | 200 | 110-900 | 45 | 1-130 | 7-12 | 7390×3600×2585 |
| 4HX2765 | 4 | 18-23 | 780-900 | 200 | 120-900 | 45 | 1-130 | 7-12 | 7480×3600×2855 |
| 2HX3065 | 2 | 18 | 780-900 | 200 | 110-1200 | 37 | 1-130 | 7-12 | 7180×3885×1945 |
| 3HX3065 | 3 | 18 | 780-900 | 200 | 120-1200 | 45 | 1-130 | 7-12 | 7390×3900×2585 |
| 4HX3065 | 4 | 18-23 | 780-900 | 200 | 130-1200 | 45 | 1-130 | 7-12 | 7480×3900×2855 |
| 2HX3074 | 2 | 18 | 780-900 | 200 | 120-1300 | 37 | 1-130 | 7-12 | 3190 3 10×1985 |
| 3HX3074 | 3 | 18 | 780-900 | 200 | 130-1300 | 45 | 1-130 | 7-12 | 8415×3910×2675 |
| 2HX3084 | 2 | 18 | 780-900 | 200 | 130-1300 | 37 | 1-130 | 7-12 | 9200×3900×1985 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Sieve Layer | Sieve obliquity (°) |
Processing Capacity (t/h) |
| 2HX1545 | 2 | 18 | 45-500 |
| 3HX1545 | 3 | 18 | 55-500 |
| 4HX1545 | 4 | 18-20 | 65-500 |
| 2HX1855 | 2 | 18 | 55-600 |
| 3HX1855 | 3 | 18 | 65-600 |
| 4HX1855 | 4 | 18-23 | 75-600 |
| 2HX2165 | 2 | 18 | 65-700 |
| 3HX2165 | 3 | 18 | 75-700 |
| 4HX2165 | 4 | 18-23 | 85-700 |
| 2HX2465 | 2 | 18 | 80-800 |
| 3HX2465 | 3 | 18 | 90-800 |
| 4HX2465 | 4 | 18-23 | 100-800 |
| 2HX2765 | 2 | 18 | 100-900 |
| 3HX2765 | 3 | 18 | 110-900 |
| 4HX2765 | 4 | 18-23 | 120-900 |
| 2HX3065 | 2 | 18 | 110-1200 |
| 3HX3065 | 3 | 18 | 120-1200 |
| 4HX3065 | 4 | 18-23 | 130-1200 |
| 2HX3074 | 2 | 18 | 120-1300 |
| 3HX3074 | 3 | 18 | 130-1300 |
| 2HX3084 | 2 | 18 | 130-1300 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
