Feed size: ≤120mm
Capacity: 8-390t/h

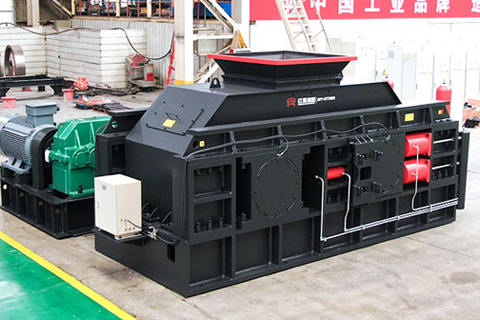

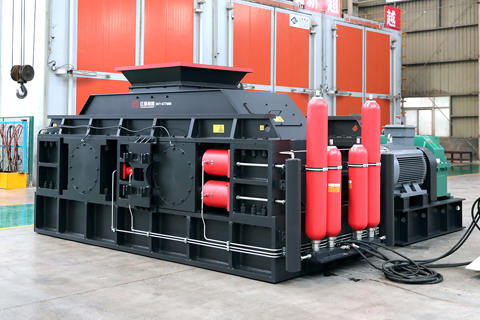

The hydraulic double roller mill is a new type of roller crusher that integrates various advanced technologies.
Through excellent electromechanical-hydraulic integrated design, the equipment can operate continuously, stably and reliably.
In sand and gravel aggregate and grinding systems, it can increase output by 30%-40% and reduce total energy consumption by 20%-30%.
In industries such as mineral processing, refractory materials, and building materials, it can finely crush materials of various hardnesses.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
Advanced materials, reasonable structure, wear-resistant and impact-resistant, combined with an automatic lubrication device to greatly extend the service life of parts.
Easy to operate, the overall structure of the equipment is compact, and it runs smoothly, with high efficiency and energy saving. Compared with other crushing systems with equivalent performance, it can significantly reduce investment and operating costs, giving it a great advantage.
Hydraulic adjustment keeps the roller skin gap stable between 1-40mm, thereby controlling the output particle size.
When uncrushable materials enter between the rollers, the rollers automatically avoid them and then automatically return to the set gap.
| Model | Roller Diameter (mm） | Roller Width (mm) | Maximum Feed Size(mm) | Corresponding processing capacity of discharge port(t/h) | Power(kw) | ||
| 5mm | 10mm | 15mm | |||||
| 2PGY1008 | ø 1000 | 800 | ≤40 | 20-80 | 30-110 | 50-150 | 2×55 |
| 2PGY1210 | ø 1200 | 1000 | ≤60 | 25-100 | 50-180 | 80-240 | 2×90 |
| 2PGY1510 | ø 1500 | 1000 | ≤80 | 30-130 | 60-240 | 90-330 | 2×160 |
| 2PGY1810 | ø 1800 | 1000 | ≤100 | 40-170 | 80-320 | 120-450 | 2×250 |
| 2PGY2012 | ø 2000 | 1200 | ≤120 | 60-220 | 110-400 | 170-600 | 2×315 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Maximum Feed Size(mm) | Corresponding processing capacity of discharge port(t/h) | ||
| 5mm | 10mm | 15mm | ||
| 2PGY1008 | ≤40 | 20-80 | 30-110 | 50-150 |
| 2PGY1210 | ≤60 | 25-100 | 50-180 | 80-240 |
| 2PGY1510 | ≤80 | 30-130 | 60-240 | 90-330 |
| 2PGY1810 | ≤100 | 40-170 | 80-320 | 120-450 |
| 2PGY2012 | ≤120 | 60-220 | 110-400 | 170-600 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
