Feed size: ≤150mm
Separation particle size: 2-130mm

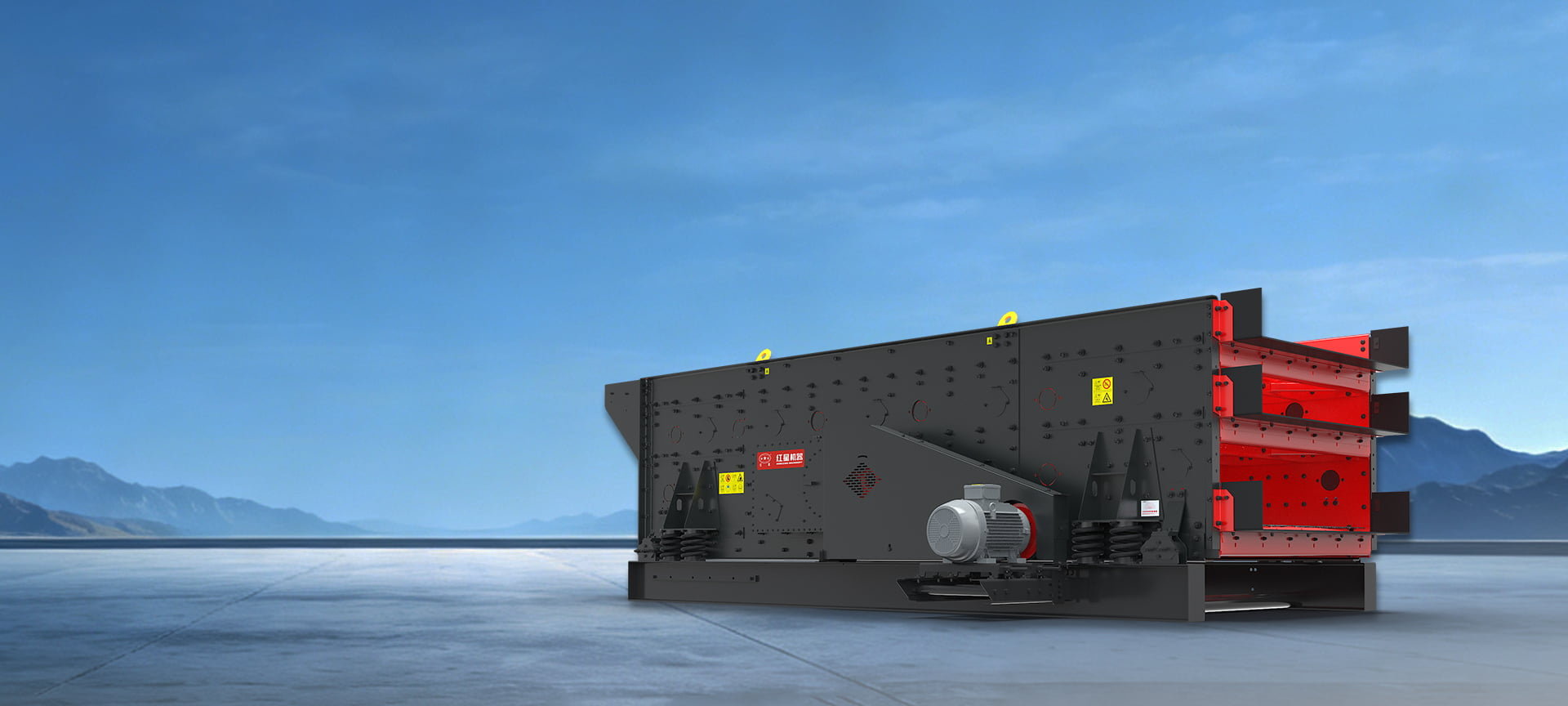

The triaxial elliptical vibrating screen is a screening device designed and developed by integrating the advantages of circular and linear vibrating screens.
Its motion trajectory is elliptical, preventing clogging and providing high screening accuracy, making it suitable for screening processes requiring high material precision.
Integrates the advantages of both circular and linear vibrating screen vibration trajectories
The three-axis vibrator uses nickel-metal alloy gears for linkage, and the external eccentric block allows for easy adjustment
Vibration intensity can reach 6.0G, resulting in better screening performance and preventing mesh clogging
Suitable for applications with limited installation height
| Model | Amplitude (mm) |
Rotating speed (r/min) |
Maximum feeding size (mm) |
Processing Capacity (t/h) |
Power (kw) |
| 2LH1860 | 14-18 | 645-875 | 150 | 160-320 | 30 |
| 3LH1860 | 14-18 | 645-875 | 150 | 160-320 | 30 |
| 2LH2060 | 14-18 | 645-875 | 150 | 200-385 | 30 |
| 3LH2060 | 14-18 | 645-875 | 150 | 200-385 | 30 |
| 2LH2460 | 14-18 | 645-875 | 150 | 240-462 | 37 |
| 3LH2460 | 14-18 | 645-875 | 150 | 240-462 | 37 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Rotating speed (r/min) |
Processing Capacity (t/h) |
Power (kw) |
| 2LH1860 | 645-875 | 160-320 | 30 |
| 3LH1860 | 645-875 | 160-320 | 30 |
| 2LH2060 | 645-875 | 200-385 | 30 |
| 3LH2060 | 645-875 | 200-385 | 30 |
| 2LH2460 | 645-875 | 240-462 | 37 |
| 3LH2460 | 645-875 | 240-462 | 37 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
