Feed size: ≤3mm
Capacity: 10-280t/h

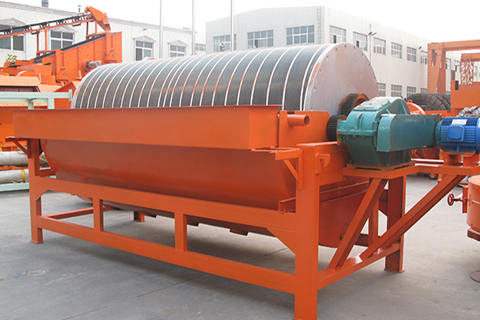

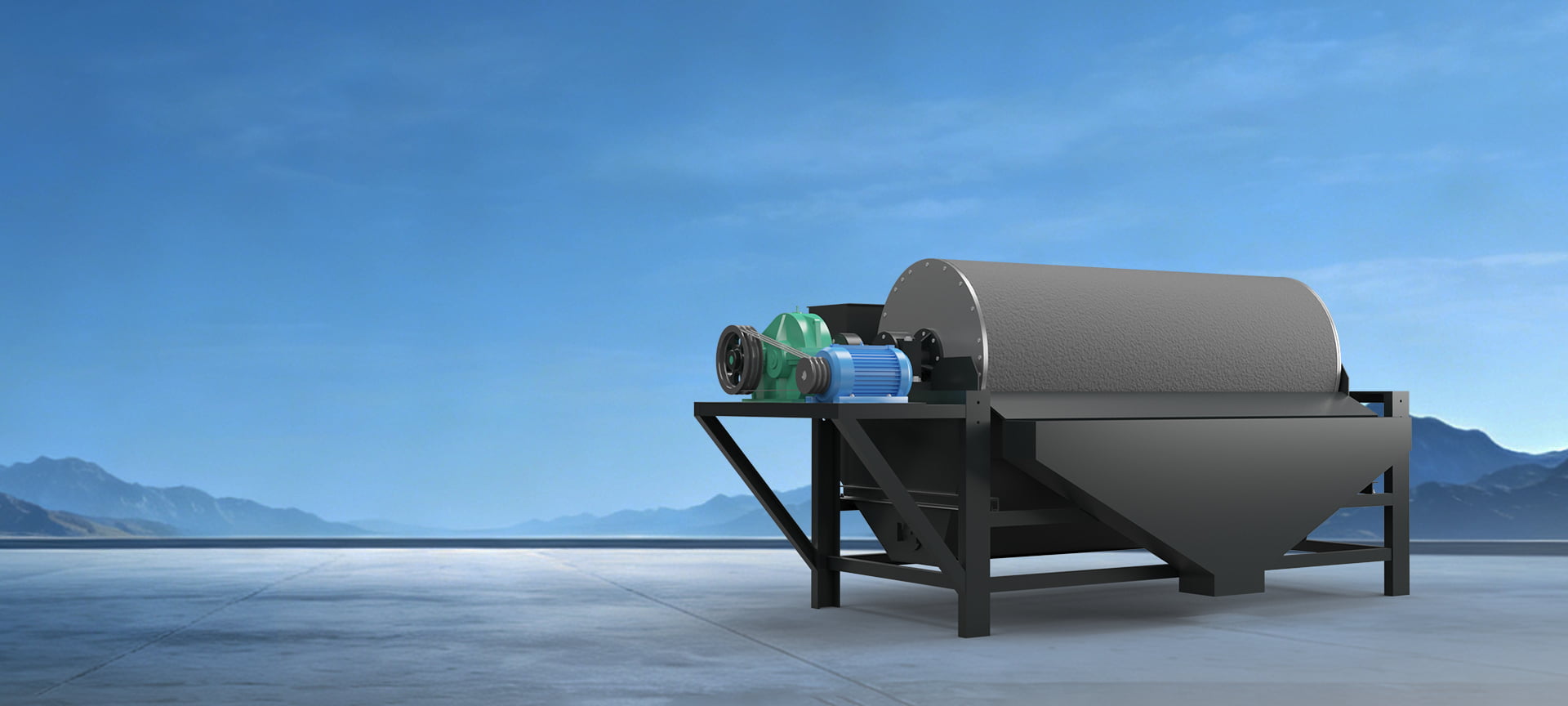

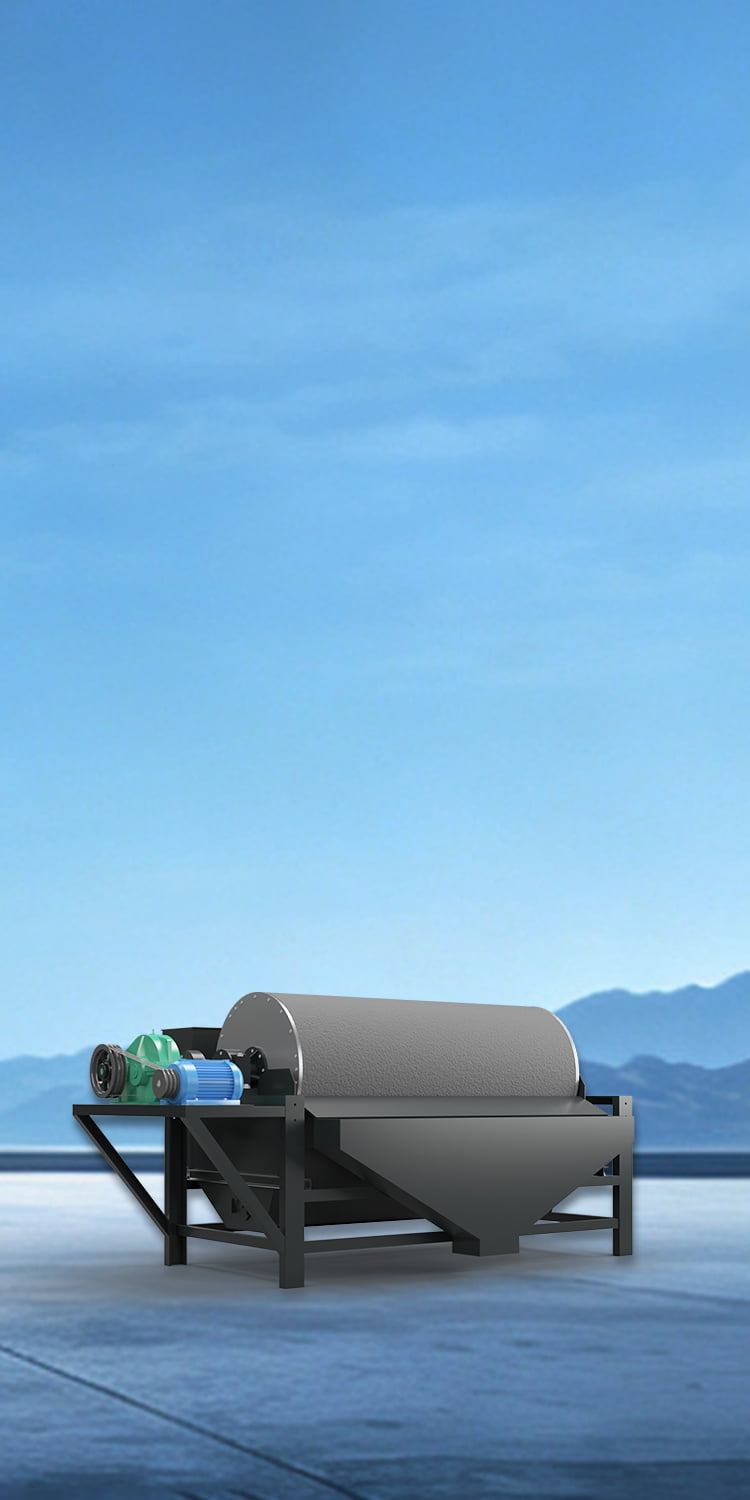

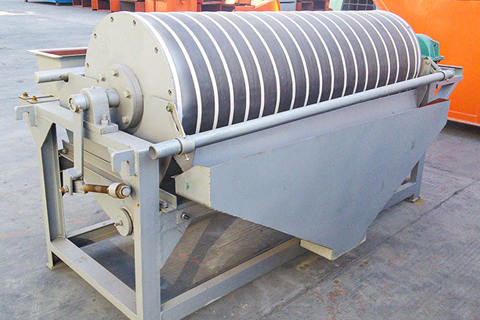

Magnetic separators are suitable for wet magnetic separation of materials such as magnetite, pyrrhotite, roasted ore, and ilmenite with a particle size of less than 3mm.
They are also used for iron removal from coal, non-metallic minerals, and building materials.
The magnetic system of the separator is made of selected ferrite materials or a composite of ferrite and rare earth magnets, with an average magnetic induction intensity of 100-600mT on the drum surface.
Various magnetic separators with different surface intensities, such as concurrent, semi-countercurrent, and countercurrent types, are available to meet user needs.
This product has the advantages of simple structure, large processing capacity, convenient operation, and easy maintenance.
Magnetic separators utilize the differences in specific magnetic coefficients of various minerals to separate magnetic substances in a mixture using magnetic and mechanical forces.
They can be divided into dry magnetic separators and wet magnetic separators according to different operating modes.
Used for iron removal in coal mines, foundry sand, refractory materials, and other industries.
Compared with conventional magnetic separation equipment, the magnetic separator incorporates high-performance permanent magnets in its magnetic system design, ensuring no loss of magnetic properties under high flow conditions.
Used in the ceramics industry to remove iron mixed in porcelain clay, improving the quality of ceramic products.
Used in closed-circuit roasting operations for hematite reduction to separate insufficiently reduced raw ore for re-firing.
| Model | Shell diameter （mm） |
Shell lenght （mm） |
Shell rotation speed（r/min） |
Feeding size （mm） |
Processing capacoty （t/h） |
Power（kw） |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
| CTB1530 | 1500 | 3000 | <14 | 3-0 | 170-280 | 11 |
| Model | Feeding size （mm） |
Processing capacity （t/h） |
| CTB6012 | 2-0 | 10-20 |
| CTB6018 | 2-0 | 15-30 |
| CTB7518 | 2-0 | 20-45 |
| CTB9018 | 3-0 | 40-60 |
| CTB9021 | 3-0 | 45-60 |
| CTB9024 | 3-0 | 45-70 |
| CTB1018 | 3-0 | 50-75 |
| CTB1021 | 3-0 | 50-100 |
| CTB1024 | 3-0 | 60-120 |
| CTB1218 | 3-0 | 80-140 |
| CTB1224 | 3-0 | 85-180 |
| CTB1230 | 3-0 | 100-180 |
| CTB1530 | 3-0 | 170-280 |
