Feed size: ≤700mm
Capacity: 100-520t/h

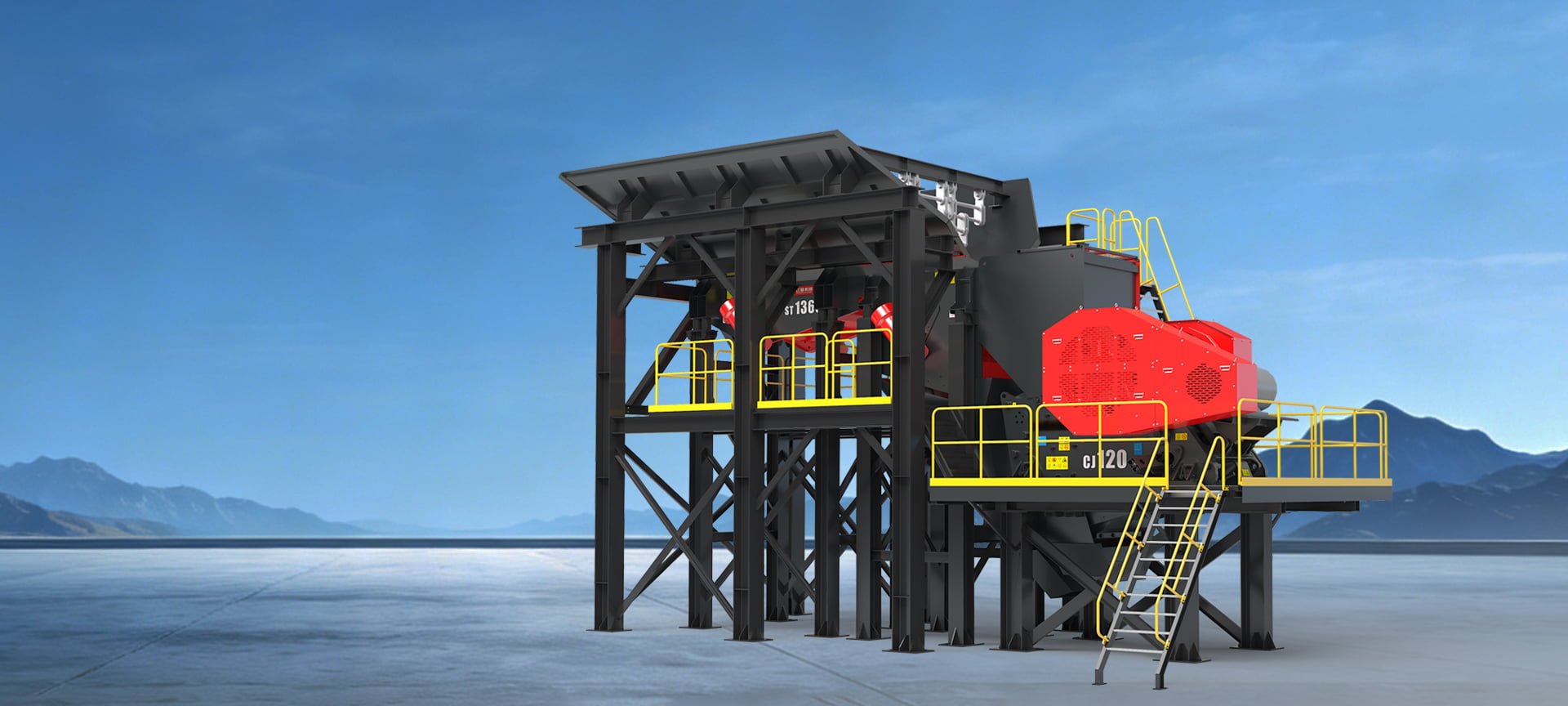

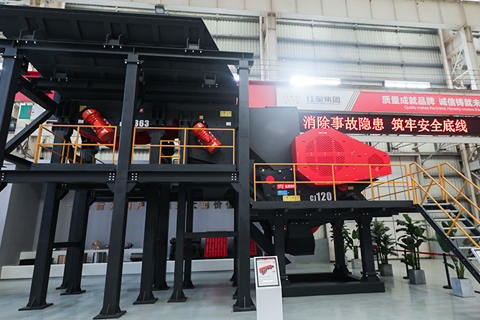

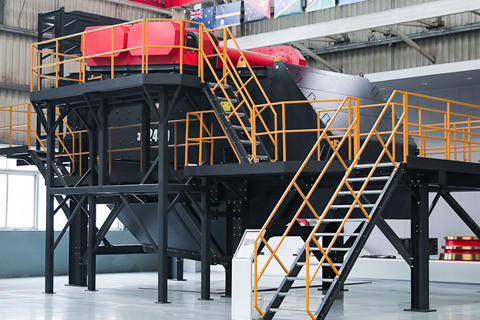

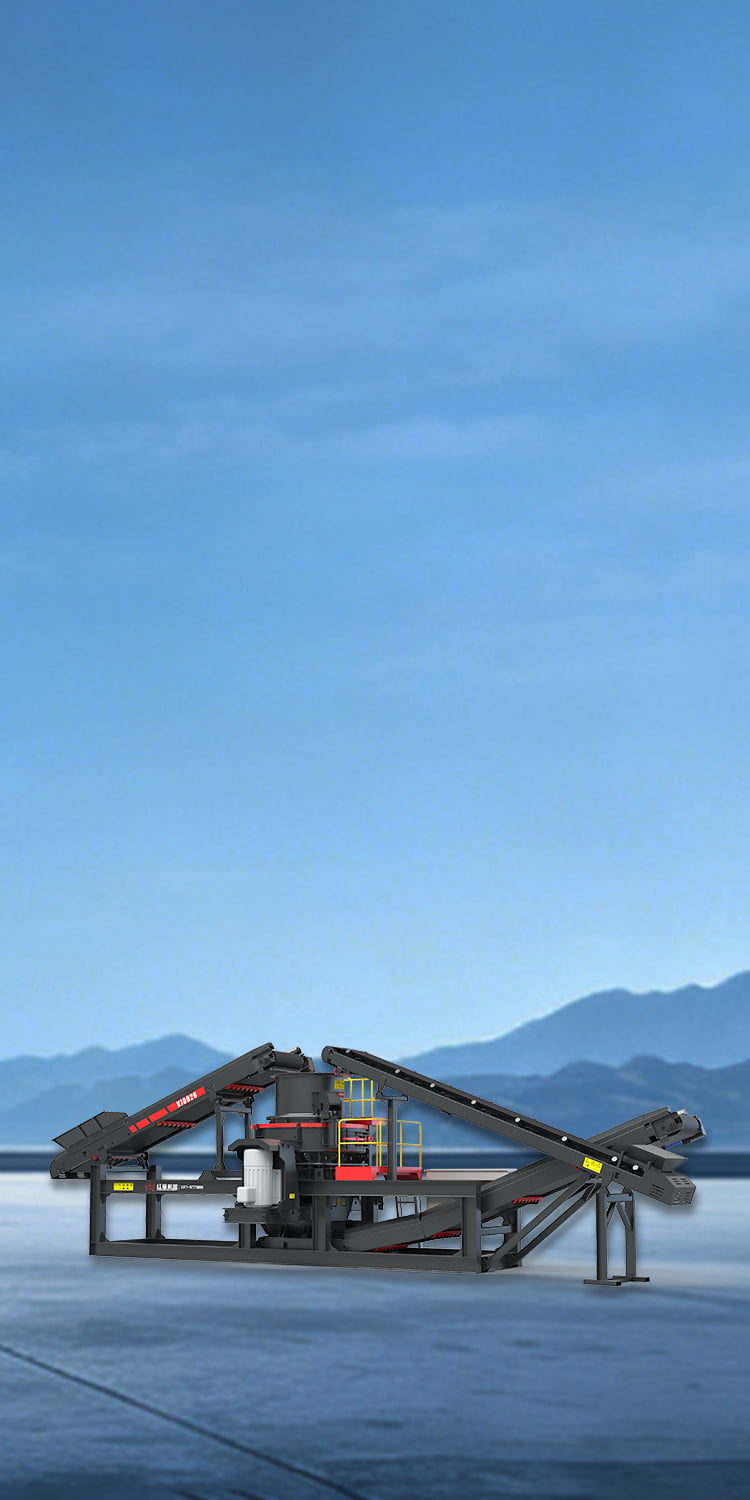

The MP modular plant is a newly developed, comprehensive solution for aggregate crushing and screening.
Featuring a cutting-edge international design concept, the MP plant, combined with Red Star Group's high-quality mainframes, can meet your budget and specific requirements, regardless of your raw materials, site conditions, finished product requirements, or production cycle.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
All modular steel structures are factory-produced, allowing for rapid fabrication. Only a small amount of concrete foundation is needed on-site, shortening the construction cycle and enabling rapid production.
The modular structure primarily uses bolted connections, facilitating on-site assembly and significantly shortening the construction cycle. This structure is also easy to load into containers for transport, reducing freight costs.
All structures are factory-made, requiring only on-site installation, saving on personnel and waste costs associated with on-site fabrication.
The entire solution utilizes 3D modeling, providing high-quality solutions even with limited site conditions. When site constraints are not a factor, this superior solution can effectively reduce your investment.
| Production line code | Maximum Feed Size (mm) |
Capacity (t/h) | Main Configuration | Total Power (kw) |
Floor space (m) |
Note | |||||
| 0-5mm | 0-20mm | 0-32mm | Primary Crushing | Secondary/tertiary Crushing | Screening | ||||||
| Hard rock | MPH1 | 500 | / | 120 | 150 | MU-HDX86 | MU-SC160 | MU-HX2165 | 373 | 45×45 | |
| / | 130 | 160 | MU-HDX86 | MU-SC160 MU-HVI0926 |
MU-HX1545 MU-HX2165 |
717 | 50×70 | plastic | |||
| 100 | / | / | MU-HDX86 | MU-SC160 MU-VSIA7500 |
MU-HX1855 MU-HX2465 |
859 | 50×70 | Sand making | |||
| MPH2 | 500 | / | 180 | 220 | MU-CJ96 | MU-SC250 | MU-HX2465 | 490 | 50×50 | ||
| / | 190 | 230 | MU-CJ96 | MU-SC250 MU-VSIA7400 |
MU-HX2165 MU-HX2465 |
963 | 50×70 | plastic | |||
| 200 | / | / | MU-CJ96 | MU-SC250 MU-VSIA7800 |
MU-HX2165 MU-HX3075 |
1367 | 50×70 | Sand making | |||
| MPH3 | 600 | / | 230 | 350 | MU-CJ106 | MU-SC315 | MU-HX2765 | 603 | 60×60 | ||
| / | 240 | 360 | MU-CJ106 | MU-SC315 MU-VSIA7630 |
MU-HX2165 MU-HX3065 |
1260 | 60×70 | plastic | |||
| MPH5 | 700 | / | 400 | 520 | MU-CJ120 | MU-SC315S 2xMU-SC250 |
MU-HX2465 2×MU-HX2165 |
1290 | 70×80 | ||
| Medium hard Soft rock |
MPM1 | 500 | / | 120 | 160 | MU-HDX86 | MU-CI1110 | MU-HX1855 | 363 | 45×45 | |
| MPM2 | 500 | / | 160 | 210 | MU-CJ96 | MU-CI1213 | MU-HX2165 | 449 | 50×50 | ||
| MPM3 | 600 | / | 210 | 300 | MU-CJ106 | MU-CI1316 | MU-HX2465 | 535 | 60×60 | ||
| MPM4 | 700 | / | 320 | 400 | MU-CJ120 | MU-CI1521 | MU-HX3085 | 750 | 60×70 | ||
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Production line code | Maximum Feed Size (mm) |
Capacity (t/h) |
|||
| 0-5mm | 0-20mm | 0-32mm | |||
| Hard rock | MPH1 | 500 | / | 120 | 150 |
| / | 130 | 160 | |||
| 100 | / | / | |||
| MPH2 | 500 | / | 180 | 220 | |
| / | 190 | 230 | |||
| 200 | / | / | |||
| MPH3 | 600 | / | 230 | 350 | |
| / | 240 | 360 | |||
| MPH5 | 700 | / | 400 | 520 | |
| Medium hard Soft rock |
MPM1 | 500 | / | 120 | 160 |
| MPM2 | 500 | / | 160 | 210 | |
| MPM3 | 600 | / | 210 | 300 | |
| MPM4 | 700 | / | 320 | 400 | |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Our global service network is ready to provide on-site technical support, genuine parts, and 24/7 assistance for your crushing projects.
