Feed size: ≤800mm
Capacity: 50-300t/h

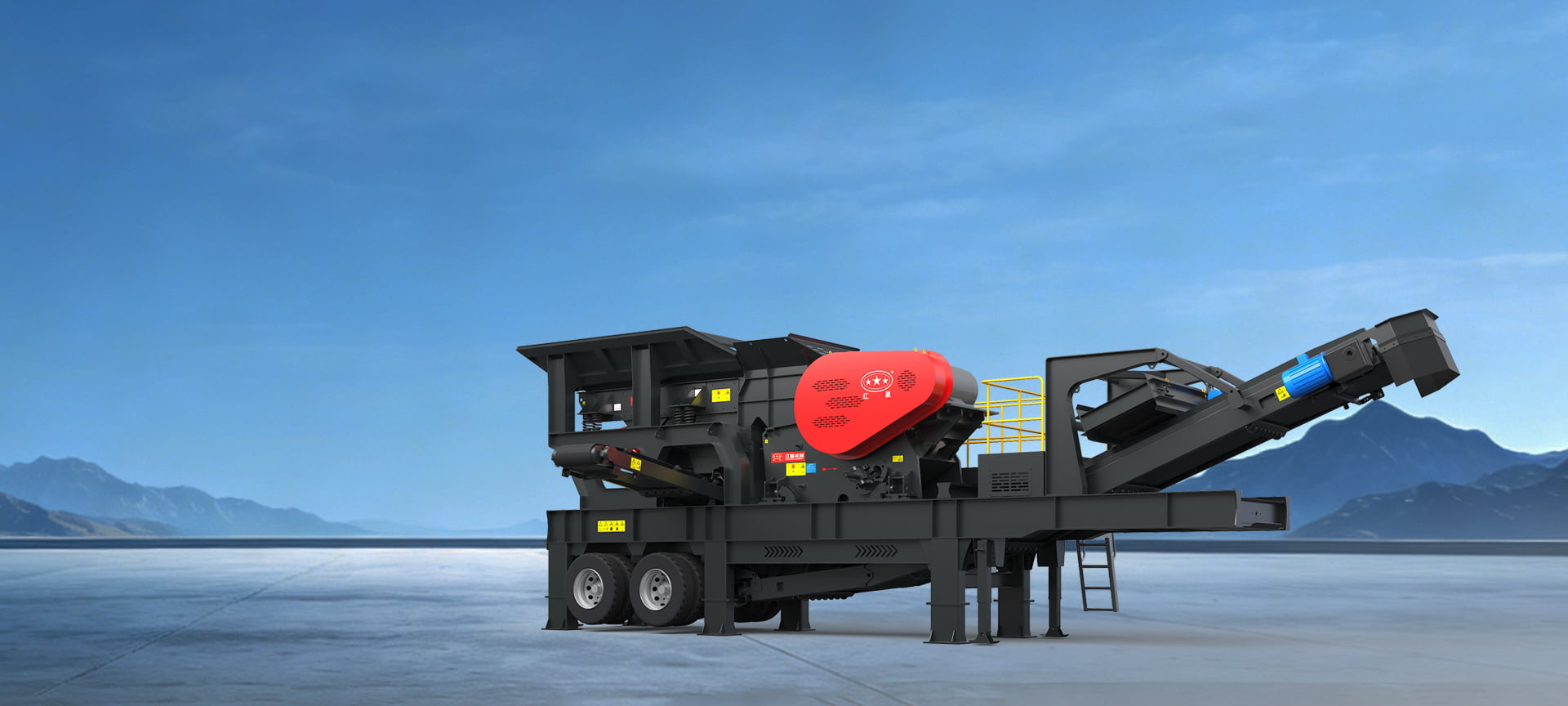

The tire-mounted mobile crusher is a rock and construction waste crushing equipment developed based on the principle of "near-site processing" of materials.
It is designed for tire-mounted mobility, with a high chassis and a small turning radius, making it easy to travel on ordinary roads and even more convenient to navigate the rugged and harsh road environments of the crushing site.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
| Series | Standard Model | On board equipment | On board equipment | Processing Capability (t/h) | Transport dimensions (mm) |
| MOBILE COARSE CRUSHING STATION |
MTN96 | GZDT9538 | CJ96 | 70-200 | 13000x2950x4250 |
| MTN98 | GZDT9538 | HDX98 | 80-200 | 13000x2950x4250 | |
| MTN106 | GZDT1145A | CJ106 | 90-300 | 14000x3000x4400 | |
| MTN110 | GZDT1145A | HDX110 | 120-300 | 14000x3000x4400 | |
| MTN1213C | GZDT9538 | CI1213 | 80-200 | 13000x2950x4250 | |
| MTN1316C | GZDT1145A | CI1316 | 100-300 | 14000x3000x4400 | |
| MOBILE MEDIUM AND FINE CRUSHING STATION |
MTN300 | - | HPM300C1 | 100-200 | 15500x2900x4200 |
| MTN400 | - | HPM400C3 | 150-300 | 16500x3100x4300 | |
| MTN250 | - | SC250F1 | 90-200 | 16500x3100x4300 | |
| MTN1213 | - | CI1213 | 80-200 | 16000x2900x4300 | |
| MTN1316 | - | CI1316 | 100-300 | 16500x3100x4500 | |
| MTN0926 | - | HVI0926 | 85-200 | 16500x3100x4300 | |
| MTN1040 | - | HVI1040 | 120-300 | 16500x3100x4400 | |
| MOBILE SCREENING STATION | MTN1865-3 | - | 3HX1865 | 65-200 | 14500x2900x4000 |
| MTN2165-3 | - | 3HX2165 | 85-300 | 15000x2900x4400 | |
| MOBILE STATION FOR MEDIUM AND FINE CRUSHING AND SCREENING |
MTN300S-3SII | 3HX1865 | HPM300C1 | 100-200 | 15000x3000x4000 |
| MTN300S-3 | 3HX2165 | HPM300C1 | 100-200 | 15000x3000x4000 | |
| MTN400S-3 | 3HX2165 | HPM400C3 | 150-300 | 15000x3000x4000 | |
| MTNG400S-3SII | 3HX1865 | GYS400C1 | 100-200 | 15000x3000x4000 | |
| MTNG400S-3 | 3HX2165 | GYS400C1 | 100-200 | 15000x3000x4000 | |
| MTN250S-3 | 3HX2165 | SC250F1 | 90-200 | 15000x3000x4200 | |
| MTN1213S-3 | 3HX1865 | CI1213 | 80-200 | 15000x3000x4200 | |
| MTN1316S-3 | 3HX2165 | CI1316 | 100-300 | 15000x3000x4200 | |
| MTN0926S-2 | 2HX1865 | HVI0926 | 85-200 | 18000x3000x4200 | |
| MTN1040S-2 | 2HX2165 | HVI1040 | 120-300 | 18000x3000x4200 | |
| THREE COMBINATION MOBILE STATION |
MTN1213-III | GZDT9538/3HX1865 | CI1213 | 80-200 | 18200x2800x4350 |
| MTN1316-III | GZDT1145A/3HX2165 | CI1316 | 100-300 | 18200x3000x4200 | |
| MTN1410-III | GZDT9538/3HX1865 | PCZ1410 | 80-200 | 18200x2800x4200 | |
| MTN1612-III | GZDT1145A/3HX2165 | PCZ1612 | 100-300 | 18200x3000x4200 | |
| FOUR COMBINATION MOBILE STATION |
MTN100Y-2 | GZD850X3000/2YK1545 | HD72/GYS300 | 50-100 | 15000x2650x4500 |
| MTN100Y-3 | GZDT0835/3HX1548 | HDX86/SC100F1 | 50-100 | 17500x2500x4000 | |
| MTN150Y-3 | GZDT0835/3HX1548 | HDX86/SC160F1 | 70-150 | 17500x2500x4000 | |
| MTN150R-3 | GZDT0835/3HX1548 | HDX86/CI1110 | 60-150 | 17500x2500x4000 |
| Series | Standard Model | Processing Capability (t/h) |
Transport dimensions (mm) |
| MOBILE COARSE CRUSHING STATION | MTN96 | 70-200 | 13000x2950x4250 |
| MTN98 | 80-200 | 13000x2950x4250 | |
| MTN106 | 90-300 | 14000x3000x4400 | |
| MTN110 | 120-300 | 14000x3000x4400 | |
| MTN1213C | 80-200 | 13000x2950x4250 | |
| MTN1316C | 100-300 | 14000x3000x4400 | |
| MOBILE MEDIUM AND FINE CRUSHING STATION | MTN300 | 100-200 | 15500x2900x4200 |
| MTN400 | 150-300 | 16500x3100x4300 | |
| MTN250 | 90-200 | 16500x3100x4300 | |
| MTN1213 | 80-200 | 16000x2900x4300 | |
| MTN1316 | 100-300 | 16500x3100x4500 | |
| MTN0926 | 85-200 | 16500x3100x4300 | |
| MTN1040 | 120-300 | 16500x3100x4400 | |
| MOBILE SCREENING STATION | MTN1865-3 | 65-200 | 14500x2900x4000 |
| MTN2165-3 | 85-300 | 15000x2900x4400 | |
| MOBILE STATION FOR MEDIUM AND FINE CRUSHING AND SCREENING | MTN300S-3SII | 100-200 | 15000x3000x4000 |
| MTN300S-3 | 100-200 | 15000x3000x4000 | |
| MTN400S-3 | 150-300 | 15000x3000x4000 | |
| MTNG400S-3SII | 100-200 | 15000x3000x4000 | |
| MTNG400S-3 | 100-200 | 15000x3000x4000 | |
| MTN250S-3 | 90-200 | 15000x3000x4200 | |
| MTN1213S-3 | 80-200 | 15000x3000x4200 | |
| MTN1316S-3 | 100-300 | 15000x3000x4200 | |
| MTN0926S-2 | 85-200 | 18000x3000x4200 | |
| MTN1040S-2 | 120-300 | 18000x3000x4200 | |
| THREE COMBINATION MOBILE STATION | MTN1213-III | 80-200 | 18200x2800x4350 |
| MTN1316-III | 100-300 | 18200x3000x4200 | |
| MTN1410-III | 80-200 | 18200x2800x4200 | |
| MTN1612-III | 100-300 | 18200x3000x4200 | |
| FOUR COMBINATION MOBILE STATION | MTN100Y-2 | 50-100 | 15000x2650x4500 |
| MTN100Y-3 | 50-100 | 17500x2500x4000 | |
| MTN150Y-3 | 70-150 | 17500x2500x4000 | |
| MTN150R-3 | 60-150 | 17500x2500x4000 |
Our global service network is ready to provide on-site technical support, genuine parts, and 24/7 assistance for your crushing projects.
