Processing Capacity: 1.9-76t/h
Cylinder Capacity: 9-285m³

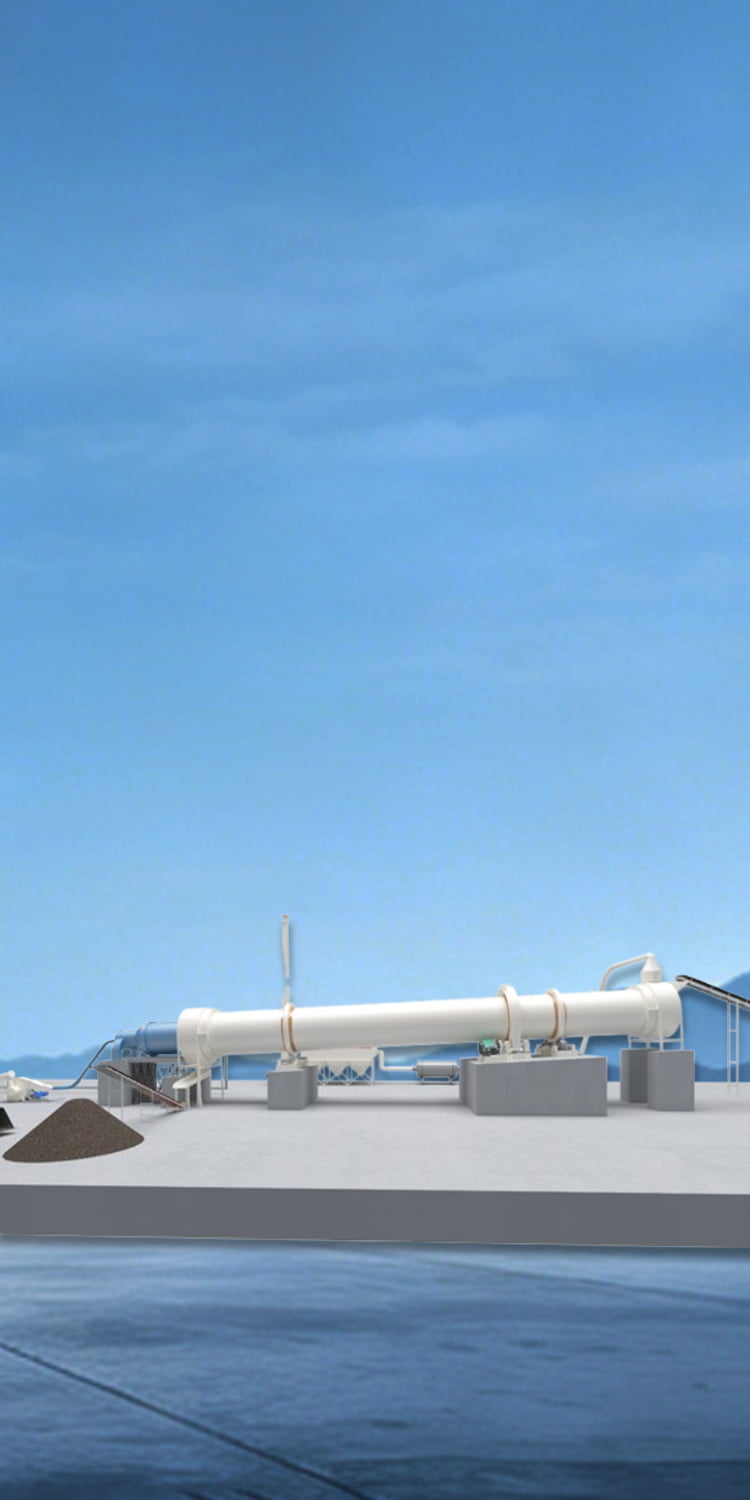

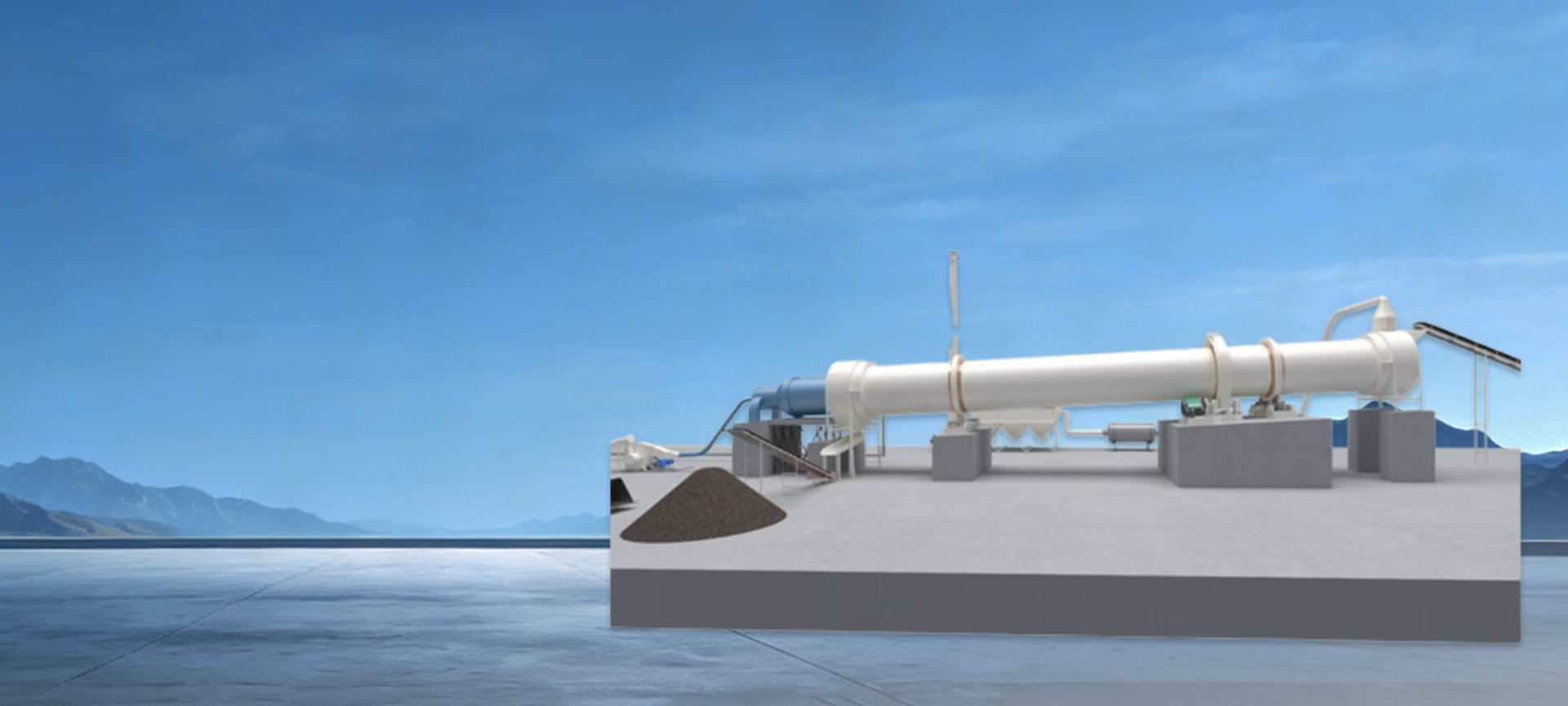

Ore Rotary Dryer designed for iron, copper, nickel, gold and various metallic & non-metallic minerals. Wear-resistant alloy steel plates and special lifting flights handle large particle sizes with uniform drying and high thermal efficiency. Widely used in mineral processing plants, smelters and mining industries.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
Made of wear-resistant alloy steel, 3-4 times longer service life than ordinary steel. Ideal for abrasive materials like ores.
Large diameter design with optimized internal structure handles high throughput, ideal for large-scale mining operations.
Special lifting flights design ensures full contact between ore particles and hot air, eliminating "wind tunnel" effect for consistent moisture content.
High thermal efficiency reduces fuel consumption by 15-20%. Simple structure with few moving parts minimizes maintenance requirements.
| Spec./m | Shell Cubage | Capacity(t/h) | Installation(%) | Highest Inlet Air Temperature | Main Motor |
| Φ 1.2×8 | 9 | 1.9-2.4 | 3-5 | 700-800 | 7.5 |
| Φ1.2 ×10 | 11.3 | 2.4-3 | 3-5 | 700-800 | 7.5 |
| Φ 1.5×12 | 21.2 | 4.5-5.7 | 3-5 | 700-800 | 15 |
| Φ 1.5×14 | 24.7 | 5.3-6.6 | 3-5 | 700-800 | 15 |
| Φ1.5×15 | 26.5 | 5.7-7.1 | 3-5 | 700-800 | 15 |
| Φ 1.8×12 | 30.5 | 6.5-8.1 | 3-5 | 700-800 | 18.5 |
| Φ 1.8×14 | 35.6 | 7.6-9.5 | 3-5 | 700-800 | 18.5 |
| Φ 2.2×12 | 45.6 | 9.7-12.2 | 3-5 | 700-800 | 22 |
| Φ 2.2×14 | 53.2 | 11.4-14.2 | 3-5 | 700-800 | 22 |
| Φ 2.2×16 | 60.8 | 13-16.2 | 3-5 | 700-800 | 22 |
| Φ 2.4×14 | 63.3 | 13.5-16.9 | 3-5 | 700-800 | 37 |
| Φ 2.4×18 | 81.4 | 17.4-21.7 | 3-5 | 700-800 | 37 |
| Φ 2.4×20 | 90.4 | 19.3-24.1 | 3-5 | 700-800 | 45 |
| Φ 2.4×22 | 99.5 | 21.2-26.5 | 3-5 | 700-800 | 45 |
| Φ 2.6×24 | 127.4 | 27.2-34 | 3-5 | 700-800 | 55 |
| Φ 3×20 | 141.3 | 30.1-37.7 | 3-5 | 700-800 | 75 |
| Φ 3×25 | 176.6 | 37.7-47.1 | 3-5 | 700-800 | 75 |
| Φ 3.2×25 | 201 | 42.9-53.6 | 3-5 | 700-800 | 90 |
| Φ 3.6×28 | 285 | 60.8-76 | 3-5 | 700-800 | 160 |
| Spec./m | Capacity(t/h) | Highest Inlet Air Temperature |
| Φ 1.2×8 | 1.9-2.4 | 700-800 |
| Φ1.2 ×10 | 2.4-3 | 700-800 |
| Φ 1.5×12 | 4.5-5.7 | 700-800 |
| Φ 1.5×14 | 5.3-6.6 | 700-800 |
| Φ1.5×15 | 5.7-7.1 | 700-800 |
| Φ 1.8×12 | 6.5-8.1 | 700-800 |
| Φ 1.8×14 | 7.6-9.5 | 700-800 |
| Φ 2.2×12 | 9.7-12.2 | 700-800 |
| Φ 2.2×14 | 11.4-14.2 | 700-800 |
| Φ 2.2×16 | 13-16.2 | 700-800 |
| Φ 2.4×14 | 13.5-16.9 | 700-800 |
| Φ 2.4×18 | 17.4-21.7 | 700-800 |
| Φ 2.4×20 | 19.3-24.1 | 700-800 |
| Φ 2.4×22 | 21.2-26.5 | 700-800 |
| Φ 2.6×24 | 27.2-34 | 700-800 |
| Φ 3×20 | 30.1-37.7 | 700-800 |
| Φ 3×25 | 37.7-47.1 | 700-800 |
| Φ 3.2×25 | 42.9-53.6 | 700-800 |
| Φ 3.6×28 | 60.8-76 | 700-800 |
| Shell diameter × shell Length | Inside diameter of outer shell （mm） |
Inside diameter of inner shell （mm） |
Shell Length （m） |
Shell cubage （m³） |
Shell obliquity | Lifting blade form | Highest inlet air temperature （℃） |
Dimensions （m） |
| Φ1.5×15m | 1500 | 500 | 15 | 20.27 | 3-5% | Lifting form | 850 | 16.2×2.7×2.7 |
| Φ1.5×17m | 17 | 22.97 | 18.2×2.7×2.7 | |||||
| Φ1.5×19m | 19 | 25.68 | 20.0×2.9×2.9 | |||||
| Φ1.8×21m | 1800 | 650 | 21 | 35.91 | 3-5% | Lifting form | 850 | 22.5×2.7×2.7 |
| Φ1.8×23m | 23 | 39.33 | 24.5×2.9×2.9 | |||||
| Φ1.8×25m | 25 | 42.75 | 26.5×2.9×2.9 | |||||
| Φ2.2×21m | 2200 | 800 | 21 | 58.10 | 3-5% | Lifting form | 850 | ---- |
| Φ2.2×23m | 23 | 63.61 | ||||||
| Φ2.2×25m | 25 | 69.15 |
| Shell diameter × shell Length | Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell cubage (m³) |
| Φ1.5×15m | 1500 | 500 | 20.27 |
| Φ1.5×17m | 22.97 | ||
| Φ1.5×19m | 25.68 | ||
| Φ1.8×21m | 1800 | 650 | 35.91 |
| Φ1.8×23m | 39.33 | ||
| Φ1.8×25m | 42.75 | ||
| Φ2.2×21m | 2200 | 800 | 58.10 |
| Φ2.2×23m | 63.61 | ||
| Φ2.2×25m | 69.15 |
| Item/Unit/Model | Φ2.5×7m | Φ2.7×7m | Φ3.0×7.0m | Φ3.2×7.0m | Φ3.6×8m |
| Diameter of outer cylinder(m) | 2.5 | 2.7 | 3.0 | 3.2 | 3.6 |
| Length of outer cylinder(m) | 7 | 7 | 7.0 | 7.0 | 8 |
| Cylinder volume( m³ ) | 16.63 | 16.63 | 52.678 | 52.678 | 81.38 |
| Rotating speed of cylinder(rpm) | 4-10 | 4-10 | 4 -10 | 4 -10 | 4 -10 |
| Initial moisture of slag(%) | 10-12 | 10-12 | 10-12 | 10-12 | 10-12 |
| Final moisture of slag(%) | 1 | 1 | 1 | 1 | 1 |
| Initial moisture of yellow ground(%) | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 |
| Final moisture of yellow ground (%) | 0.5-1 | 0.5-1 | 0.5-1 | 0.5-1 | 0.5-1 |
| Highest intake air temperature(℃) | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ |
| Production capacity(T/h) | Yellow sand25-30 Slag20-25 |
Yellow sand30-35 Slag25-30 |
Yellow sand35-40 Slag30-35 |
Yellow sand45-50 Slag35-40 |
Yellow sand65-70 Slag60-65 |
| Motor type | Y2-132m-4E | Y2-132m-4E | Y2-160m-4 | Y2-160m-4 | Y2-160m-4 |
| Motor power(kw) | 7.5×2 | 11×2 | 7.5×4 | 7.5×4 | 15×4 |
| Reducer type | XWD7-23-11W | XWD7-23-11W | XWD6-23-7.5KW | XWD6-23-7.5KW | XWD8-23-15KW |
| Velocity ratio of reducer | 29 | 29 | 29 | 29 | 29 |
| Item/Unit/Model | Cylinder volume( m³ ) | Production capacity(T/h) |
| Φ2.5×7m | 16.63 | Yellow sand25-30 Slag20-25 |
| Φ2.7×7m | 16.63 | Yellow sand30-35 Slag25-30 |
| Φ3.0×7.0m | 52.678 | Yellow sand35-40 Slag30-35 |
| Φ3.2×7.0m | 52.678 | Yellow sand45-50 Slag35-40 |
| Φ3.6×8m | 81.38 | Yellow sand65-70 Slag60-65 |
