Feed size: ≤300mm
Capacity: 30-1200t/h

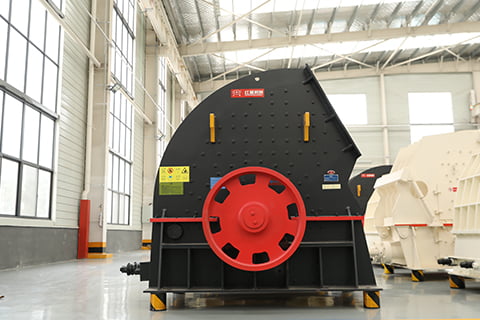

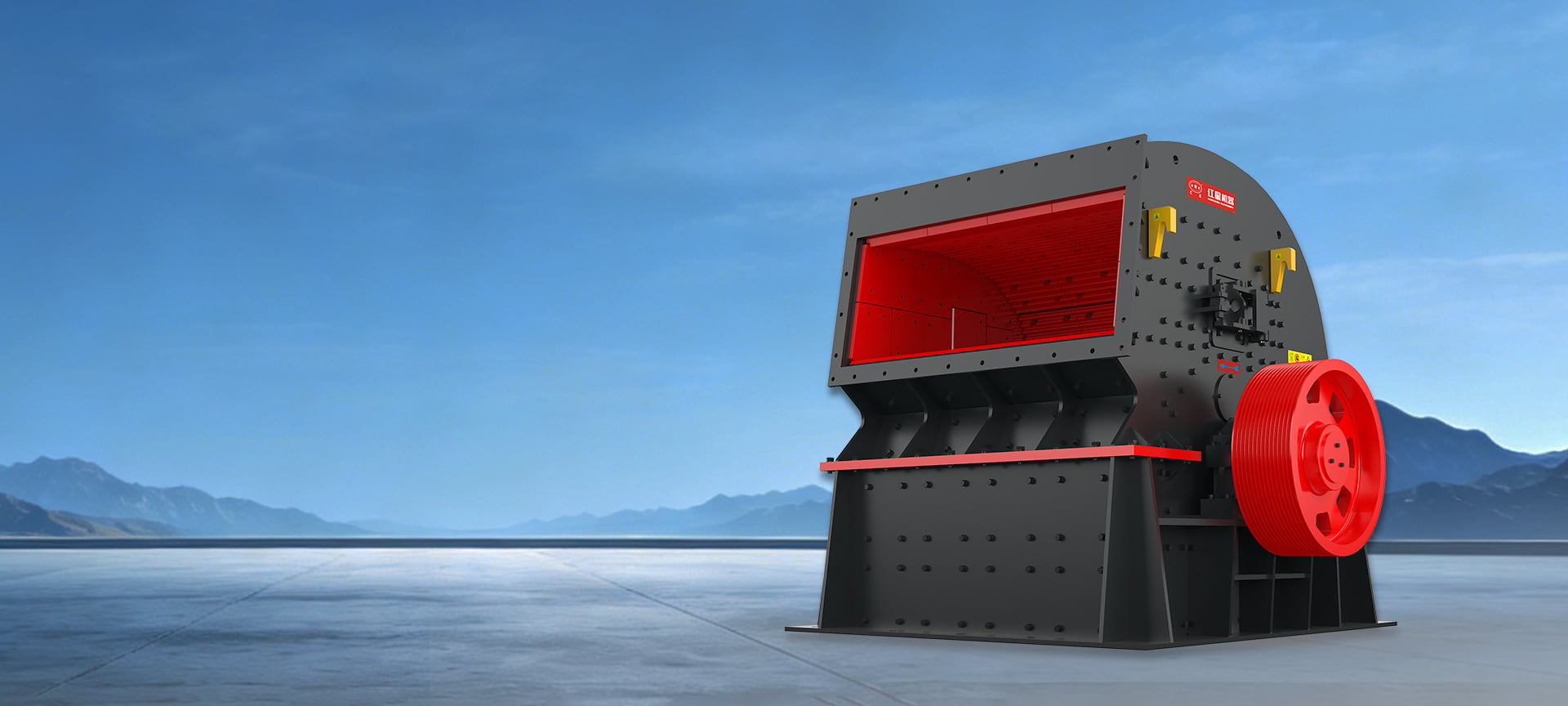

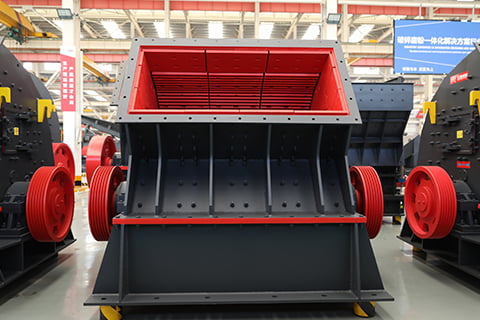

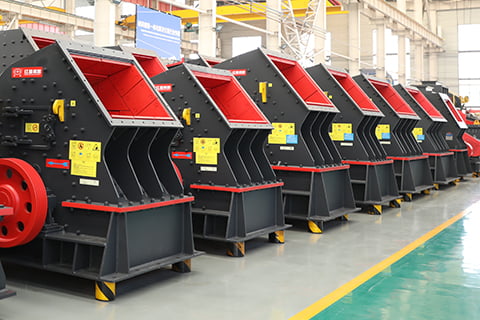

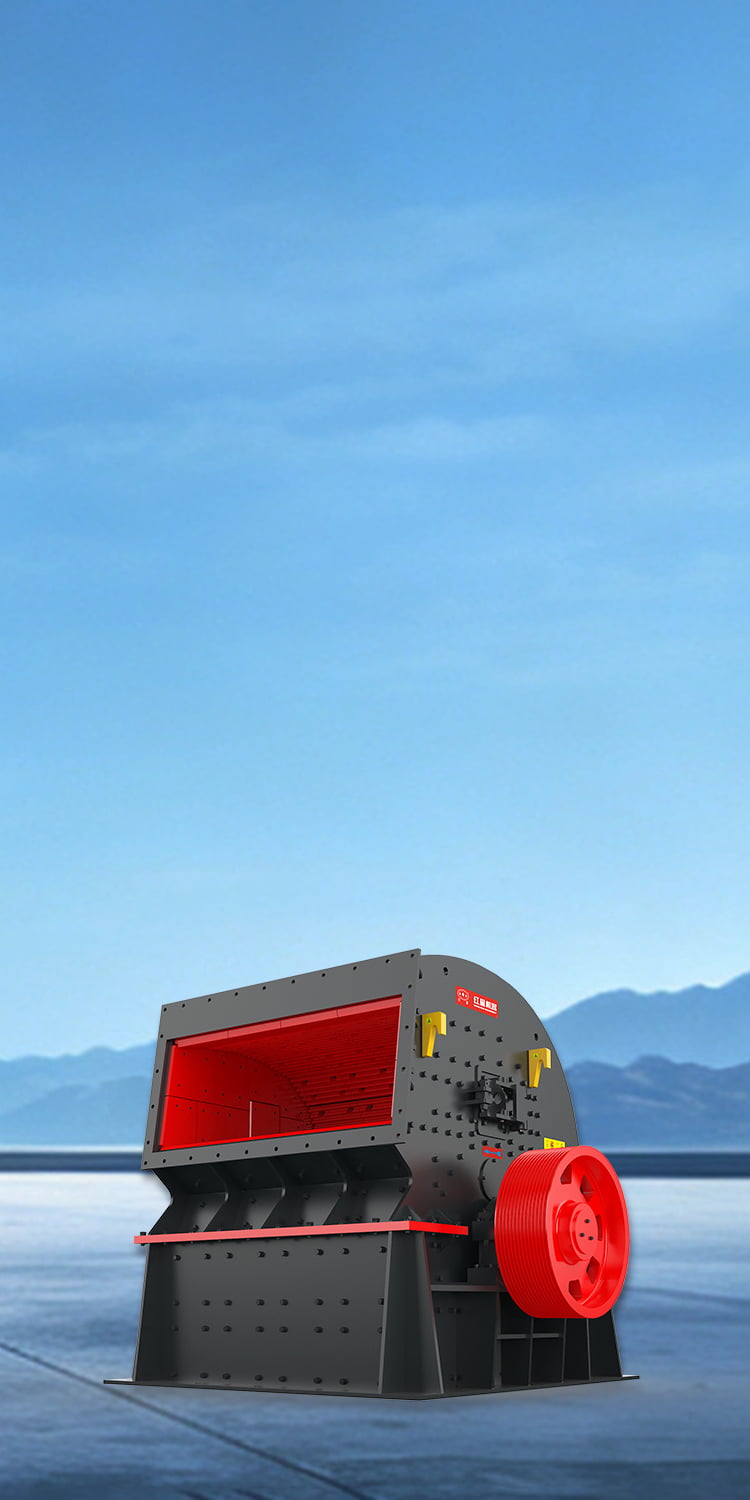

The PCX series is an integrated crushing and shaping machine.
Through adjustable movable liners and a material flow chute design, it achieves impact crushing, counter-impact shaping, and gravity discharge, transforming two-stage crushing into single-stage crushing.
It is used as a secondary crushing and shaping machine in large production lines.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
One-step molding, eliminating the need for secondary crushing and shaping processes, reducing costs by approximately 40%. Low energy consumption and minimal investment.
Particularly suitable for crushing limestone and medium-hardness stones with compressive strength below 200 MPa.
Employs an external oil pump, oil tank, and pipeline lubrication system; automatically shuts down when oil temperature is too high or oil flow rate is too slow.
Modular design; by changing the chamber shape, coarse, medium, and fine crushing can be achieved, improving production efficiency.
| Model | Rotor diameter×Length（mm） | Feed Opening Length×Width（mm） | Feeding Size（mm） | Processing Capacity（t/h） | Power（kw） | Dimensions(L×W×H)（mm） |
| PCX 0706 | 700×570 | 618×510 | ≤150 | 30-70 | 75 | 1950×1340×1480 |
| PCX 0808 | 800×750 | 780×610 | ≤150 | 45-100 | 132 | 2280×1790×1570 |
| PCX 0910 | 900×1000 | 1070×750 | ≤200 | 70-200 | 2×110 | 2600×2200×1940 |
| PCX 1012 | 1000×1180 | 1315×900 | ≤200 | 130-300 | 2×132 | 2760×2430×2290 |
| PCX 1213 | 1260×1280 | 1430×1010 | ≤250 | 200-350 | 2×160 | 3067×2622×2580 |
| PCX 1216 | 1260×1490 | 1630×1010 | ≤250 | 230-500 | 2×200 | 3067×2832×2580 |
| PCX 1220 | 1260×1950 | 2090×1010 | ≤250 | 300-700 | 2×220 | 3067×3380×2580 |
| PCX 1622 | 1600×2150 | 2300×950 | ≤300 | 400-1200 | 2×315 | 4120×3680×3200 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding Size（mm） | Processing Capacity（t/h） |
| PCX 0706 | ≤150 | 30-70 |
| PCX 0808 | ≤150 | 45-100 |
| PCX 0910 | ≤200 | 70-200 |
| PCX 1012 | ≤200 | 130-300 |
| PCX 1213 | ≤250 | 200-350 |
| PCX 1216 | ≤250 | 230-500 |
| PCX 1220 | ≤250 | 300-700 |
| PCX 1622 | ≤300 | 400-1200 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
