Feed size: ≤1200mm
Capacity: 1-1200t/h

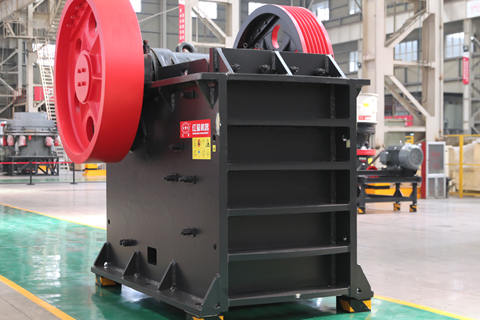

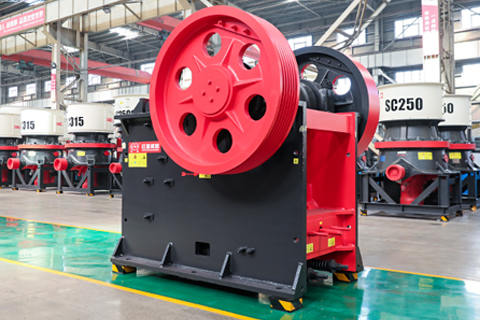

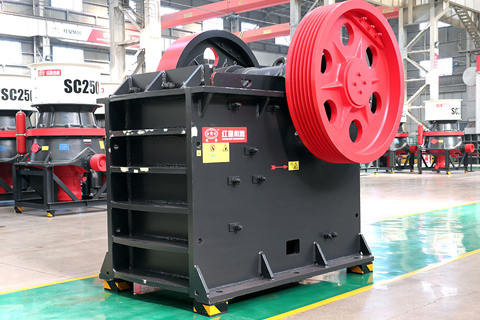

PE/PEX jaw crushers are among the earliest crushing equipment, used for coarse, medium, and fine crushing of various ores with compressive strengths ranging from 147 to 245 MPa. Commonly used PE jaw crusher models include 46, 57, 69, and 912. Additionally, PEX fine jaw crushers can be used as secondary crushing equipment in sand making lines, replacing cone crushers/impact crushers and saving production costs.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
The welded steel plate frame avoids casting defects, making it more robust and reliable.
The flywheel design effectively reduces vibration, resulting in smoother machine operation.
Discharge port shim adjustment is simple, reliable, and easy to maintain.
The deep crushing chamber with no dead zones improves feeding capacity and output, resulting in a large crushing ratio and uniform product particle size.
Global coverage, consistent quality, trusted by customers worldwide.
| Model | Feed opening size(mm） | Max.Feeding size (mm) | Adjustment range of discharge port (mm) | Capacity(t/h) | Rotation speed of eccentric shaft(r/min) | Power (kw) | Dimensions（L×W×H） (mm) |
| PE 150×250 | 150×250 | 125 | 10-40 | 1-3 | 268 | 4P 5.5 | 760×700×860 |
| PE 200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 915×780×990 |
| PE 200×350 | 200×350 | 180 | 18-60 | 3-10 | 276 | 4P 11 | 1000×914×1112 |
| PE 250×400 | 250×400 | 210 | 20-70 | 5-21 | 300 | 6P 15 | 1100×1032×1285 |
| PE 400×600 | 400×600 | 340 | 40-100 | 16-64 | 270 | 6P 30 | 1623×1736×1615 |
| PE 500×750 | 500×750 | 425 | 50-100 | 40-110 | 268 | 6P 55 | 1920×1850×1920 |
| PE 600×750 | 600×750 | 500 | 150-200 | 80-240 | 268 | 6P 55 | 2020×1850×1920 |
| PE 600×900 | 600×900 | 500 | 65-160 | 50-160 | 254 | 6P 55 | 2530×1900×2340 |
| PE 750×1060 | 750×1060 | 630 | 80-180 | 110-320 | 245 | 8P 110 | 2680×2380×2785 |
| PE 900×1200 | 900×1200 | 750 | 100-200 | 220-380 | 208 | 8P 110 | 3470×2876×3330 |
| PE1200×1500 | 1200×1500 | 1020 | 150-350 | 400-1000 | 180 | 8P 160-245 | 4850×3220×3680 |
| PE1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1200 | 180 | 8P 280-380 | 5160×3660×4248 |
| PEX 150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 1170×1575×1030 |
| PEX 250×750 | 250×750 | 210 | 25-60 | 13-35 | 320 | 6P 22 | 1550×1730×1470 |
| PEX 250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 1580×2006×1390 |
| PEX 250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 1780×2214×1430 |
| PEX 300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 2210×2320×1723 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Max.Feeding size (mm) | Capacity (t/h) |
| PE 150×250 | 125 | 1-3 |
| PE 200×300 | 180 | 2-6 |
| PE 200×350 | 180 | 3-10 |
| PE 250×400 | 210 | 5-21 |
| PE 400×600 | 340 | 16-64 |
| PE 500×750 | 425 | 40-110 |
| PE 600×750 | 500 | 80-240 |
| PE 600×900 | 500 | 50-160 |
| PE 750×1060 | 630 | 110-320 |
| PE 900×1200 | 750 | 220-380 |
| PE 1200×1500 | 1020 | 400-1000 |
| PE 1500×1800 | 1200 | 500-1200 |
| PEX 150×750 | 120 | 8-25 |
| PEX 250×750 | 210 | 13-35 |
| PEX 250×1000 | 210 | 16-52 |
| PEX 250×1200 | 210 | 20-61 |
| PEX 300×1300 | 250 | 16-105 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size(mm) | Maximum feeding size （mm） | Adjustment range of discharge port（mm） | Processing capacity(t/h) | Power(kw) | Dimensions L×W×H（mm） |
| HDX72(57) | 720×460 | 370 | 45-100 | 50-120 | 6P 55 | 2450×2160×1615 |
| HDX86(69) | 860×580 | 460 | 50-150 | 60-280 | 8P 75 | 3005×2392×1780 |
| HDX98(751) | 980×680 | 550 | 75-175 | 110-410 | 8P 110 | 3372×2530×2145 |
| HDX110(912) | 1100×850 | 680 | 100-200 | 170-550 | 6P 132 | 3616×2670×2515 |
| HDX125 | 1250×950 | 760 | 125-225 | 280-750 | 8P 160 | 4214×2830×2887 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size(mm) | Maximum feeding size （mm） | Processing capacity(t/h) |
| HDX72(57) | 720×460 | 370 | 50-120 |
| HDX86(69) | 860×580 | 460 | 60-280 |
| HDX98(751) | 980×680 | 550 | 110-410 |
| HDX110(912) | 1100×850 | 680 | 170-550 |
| HDX125 | 1250×950 | 760 | 280-750 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size L×W（mm） | Maximum Feeding size（mm） | Adjustment range of discharge port（mm） | Capacity（t/h） | Power（KW） | Dimensions L×W×H（mm） |
| CJ80 | 800×510 | 410 | 40-175 | 55-335 | 4P 75 | 2660×2162×1800 |
| CJ96 | 930×580 | 480 | 60-175 | 105-390 | 4P 90 | 2850×2180×1990 |
| CJ100 | 1000×760 | 600 | 70-200 | 150-420 | 4P 110 | 3535×2350×2510 |
| CJ106 | 1060×700 | 560 | 70-200 | 150-500 | 4P 110 | 3280×2510×2400 |
| CJ116 | 1150×760 | 608 | 70-200 | 165-580 | 4P 132 | 3840×2440×2650 |
| CJ120 | 1200×870 | 700 | 70-200 | 175-610 | 4P 160 | 3700×2790×2950 |
| CJ125 | 1250×950 | 760 | 100-250 | 270-831 | 4P 160 | 4230×2820×3080 |
| CJ130 | 1300×1000 | 800 | 100-250 | 270-831 | 4P 185 | 4220×2810×3330 |
| CJ150 | 1400×1200 | 960 | 125-250 | 340-880 | 4P 200 | 5040×3445×3970 |
| CJ160 | 1600×1200 | 960 | 150-300 | 430-1145 | 4P 250 | 5780×3460×3840 |
| CJ180 | 1800×1200 | 960 | 150-300 | 500-1300 | 6P 315 | 5640×3780×3920 |
| CJ200 | 2000×1500 | 1200 | 175-300 | 630-1435 | 6P 400 | 6600×4040×4580 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Maximum Feeding size（mm） | Capacity（t/h） |
| CJ80 | 410 | 55-335 |
| CJ96 | 480 | 105-390 |
| CJ100 | 600 | 150-420 |
| CJ106 | 560 | 150-500 |
| CJ116 | 608 | 165-580 |
| CJ120 | 700 | 175-610 |
| CJ125 | 760 | 270-831 |
| CJ130 | 800 | 270-831 |
| CJ150 | 960 | 340-880 |
| CJ160 | 960 | 430-1145 |
| CJ180 | 960 | 500-1300 |
| CJ200 | 1200 | 630-1435 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size(mm) | Max.Feeding size （mm） | Adjustment range of discharge port（mm） | Capacity(t/h) | Power(kw) | Dimensions L×W×H （mm） |
| HD72(57) | 460×720 | 425 | 45-100 | 50-120 | 6P 55 | 2100×1556×1640 |
| HD86(69) | 580×860 | 500 | 50-150 | 60-280 | 8P 75 | 2200×1754×1810 |
| HD98(751) | 680×980 | 630 | 75-175 | 110-410 | 8P 110 | 2660×1960×2175 |
| HD110(912) | 850×1100 | 750 | 100-200 | 170-550 | 6P 132 | 2960×2381×2556 |
| HD125 | 950×1250 | 900 | 125-225 | 280-750 | 8P 160 | 3500×2614×2925 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size(mm) | Max.Feeding size（mm） | Capacity (t/h) |
| HD72(57) | 460×720 | 425 | 50-120 |
| HD86(69) | 580×860 | 500 | 60-280 |
| HD98(751) | 680×980 | 630 | 110-410 |
| HD110(912) | 850×1100 | 750 | 170-550 |
| HD125 | 950×1250 | 900 | 280-750 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
