Feed size: ≤800mm
Capacity: 30-800t/h

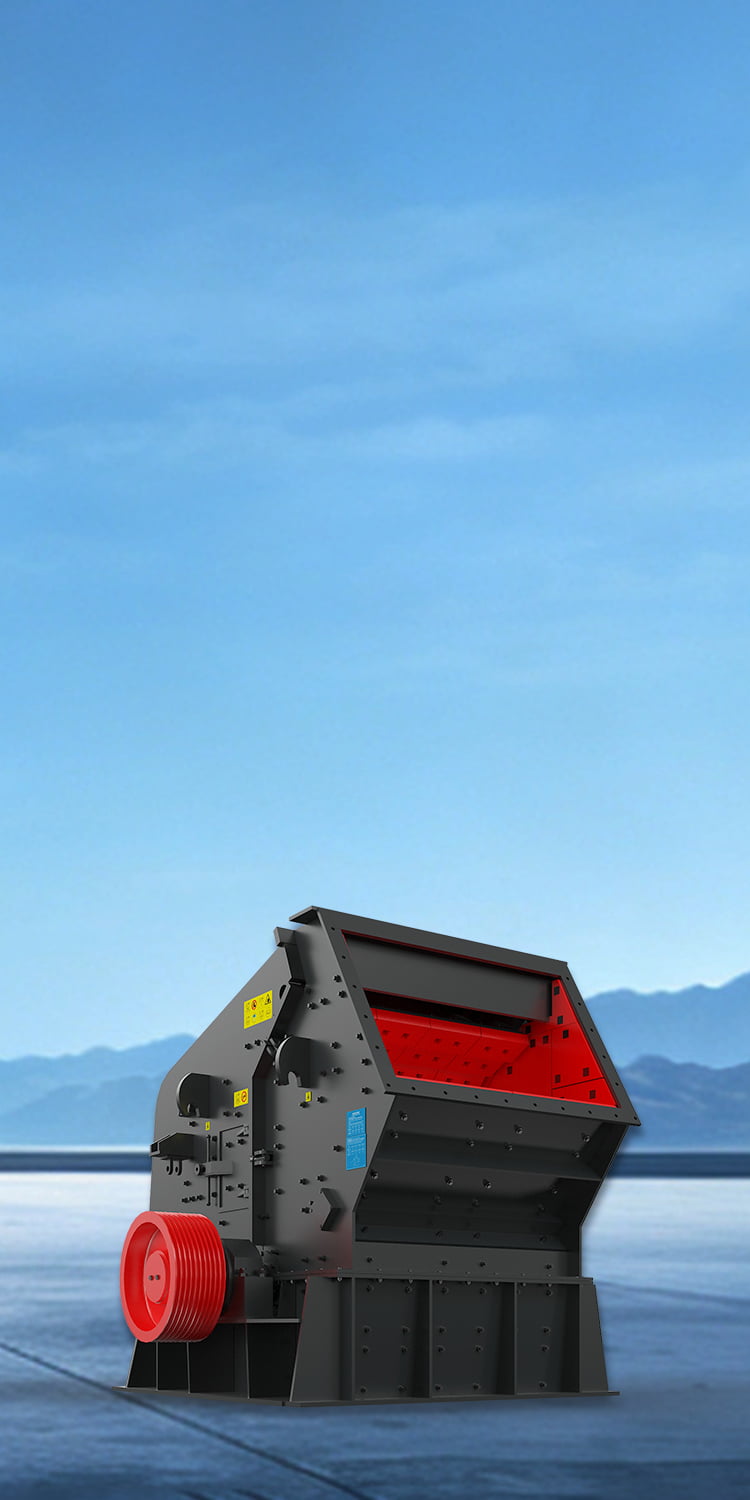

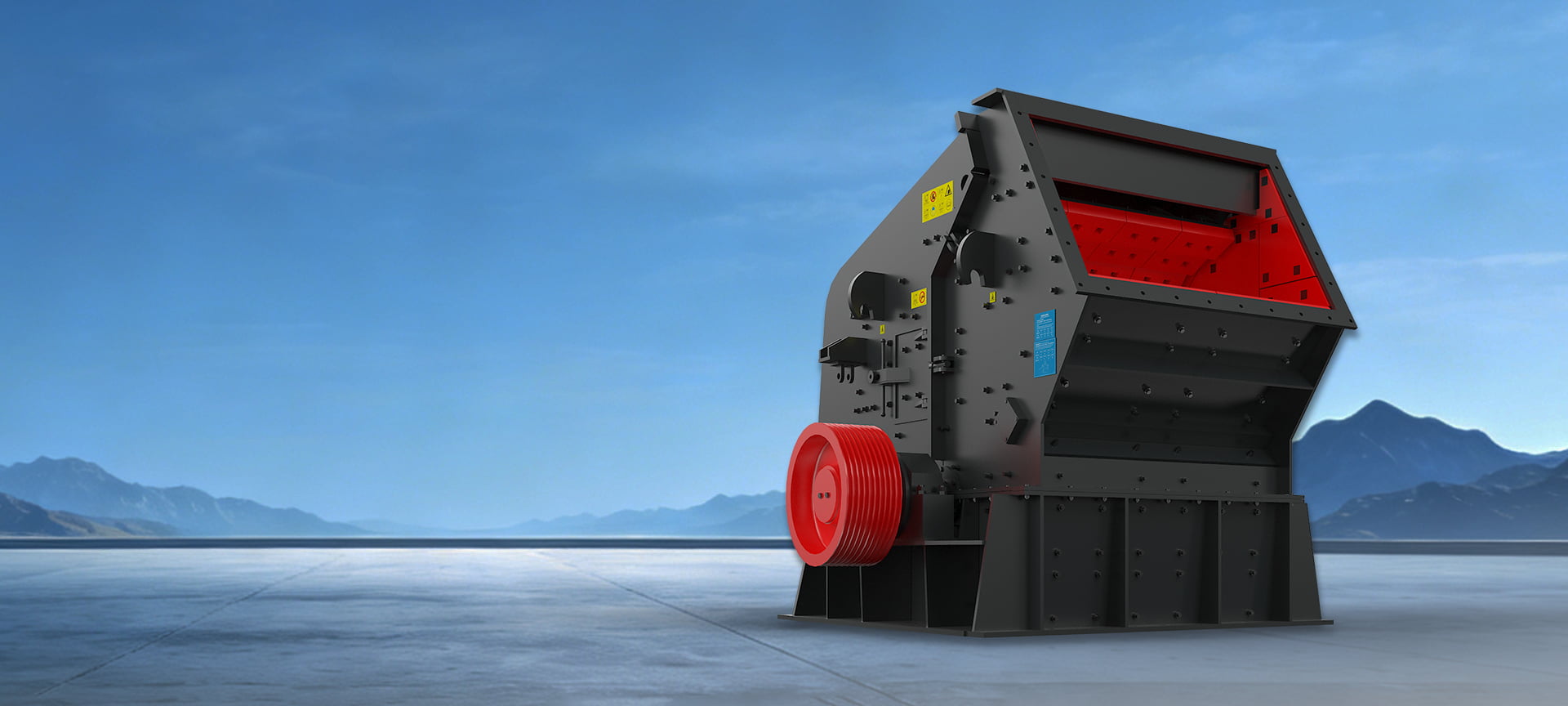

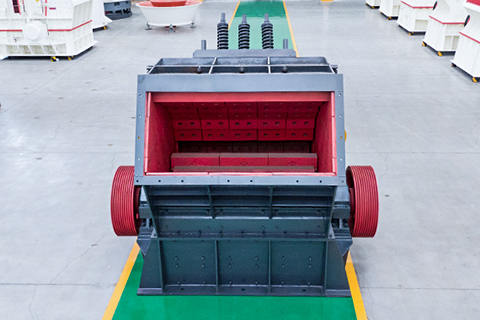

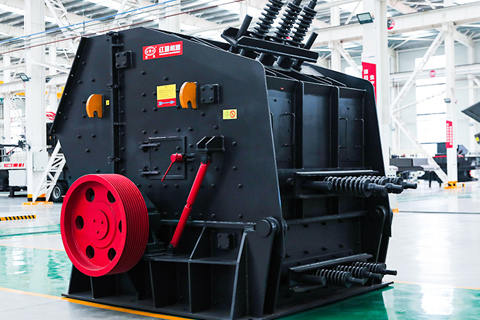

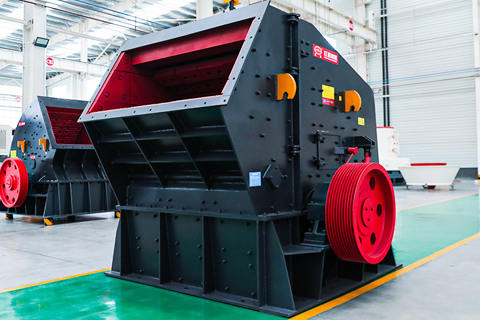

The PF impact crusher is an impact crusher developed by our company by absorbing advanced technology and combining it with the domestic sand and gravel industry.
Its special structural design and advanced manufacturing process make it widely used in the crushing of low-abrasive materials with medium hardness or less in industries such as railways, energy, building materials, and chemicals.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
Large feed opening, high crushing chamber, adaptable to materials with high hardness and large block size, low stone powder content in the product
The gap between the impact plate and the hammer can be easily adjusted, effectively controlling the discharge particle size and resulting in good particle shape
Compact structure, high machine rigidity, and large rotational inertia of the rotor
High chromium hammer, impact-resistant, wear-resistant, and with high impact force
Global coverage, consistent quality, trusted by customers worldwide.
| Model | Specifications （mm） | Feed Opening （mm） | Max.Feeding Size （mm） | Capacity （t/h） | Power （kw） | Dimensions（L×W×H） （mm） |
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 2330×1660×2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 2370×1700×2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 2680×2160×2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 80-180 | 6P 132 | 2650×2460×2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 100-280 | 6P 200 | 3180×2720×3120 |
| PF-1320 | Φ1300×2000 | 993×2000 | 500 | 140-380 | 6P 250 | 3220×3100×3120 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 200-550 | 4P 315-400 | 3959×3564×3330 |
| PF-1820 | Φ1800×2000 | 1260×2040 | 800 | 300-800 | 6P 630-710 | 4400×3866×4009 |
| Model | Feed Opening （mm） | Max.Feeding Size （mm） | Capacity （t/h） |
| PF-1007 | 400×730 | 300 | 30-70 |
| PF-1010 | 400×1080 | 350 | 50-90 |
| PF-1210 | 400×1080 | 350 | 70-130 |
| PF-1214 | 400×1430 | 350 | 80-180 |
| PF-1315 | 860×1520 | 500 | 100-280 |
| PF-1320 | 993×20000 | 500 | 140-380 |
| PF-1520 | 830×2040 | 700 | 200-550 |
| PF-1820 | 1260×2040 | 800 | 300-800 |
| Model | Rotor（mm） | The Maximum Feeding Size（mm） | Capacity（t/h） | Motor power（kw） | Overall dimension（L×W×H）(mm) | Weight（kg） | |
| -150MPa | -350MPa | ||||||
| HD1110 | Φ1040×1000 | 400 | 200 | 90~190 | 4P 90-132 | 3000×2360×2385 | 15875 |
| HD1315 | Φ1300×1500 | 700 | 300 | 180~280 | 4P 200-270 | 3735×3156×3055 | 29600 |
| HD1520 | Φ1500×2000 | 1000 | 400 | 350~500 | 4P 400-500 | 4310×3330×3660 | 42000 |
| HD1625 | Φ1650×2500 | 1300 | 500 | 500~670 | 4P 500-670 | 5540×4330×4600 | 66000 |
| Rotor （mm） |
Discharging （mm） |
Capacity （t/h） |
|
| -150MPa | -350MPa | ||
| Φ1040×1000 | 400 | 200 | 90-190 |
| Φ1300×1500 | 700 | 300 | 180~280 |
| Φ1500×2000 | 1000 | 400 | 350~500 |
| Φ1650×2500 | 1300 | 500 | 500~670 |
HX Series Counterattack Break Secondary Counterattack Break (Fine Break)
| Model | Maximum Feeding Size(mm) | Crusher weight Containing hopper(kg) |
Power(kw) | Processing capacity(t/h) |
| HX100S | 300 | 11380 | 160 | 60-210 |
| HX120S | 350 | 18112 | 200 | 80-300 |
| HX140S | 350 | 29650 | 400 | 150-700 |
HX Series Counter-break Primary Counter-break (Coarse Break) Applicable to Construction Waste Crushing
| Model | Maximum Feeding Size(mm) | Crusher weight Containing hopper(kg) |
Power(kw) | Processing capacity(t/h) |
| HX100P | 600 | 10940 | 160 | 60-210 |
| HX120P | 900 | 17252 | 200 | 80-400 |
| HX140P | 1000 | 27750 | 315 | 200-700 |
HX Series Counterattack Break Secondary Counterattack Break (Fine Break)
Containing hopper(t)
| Model | Maximum Feeding Size(mm) | Power(kw) | Processing capacity(t/h) |
| HX100S | 300 | 160 | 60-210 |
| HX120S | 350 | 200 | 80-300 |
| HX140S | 350 | 400 | 150-700 |
HX Series Counter-break Primary Counter-break (Coarse Break) Applicable to Construction Waste Crushing
| Model | Maximum Feeding Size(mm) | Power(kw) | Processing capacity(t/h) |
| HX100P | 600 | 160 | 60-210 |
| HX120P | 900 | 200 | 80-400 |
| HX140P | 1000 | 315 | 200-700 |
