Capacity: 400-2500t/h
Iutput Size: ≤1200mm

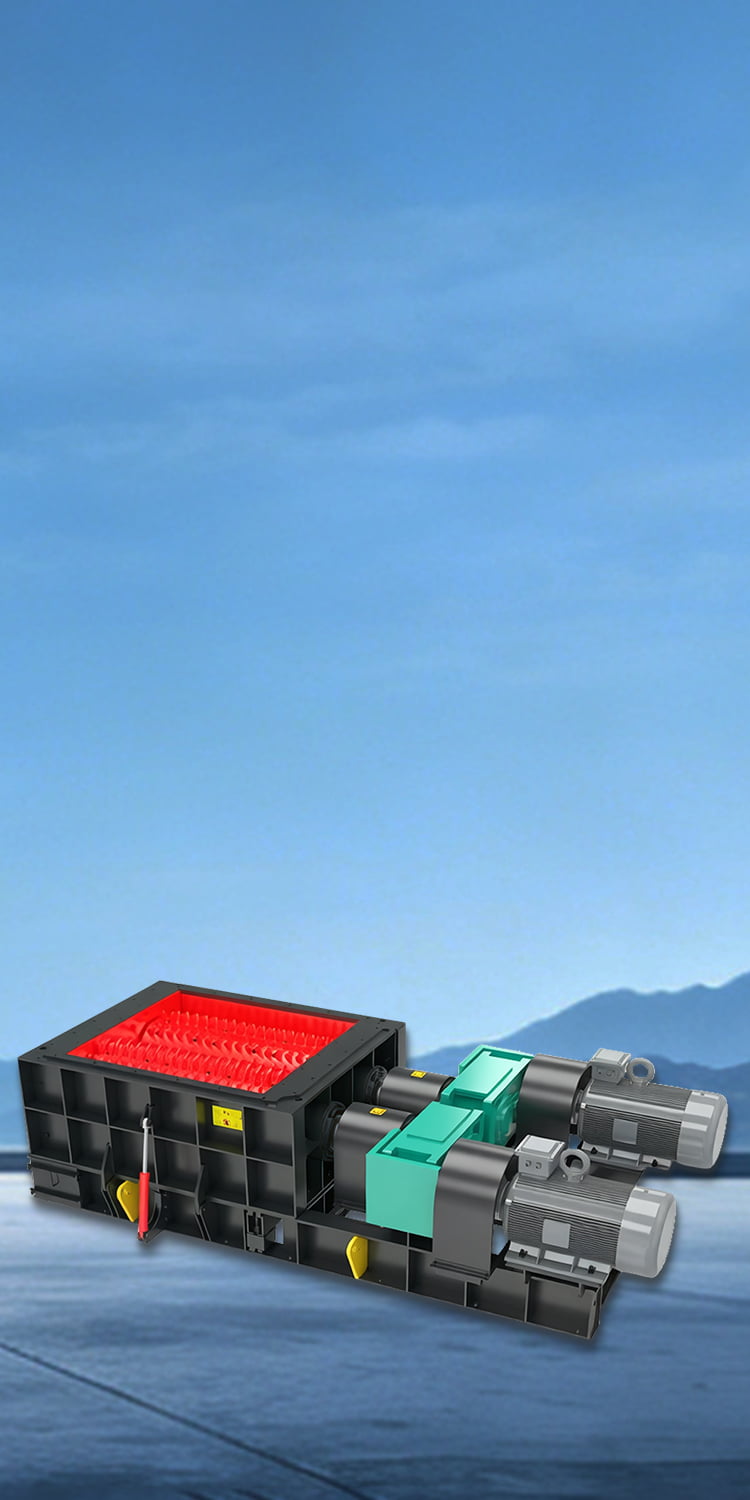

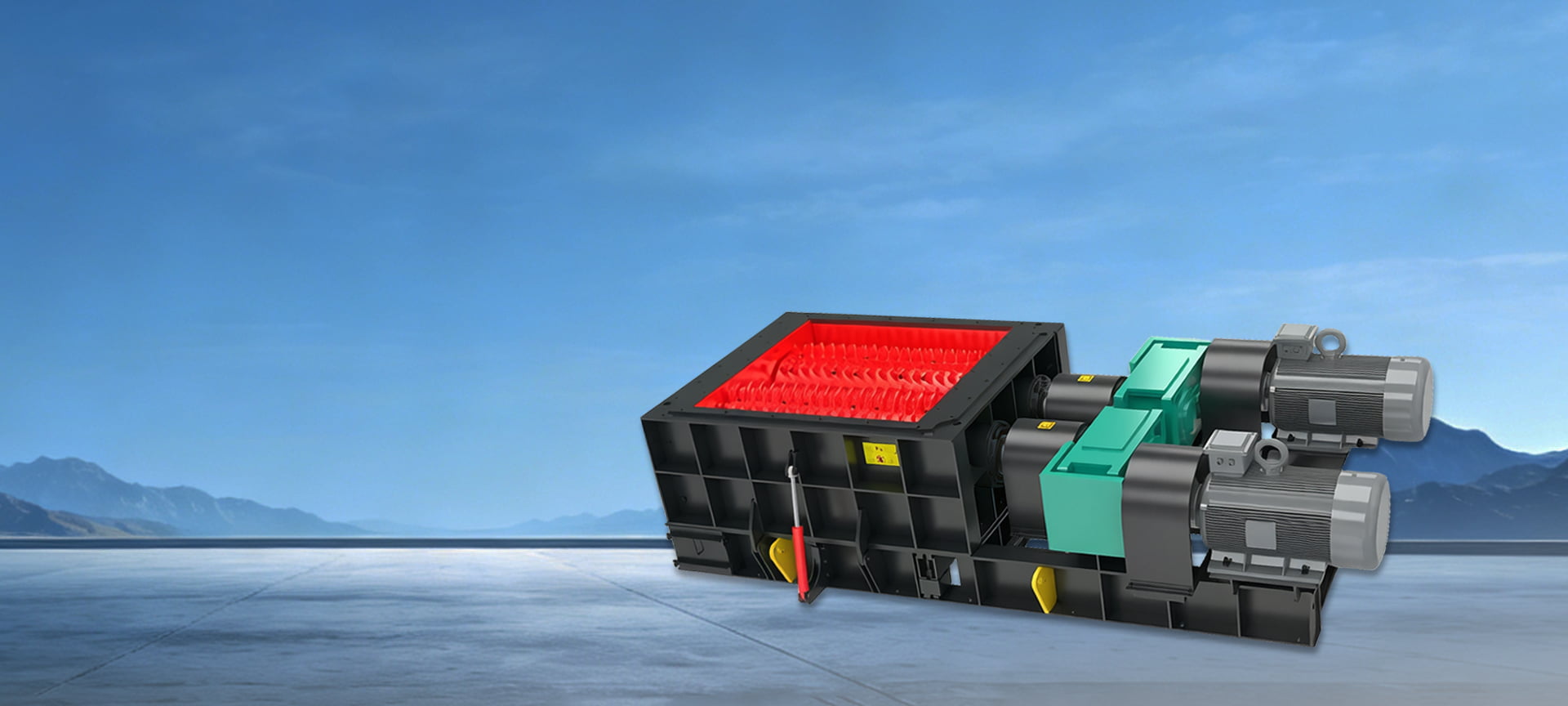

This equipment is a crusher with a novel crushing mechanism and superior structure. It can crush large pieces of material while also discharging material smaller than the discharge opening without further crushing, thus providing a dual function of crushing and grading. It is suitable for brittle materials with a compressive strength of 150 MPa or less.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
Boasts advanced structure and superior crushing mechanism for optimal performance.
Ideal for crushing high-hardness and large-particle materials, featuring large processing capacity, uniform and controllable product size, and zero over-crushing.
Equipped with overload protection, hydraulic system and automatic bearing lubrication device to ensureefficient, continuous and stable operation.
Modular design and easily accessible components reduce downtime and lower long-term maintenance costssignificantly.
| Model | Processing Capacity(t/h) | Feeding size(mm) | Discharge size(mm) | Power(kw) | Dimensions(L×W×H)(mm) |
| PMA100 | 400 | <600 | <100 | 110 | 5200×2100×1350 |
| 600 | 132 | 5350×2100×1350 | |||
| 800 | 160 | 6100×2100×1350 | |||
| PMA250 | 1000 | <1000 | <250 | 2×110 | 5500×2850×1400 |
| 1500 | 2×132 | 6500×3040×1400 | |||
| 2000 | 2×160 | 7200×3040×1400 | |||
| PMA300 | 2000 | <1200 | <300 | 2×200 | 5780×3270×1550 |
| 3000 | 2×220 | 6950×3740×1550 | |||
| 4000 | 2×250 | 7780×3740×1550 | |||
| PMB50 | 200 | <300 | <50 | 132 | 4450×2140×1350 |
| 400 | 160 | 5440×2140×1350 | |||
| 600 | 200 | 5900×2140×1350 | |||
| 800 | 2×160 | 5650×2750×1480 | |||
| 1000 | 2×200 | 5810×3080×1520 | |||
| 1200 | 2×220 | 6680×3080×1520 | |||
| 1500 | 2×250 | 7280×3080×1520 | |||
| 2000 | 2×315 | 7250×3700×1630 | |||
| 2500 | 2×355 | 7750×3700×1630 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Processing Capacity(t/h) | Feeding size(mm) | Discharge size(mm) |
| PMA100 | 400 | <600 | <100 |
| 600 | |||
| 800 | |||
| PMA250 | 1000 | <1000 | <250 |
| 1500 | |||
| 2000 | |||
| PMA300 | 2000 | <1200 | <300 |
| 3000 | |||
| 4000 | |||
| PMB50 | 200 | <300 | <50 |
| 400 | |||
| 600 | |||
| 800 | |||
| 1000 | |||
| 1200 | |||
| 1500 | |||
| 2000 | |||
| 2500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
