Capacity: 50-700t/h
Iutput Size: ≤300 mm

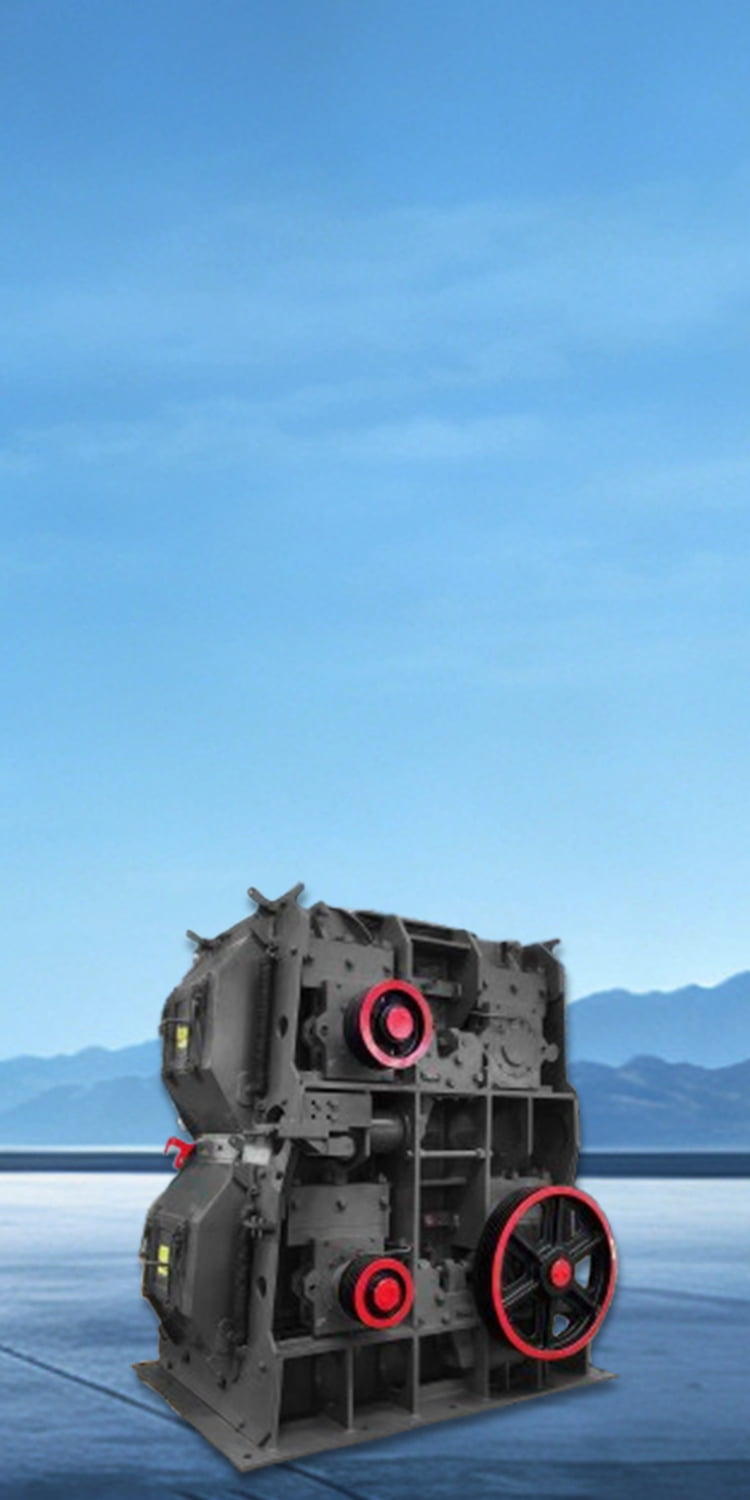

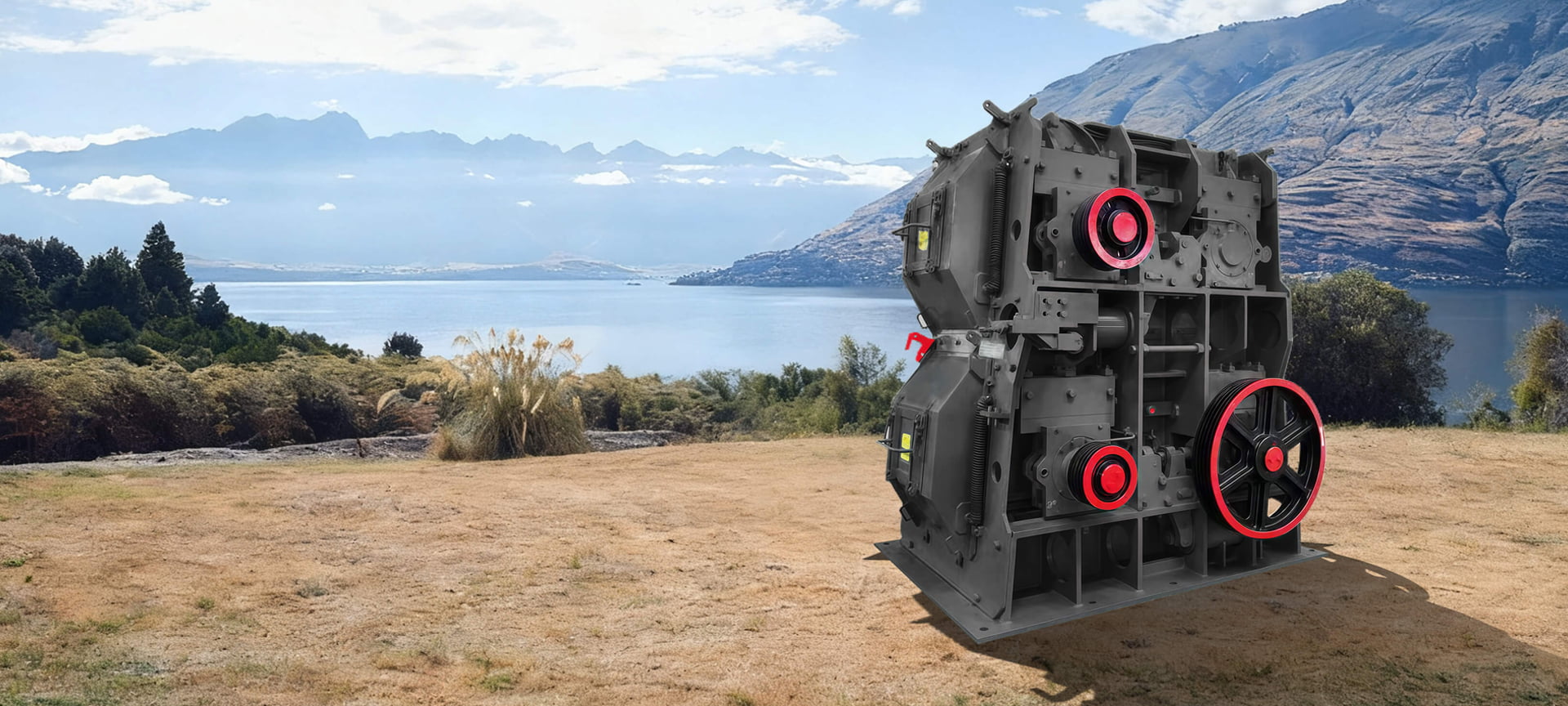

Driven by a motor, the equipment fully utilizes the shearing, splitting, and tearing actions of the toothed rollers to allow materials to continuously pass through the primary and secondary toothed rollers for selective crushing, achieving the desired particle size. This greatly simplifies the process and reduces investment. It is suitable for brittle materials with a compressive strength of 80 MPa or less.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
Suitable for crushing large-particle materials, with high processing capacity and uniform, adjustable productparticle size, enabling multi-purpose operation with one machine.
No strict requirements for material moisture content, no over-crushing, and significantly reduced energyconsumption.
Equipped with an automatic avoidance function and automatic lubrication device, ensuring efficient andcontinuous operation of the equipment.
Designed with wear-resistant components and a user-friendly structure, minimizing downtime and extendingthe overall service life.
| Model | Processing Capacity(t/h) | Feeding size(mm) | Discharge size(mm) | Power(kw) | Dimensions A(L×W×H)(mm) | Dimensions B(L×W×H)(mm) |
| PMG-50 | 50 | ≤300 | ≤10 | 2×22 | 5180×2980×2000 | 5180×1620×2000 |
| PMG-70 | 70 | 37+30 | 5270×3320×2135 | 5270×1880×2135 | ||
| PMG-90 | 90 | 2×45 | 5375×3700×2600 | 6175×1975×2600 | ||
| PMG-120 | 120 | 55+45 | 5375×3880×2600 | 6175×2075×2600 | ||
| PMG-140 | 140 | 55+45 | 5375×3980×2600 | 6175×2110×2600 | ||
| PMG-170 | 170 | 75+55 | 5375×4320×2600 | 6175×2380×2600 | ||
| PMG-200 | 200 | 90+75 | 5530×4720×2600 | 6330×2700×2600 | ||
| PMG-250 | 250 | 110+90 | 5530×4920×2600 | 6330×2800×2600 | ||
| PMG-300 | 300 | 132+110 | 5530×5100×2600 | 6330×2900×2600 | ||
| PMG-350 | 350 | 132+110 | 5530×5320×2600 | 6330×3100×2600 | ||
| PMG-400 | 400 | 2×160 | 6340×6150×2600 | 6740×3430×2600 | ||
| PMG-450 | 450 | 2×185 | 6340×6450×2600 | 6740×3730×2600 | ||
| PMG-500 | 500 | 2×200 | 6340×6750×2600 | 6740×4030×2600 | ||
| PMG-600 | 600 | 280+250 | 7150×8440×2800 | 一 | ||
| PMG-700 | 700 | 315+280 | 7150×8840×2800 | 一 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Processing Capacity(t/h) | Feeding size(mm) | Discharge size(mm) |
| PMG-50 | 50 | ≤300 | ≤10 |
| PMG-70 | 70 | ||
| PMG-90 | 90 | ||
| PMG-120 | 120 | ||
| PMG-140 | 140 | ||
| PMG-170 | 170 | ||
| PMG-200 | 200 | ||
| PMG-250 | 250 | ||
| PMG-300 | 300 | ||
| PMG-350 | 350 | ||
| PMG-400 | 400 | ||
| PMG-450 | 450 | ||
| PMG-500 | 500 | ||
| PMG-600 | 600 | ||
| PMG-700 | 700 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
