Feed size: ≤25mm
Capacity: 4.5-210t/h

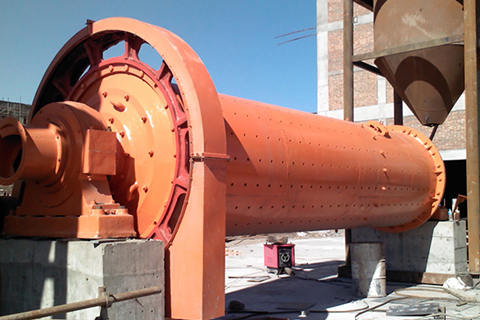

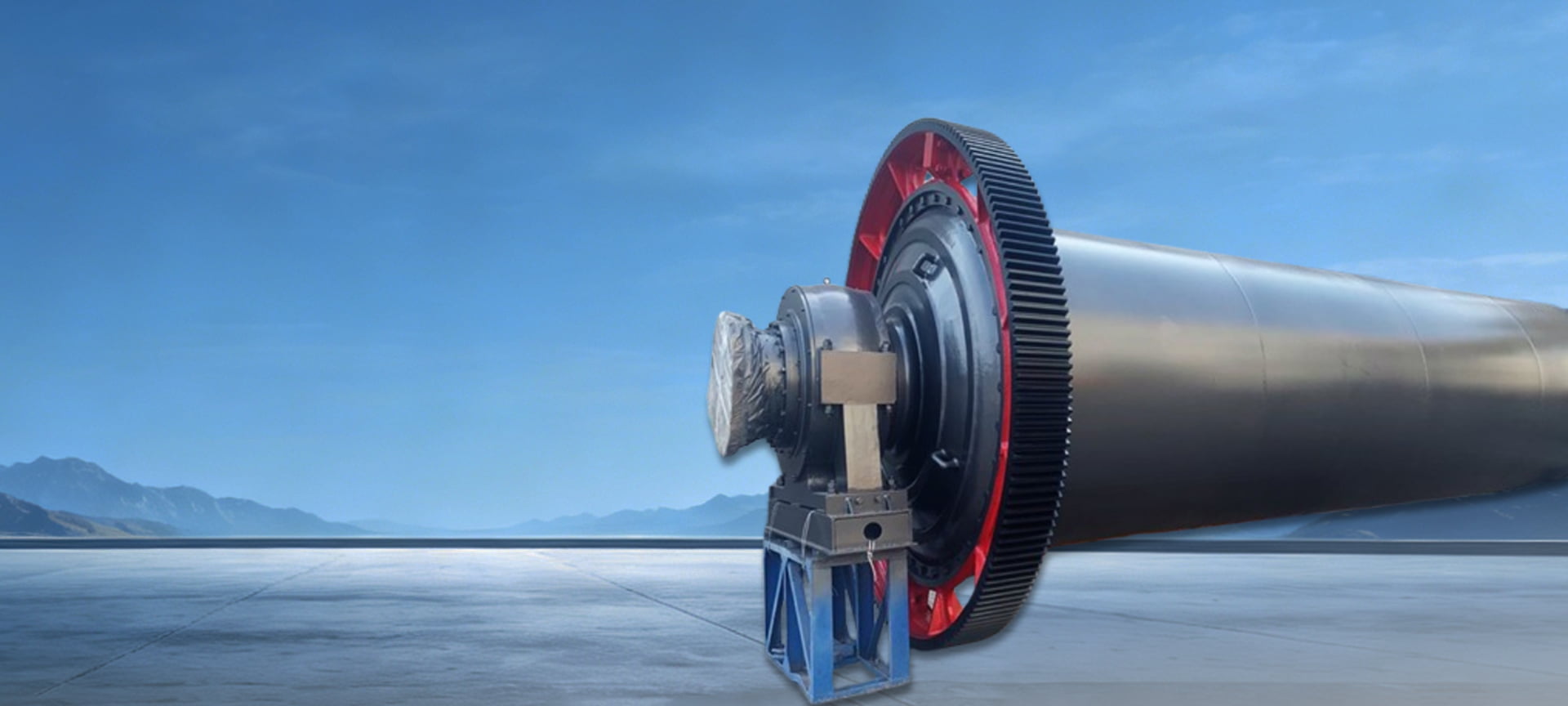

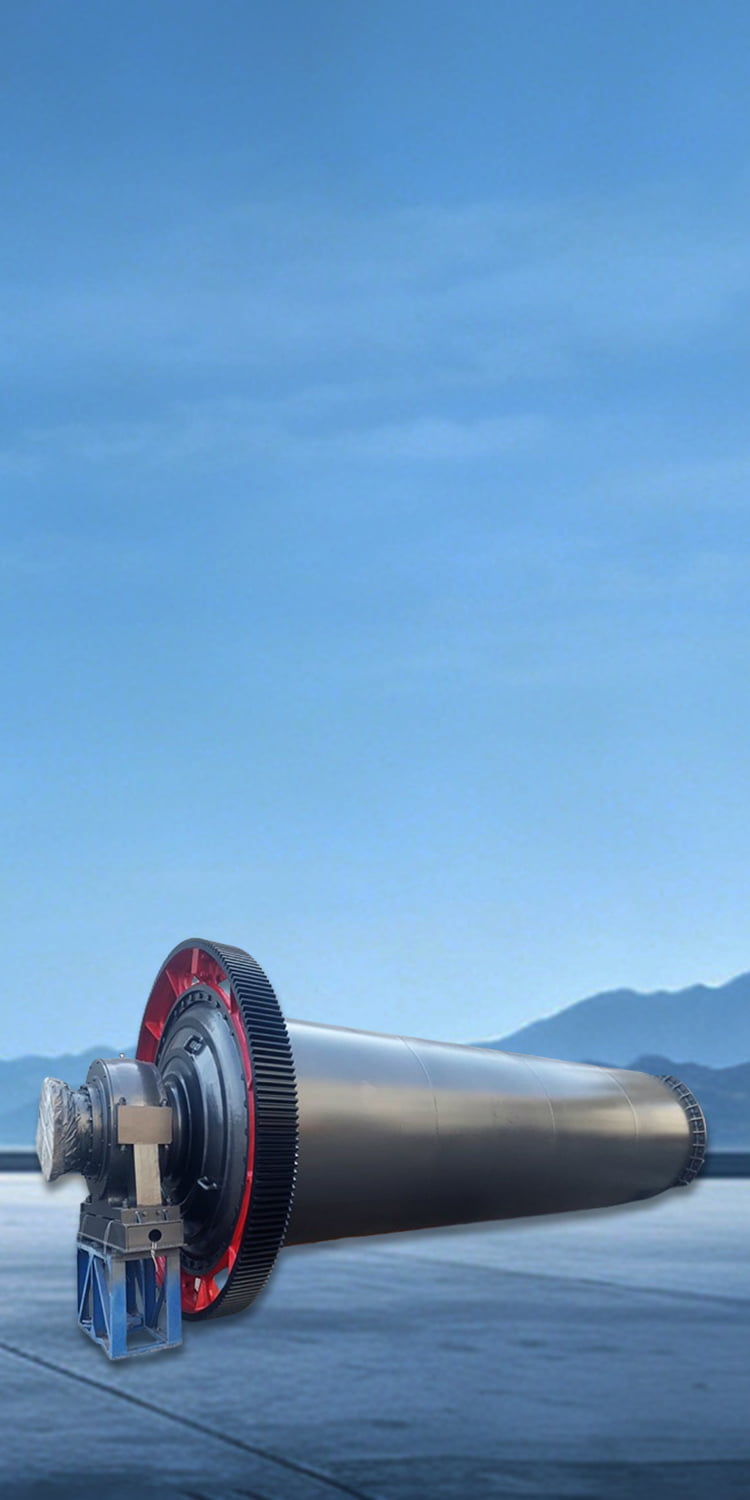

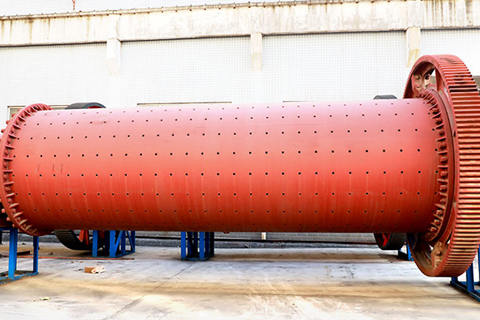

Raw material mills are widely used in the production of cement, silicate products, new building materials, refractory materials, and glass ceramics, for grinding various ores and other grindable materials. Through long-term exploration and summarization in the design and production process, our company has developed a series of products in different specifications to meet the functional requirements of different materials. We are particularly outstanding in the grinding of materials such as slag and cement. Our company can also provide customized designs for different materials, output fineness, and special process requirements.
The internal cylinder uses new grading liners and standard stepped liners, increasing the material grinding surface area and resulting in better grading.
The new compartment structure uses adjustable and fixed lifting plates, making installation easy and subsequent maintenance and replacement simpler.
The raw material mill has a single-compartment structure with a combined design of the mill liners. Different liner structures are used for different stages of the raw material grinding process, greatly improving grinding efficiency.
Utilizing high-fineness screening and grinding technology, it incorporates a specially structured double-layer compartment device, activated liners, and a mill tail discharge device to meet customers' requirements for grinding fineness.
| (Dia.×Length) (m) |
Speed (r/min) |
Feeding Size (mm) |
Griding Media Loading (t) |
Main Motor (KW) |
Main Reducer |
| Φ2.2×7.0 | 21.7 | <25 | 35 | 380 | ZD70 |
| Φ2.2×7.5 | 21.7 | <25 | 35 | 380 | ZD70 |
| Φ2.2×8.0 | 21.5 | <25 | 36 | 480 | ZD70 |
| Φ2.2×9.0 | 21.5 | <25 | 40 | 480 | ZD70 |
| Φ2.4×7.0 | 21.5 | <25 | 36.5 | 480 | ZD70 |
| Φ2.4×8.0 | 21.5 | <25 | 42 | 570 | ZD80 |
| Φ2.4×9.0 | 21.5 | <25 | 55 | 630 | ZD80 |
| Φ2.4×10 | 20.3 | <25 | 55 | 630 | ZD80 |
| Φ2.6×8.0 | 19.7 | <25 | 51 | 630 | MBY630 |
| Φ2.6×9.0 | 19.7 | <20 | 58 | 710 | MBY630 |
| Φ2.6×10 | 19.7 | <20 | 64 | 800 | MBY710 |
| Φ3.0×9.0 | 18.2 | <20 | 78 | 1000 | MBY800 |
| Φ3.0×11 | 18.2 | <20 | 95 | 1250 | MBY800 |
| Φ3.2×10 | 17.8 | <25 | 100 | 1400 | MBY900 |
| Φ3.2×11 | 17.8 | <25 | 110 | 1400 | MBY900 |
| Φ3.4×7.5 | 16.9 | <20 | 80 | 1000 | MBY800 |
| Φ3.4×7.5+1.8 | 16.9 | <20 | 70 | 1250 | MBY800 |
| Φ3.5×10 | 16.8 | <20 | 140 | 1600 | MBY1000 |
| Φ3.8×7.5 | 16.5 | <15 | 130 | 1600 | MBY1000 |
| Φ3.8×8.5 | 16.5 | <15 | 160 | 1800 | MBY1000 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| (Dia.×Length) (m) |
Speed (r/min) |
Feeding Size (mm) |
Griding Media Loading (t) |
| Φ2.2×7.0 | 21.7 | <25 | 35 |
| Φ2.2×7.5 | 21.7 | <25 | 35 |
| Φ2.2×8.0 | 21.5 | <25 | 36 |
| Φ2.2×9.0 | 21.5 | <25 | 40 |
| Φ2.4×7.0 | 21.5 | <25 | 36.5 |
| Φ2.4×8.0 | 21.5 | <25 | 42 |
| Φ2.4×9.0 | 21.5 | <25 | 55 |
| Φ2.4×10 | 20.3 | <25 | 55 |
| Φ2.6×8.0 | 19.7 | <25 | 51 |
| Φ2.6×9.0 | 19.7 | <20 | 58 |
| Φ2.6×10 | 19.7 | <20 | 64 |
| Φ3.0×9.0 | 18.2 | <20 | 78 |
| Φ3.0×11 | 18.2 | <20 | 95 |
| Φ3.2×10 | 17.8 | <25 | 100 |
| Φ3.2×11 | 17.8 | <25 | 110 |
| Φ3.4×7.5 | 16.9 | <20 | 80 |
| Φ3.4×7.5+1.8 | 16.9 | <20 | 70 |
| Φ3.5×10 | 16.8 | <20 | 140 |
| Φ3.8×7.5 | 16.5 | <15 | 130 |
| Φ3.8×8.5 | 16.5 | <15 | 160 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
