Feed size: ≤50mm
Capacity: 0.62-180t/h

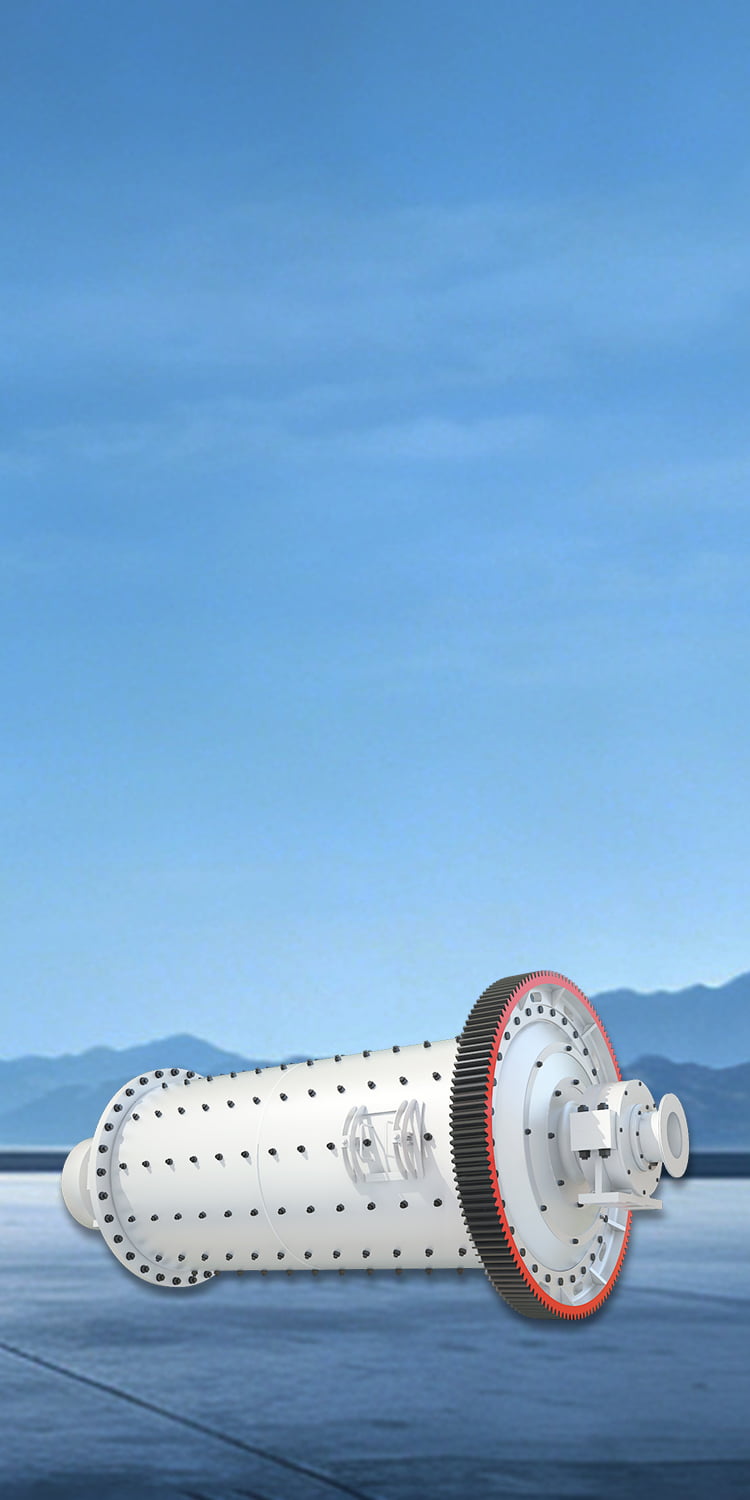

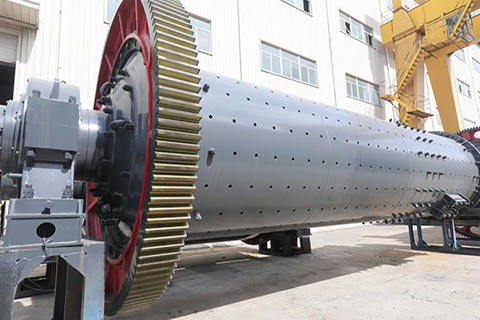

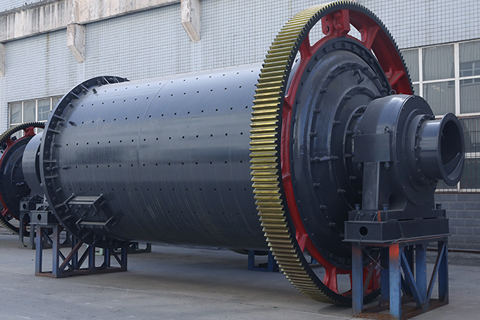

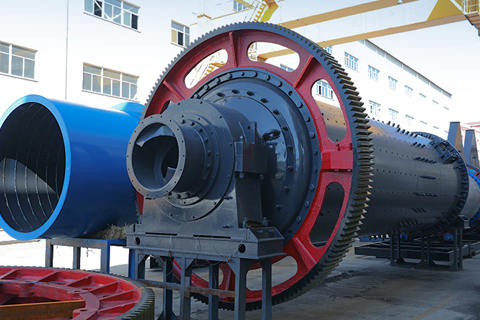

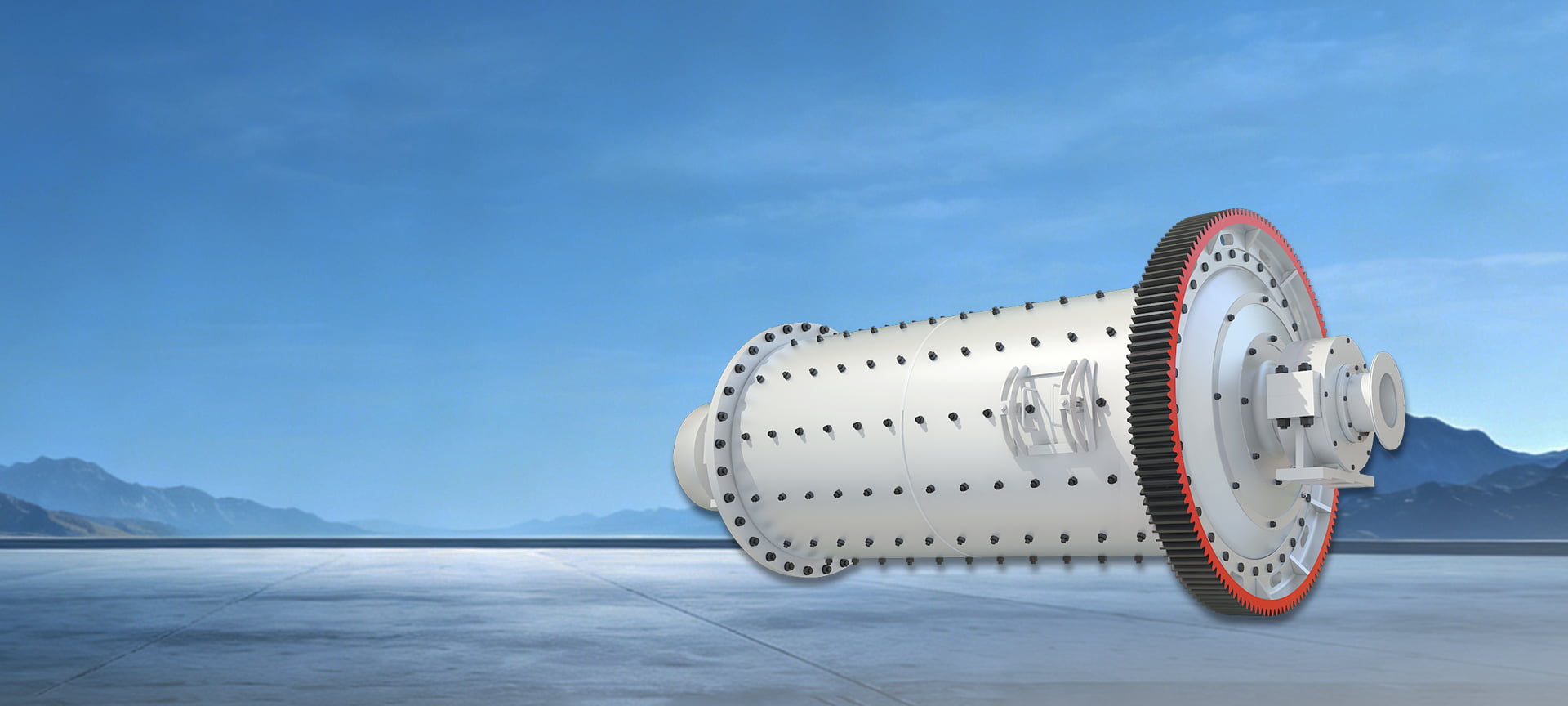

Rod mills are mainly used for processing and crushing ores such as feldspar, quartz, and pebbles. As the mill rotates, the steel rods rise to a certain height under the action of friction and centrifugal force and are then thrown down, causing the material to be continuously impacted and formed into sand.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
Saves over 40% of energy compared to traditional equipment, reducing costs
High medium sand content during sand making, resulting in good gradation continuity
Line contact collision is used, preventing secondary crushing of already pulverized materials and avoiding over-crushing, thus reducing powder output.
| Model | Cylinder | Effective Volume (m³) |
Max.Rod Loading (t) |
Speed (r/min) |
Main Motor (KW) |
|
| Diameter (mm) | Length (mm) | |||||
| MBS(Y)-1530 | 1500 | 3000 | 4.5 | 8 | 27 | 90 |
| MBS(Y)-1532 | 1500 | 3200 | 4.8 | 8.5 | 27 | 90 |
| MBS(Y)-1830 | 1830 | 3000 | 6.7 | 14 | 23.7 | 155 |
| MBS(Y)-1832 | 1830 | 3200 | 7.2 | 15 | 23.7 | 155~180 |
| MBS(Y)-2130 | 2100 | 3000 | 8.8 | 18 | 21.4 | 210 |
| MBS(Y)-2132 | 2100 | 3200 | 9.6 | 20 | 21.4 | 210 |
| MBS(Y)-2136 | 2100 | 3600 | 11 | 23 | 21.4 | 245 |
| MBS(Y)-2230 | 2200 | 3000 | 10 | 21 | 19 | 245 |
| MBS(Y)-2236 | 2200 | 3600 | 12 | 25 | 19 | 245 |
| MBS(Y)-2430 | 2400 | 3000 | 12 | 25 | 19 | 280 |
| MBS(Y)-2436 | 2400 | 3600 | 14 | 29 | 19 | 320 |
| MBS(Y)-2730 | 2700 | 3000 | 15.5 | 32.5 | 18.4 | 355 |
| MBS(Y)-2736 | 2700 | 3600 | 18 | 38 | 18.4 | 400 |
| MBS(Y)-2740 | 2700 | 4000 | 20.6 | 43 | 18.4 | 480 |
| MBS(Y)-3040 | 3000 | 4000 | 25.7 | 54 | 17 | 630 |
| MBS(Y)-3230 | 3200 | 3000 | 21 | 44 | 16.4 | 500 |
| MBS(Y)-3245 | 3200 | 4500 | 32 | 67 | 16.4 | 800 |
| MBS(Y)-3642 | 3600 | 4200 | 38 | 79.5 | 15.8 | 1000 |
| MBS(Y)-3645 | 3600 | 4500 | 40.8 | 85 | 15.8 | 1000~1250 |
| MBS(Y)-3650 | 3600 | 5000 | 46 | 96 | 15.8 | 1250 |
| MBS(Y)-3660 | 3600 | 6000 | 54 | 113 | 15.8 | 1400 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Effective Volume (m³) |
Max.Rod Loading (t) |
Speed (r/min) |
| MBS(Y)-1530 | 4.5 | 8 | 27 |
| MBS(Y)-1532 | 4.8 | 8.5 | 27 |
| MBS(Y)-1830 | 6.7 | 14 | 23.7 |
| MBS(Y)-1832 | 7.2 | 15 | 23.7 |
| MBS(Y)-2130 | 8.8 | 18 | 21.4 |
| MBS(Y)-2132 | 9.6 | 20 | 21.4 |
| MBS(Y)-2136 | 11 | 23 | 21.4 |
| MBS(Y)-2230 | 10 | 21 | 19 |
| MBS(Y)-2236 | 12 | 25 | 19 |
| MBS(Y)-2430 | 12 | 25 | 19 |
| MBS(Y)-2436 | 14 | 29 | 19 |
| MBS(Y)-2730 | 15.5 | 32.5 | 18.4 |
| MBS(Y)-2736 | 18 | 38 | 18.4 |
| MBS(Y)-2740 | 20.6 | 43 | 18.4 |
| MBS(Y)-3040 | 25.7 | 54 | 17 |
| MBS(Y)-3230 | 21 | 44 | 16.4 |
| MBS(Y)-3245 | 32 | 67 | 16.4 |
| MBS(Y)-3642 | 38 | 79.5 | 15.8 |
| MBS(Y)-3645 | 40.8 | 85 | 15.8 |
| MBS(Y)-3650 | 46 | 96 | 15.8 |
| MBS(Y)-3660 | 54 | 113 | 15.8 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
