Feed size: ≤40mm
Capacity: 100-500t/h
It adopts a highly intensive tower-style fully enclosed layout, integrating sand making, particle shape optimization, stone powder control, gradation adjustment, moisture content control, and environmental protection treatment.
This not only significantly improves production efficiency but also enhances various indicators such as particle shape, gradation, and powder content of manufactured sand and gravel.

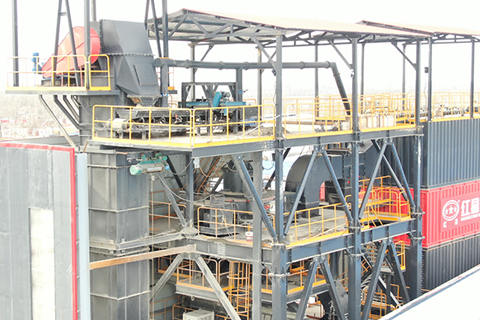

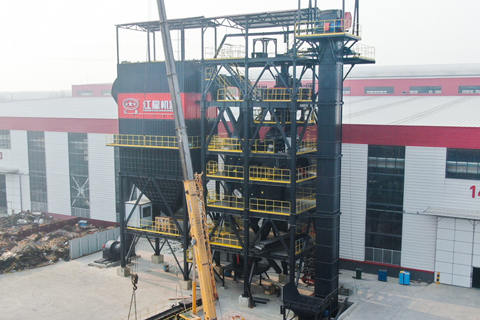

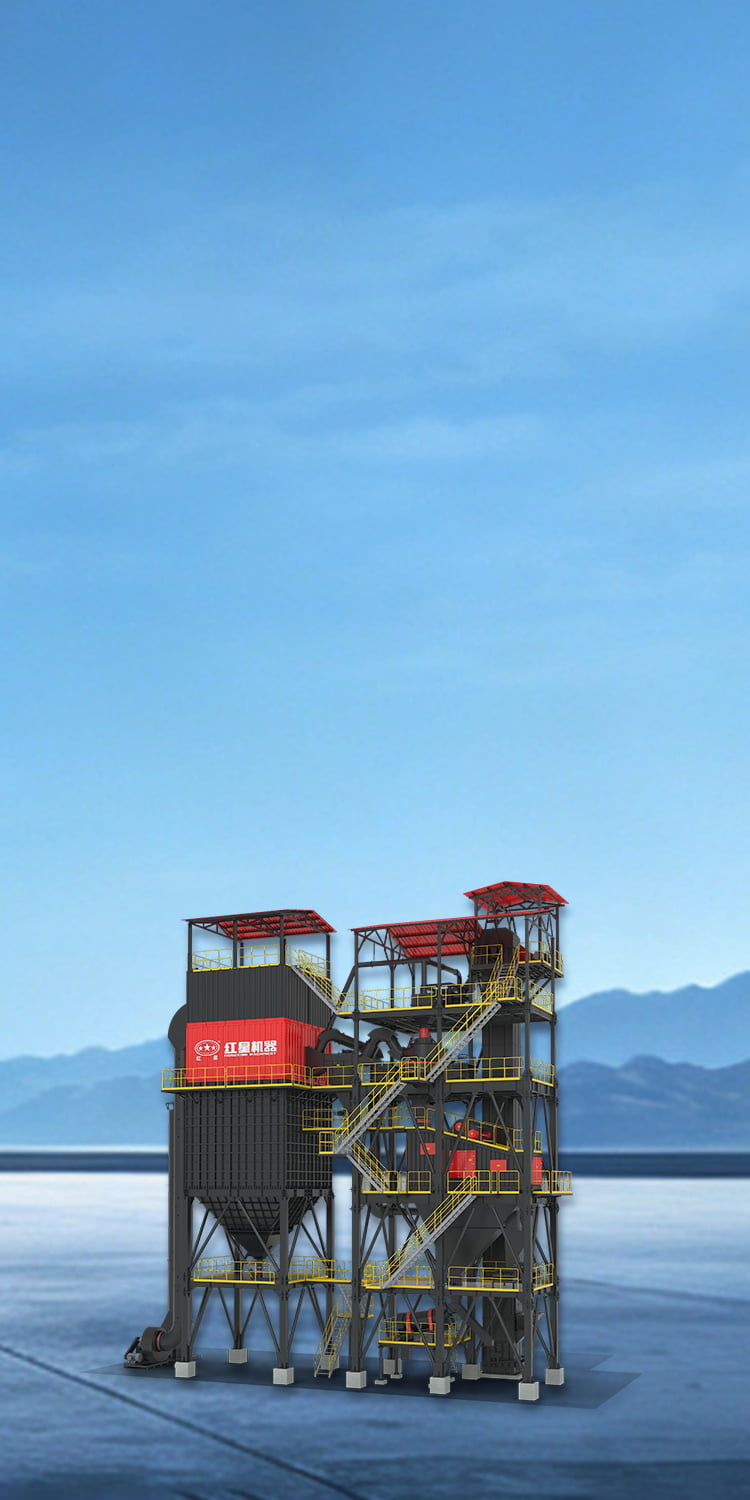

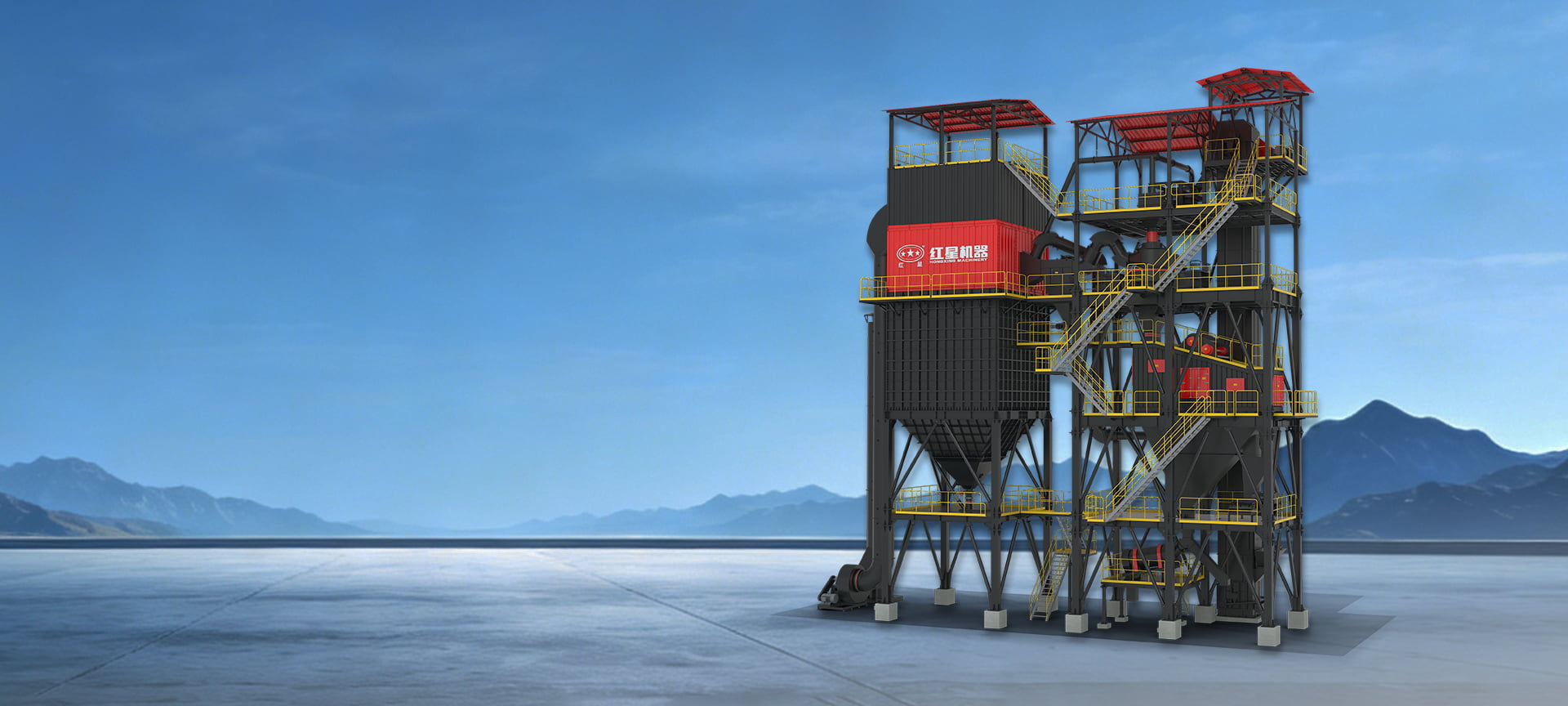

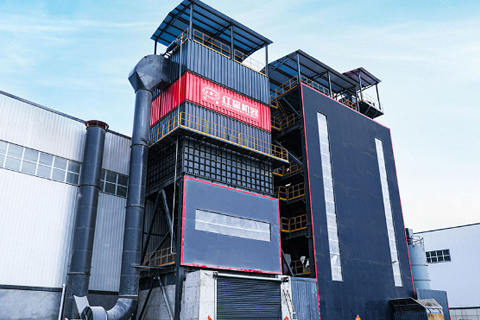

The highly compact, tower-style, fully enclosed layout utilizes a three-dimensional arrangement, significantly reducing the total floor space required and minimizing land resource investment for users. The entire system employs a steel structure building and modular assembly, making installation quicker and more convenient. The overall layout is compact and efficient, with a smooth process design.
After shaping, the aggregate is uniform in size, has a complete particle shape, is multi-faceted, and has a reasonable gradation, meeting the requirements for high-quality aggregates in ≥C60 concrete, PC components, and high-speed rail and highway applications.
The entire production system outputs sand and gravel simultaneously after shaping, resulting in high production efficiency and the simultaneous production of high-quality aggregates and manufactured sand.
Enables online monitoring of the production process and real-time adjustment of the entire equipment's operating status. It features one-button start/stop, abnormal alarms, and emergency shutdown functions, ensuring the quality of the finished sand and the safety and stability of the production process.
| Model | Input size（mm） | Capacity（t/h） | output of manufactured sand |
Power（KW） | Overall dimension L×W×H （M） |
|
| Sand Making | Sand and Gravel Making |
|||||
| S7M-310 | 0-30 | 100 | 300 | 3-15% | 620 | 30x8x24 |
| S7M-510 | 0-30 | 150 | 450 | 3-15% | 850 | 30x8x26 |
| S7M II-310 | 0-40 | - | 300 | 3-15% | 670 | 30x11x24 |
| S7M II-510 | 0-40 | - | 500 | 3-15% | 910 | 30x11x26 |
Raw material moisture content: mud content of feeding <1%, water content <2%
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Input size（mm） | Capacity（t/h） | output of manufactured sand |
|
| Sand Making | Sand and Gravel Making |
|||
| S7M-310 | 0-30 | 100 | 300 | 3-15% |
| S7M-510 | 0-30 | 150 | 450 | 3-15% |
| S7M II-310 | 0-40 | - | 300 | 3-15% |
| S7M II-510 | 0-40 | - | 500 | 3-15% |
Raw material moisture content: mud content of feeding <1%, water content <2%
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
