Feed size: ≤345mm
Capacity: 61-1789t/h

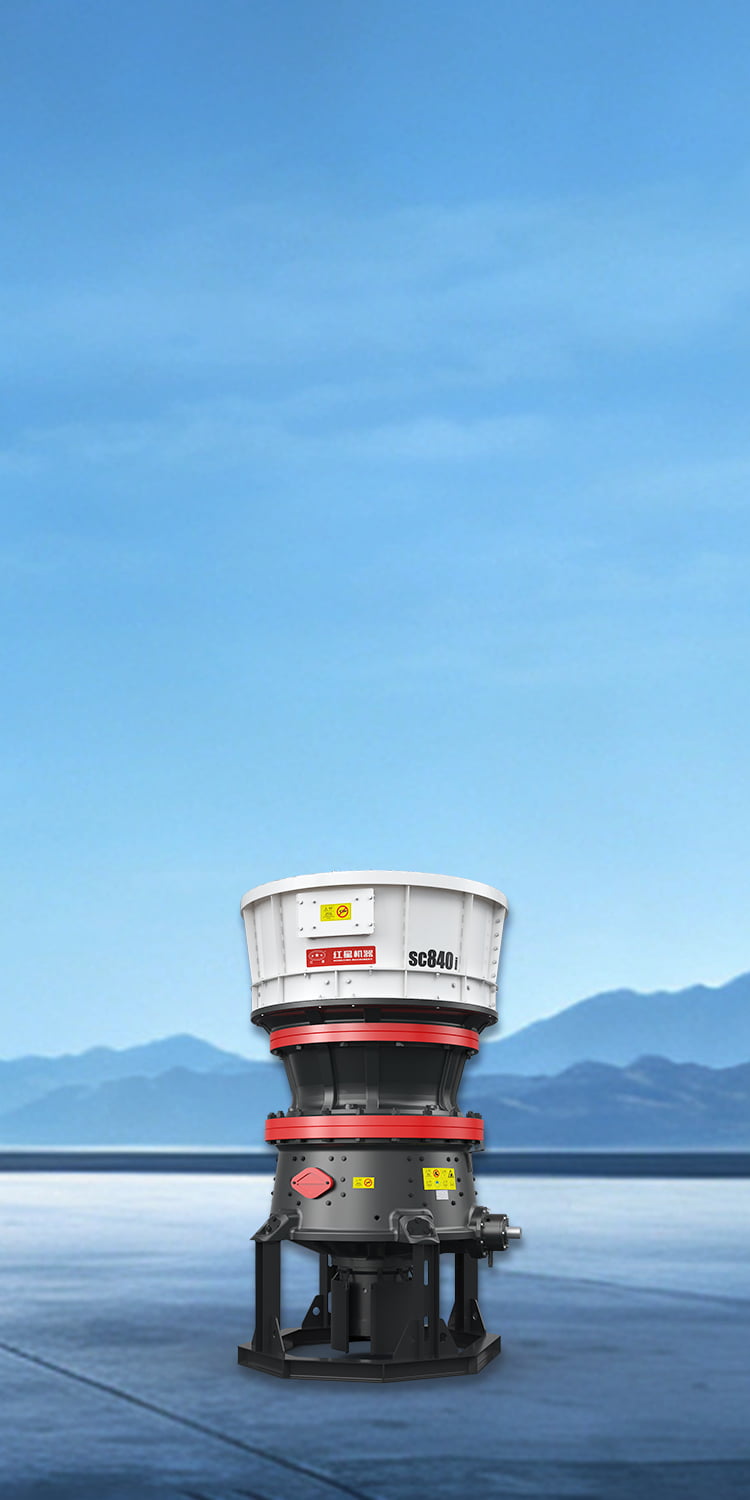

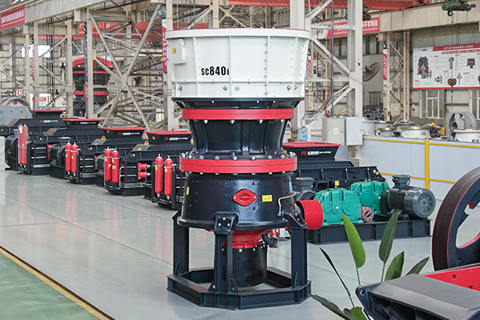

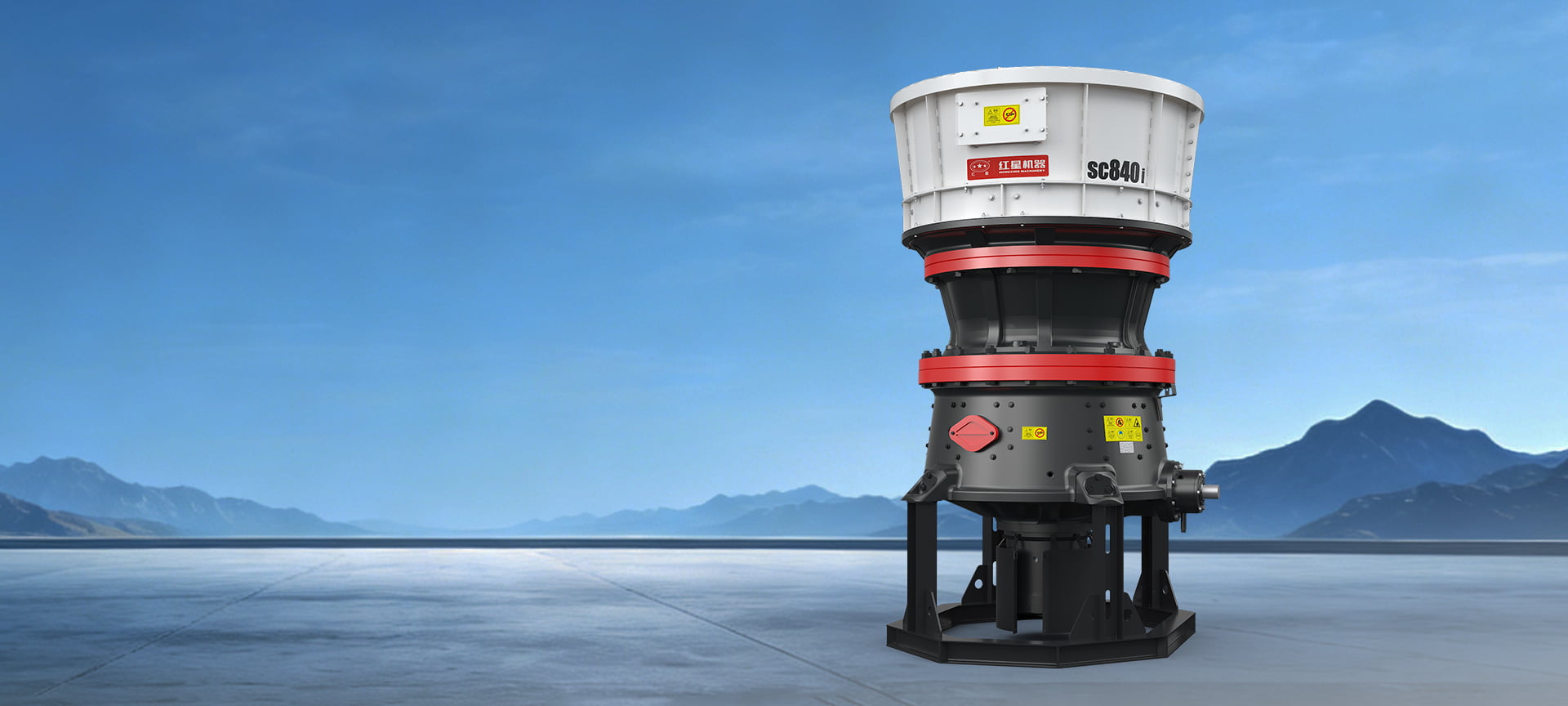

The Hongxing Group SC/H800i series single-cylinder cone crusher is a new generation product representing a comprehensive upgrade from the SC series cone crusher, developed based on market demand and with a focus on cutting-edge technology.
While inheriting many advantages of the SC series, this series features a larger eccentricity, increased rotational speed, and a larger crushing ratio chamber design, thereby improving throughput and finished product yield while reducing energy consumption.
The equipment incorporates advanced internet concepts: 24/7 connectivity to an IoT platform effectively improves productivity, predicts performance, and maximizes equipment uptime.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
Using an industrial IoT platform allows for 24/7 access to crusher production data, enabling predictive maintenance and improved equipment utilization;
The upper and lower frames and main shaft have been reinforced, significantly improving the reliability of the equipment;
The standard offline filtration system ensures all-weather filtration of lubricating oil, reducing internal wear on crusher parts and extending lubricating oil life by up to 5 times;
can track all operational data, and can quickly complete parameter optimization, fault handling, and maintenance.
Global coverage, consistent quality, trusted by customers worldwide.
| Model | Cavities | Feeding Size (mm) |
Maximum Feeding Size (mm) |
Minimum Discharging Size (mm) |
Processing Capacity (t/h) |
Power (kw) |
| SC840i | C1 | 431 | 345 | 25 | 230-659 | 315 |
| C2 | 345 | 275 | 22 | 212-645 | ||
| SH830i | F1 | 211 | 169 | 13 | 113-283 | 250 |
| F2 | 93 | 74 | 8 | 84-212 | ||
| F3 | 61 | 49 | 5 | 61-139 | ||
| SH840i | F1 | 250 | 200 | 16 | 162-371 | 315 |
| F2 | 159 | 127 | 16 | 187-406 | ||
| F3 | 73 | 58 | 10 | 126-232 | ||
| SH860i | F1 | 315 | 252 | 16 | 259-799 | 500 |
| F2 | 169 | 135 | 16 | 281-867 | ||
| SH865i | F3 | 85 | 68 | 10 | 179-468 | |
| SH870i | F1 | 350 | 280 | 25 | 392-1173 | 630 |
| F2 | 184 | 147 | 19 | 351-1195 | ||
| F3 | 99 | 79 | 13 | 236-747 | ||
| SH890i | F1 | 428 | 342 | 25 | 488-1670 | 800 |
| F2 | 302 | 242 | 22 | 524-1789 | ||
| F3 | 219 | 175 | 19 | 460-1677 | ||
| SH895i | F4 | 112 | 90 | 13 | 291-910 | |
| F5 | 89 | 71 | 10 | 258-839 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cavities | Feeding Size (mm) |
Processing Capacity (t/h) |
| SC840i | C1 | 431 | 230-659 |
| C2 | 345 | 212-645 | |
| SH830i | F1 | 211 | 113-283 |
| F2 | 93 | 84-212 | |
| F3 | 61 | 61-139 | |
| SH840i | F1 | 250 | 162-371 |
| F2 | 159 | 187-406 | |
| F3 | 73 | 126-232 | |
| SH860i | F1 | 315 | 259-799 |
| F2 | 169 | 281-867 | |
| SH865i | F3 | 85 | 179-468 |
| SH870i | F1 | 350 | 392-1173 |
| F2 | 184 | 351-1195 | |
| F3 | 99 | 236-747 | |
| SH890i | F1 | 428 | 488-1670 |
| F2 | 302 | 524-1789 | |
| F3 | 219 | 460-1677 | |
| SH895i | F4 | 112 | 291-910 |
| F5 | 89 | 258-839 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
SC Single Cylinder Cone Crusher Medium Crushing Series
| Model | Cavities | Feeding Size （mm） |
Maximum Feeding Size （mm） |
Minimum Discharging Size （mm） |
Power （kw） |
Capacity （t/h） |
| SC100S | C1 | 240 | 175 | 22 | 90 | 85-170 |
| C2 | 200 | 160 | 19 | 70-130 | ||
| SC160S | C1 | 360 | 290 | 25 | 160 | 125-345 |
| C2 | 300 | 240 | 22 | 108-305 | ||
| SC250S | C1 | 450 | 360 | 35 | 250 | 265-524 |
| C2 | 400 | 320 | 29 | 225-448 | ||
| SC315S | C1 | 560 | 450 | 41 | 315 | 349-1050 |
| C2 | 500 | 400 | 38 | 318-892 | ||
| SC450S | C1 | 600 | 480 | 44 | 450 | 498-1500 |
| C2 | 480 | 385 | 41 | 454-1274 |
SC Single Cylinder Cone Crusher Fine Crushing Series
| Model | Cavities | Feeding Size （mm） |
Maximum Feeding Size （mm） |
Minimum Discharging Size （mm） |
Power （kw） |
Capacity （t/h） |
| SC100 | F1 | 150 | 120 | 10 | 90 | 45-135 |
| F2 | 90 | 70 | 10 | 43-118 | ||
| F3 | 50 | 40 | 6 | 25-40 | ||
| SC160 | F1 | 200 | 160 | 13 | 160 | 69-215 |
| F2 | 115 | 90 | 10 | 57-184 | ||
| F3 | 75 | 60 | 8 | 70-90 | ||
| SC250 | F1 | 240 | 190 | 16 | 250 | 116-396 |
| F2 | 140 | 110 | 13 | 97-346 | ||
| F3 | 70 | 55 | 9 | 90-251 | ||
| SC315 | F1 | 275 | 220 | 32 | 315 | 177-662 |
| F2 | 215 | 170 | 29 | 209-643 | ||
| F3 | 175 | 140 | 29 | 162-552 | ||
| F4 | 85 | 70 | 19 | 175-325 | ||
| SC560 | F1 | 300 | 240 | 22 | 560 | 448-1512 |
| F2 | 195 | 155 | 19 | 380-1373 | ||
| F3 | 90 | 70 | 13 | 357-912 | ||
| SC750 | F1 | 370 | 295 | 25 | 750 | 394-2181 |
| F2 | 300 | 240 | 19 | 342-2020 | ||
| F3 | 230 | 185 | 16 | 267-1814 | ||
| F4 | 120 | 95 | 13 | 248-1165 | ||
| F5 | 85 | 70 | 10 | 185-1170 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
SC Single Cylinder Cone Crusher Medium Crushing Series
| Model | Cavities | Feeding Size （mm） |
Capacity （t/h） |
| SC100S | C1 | 240 | 85-170 |
| C2 | 200 | 70-130 | |
| SC160S | C1 | 360 | 125-345 |
| C2 | 300 | 108-305 | |
| SC250S | C1 | 450 | 265-524 |
| C2 | 400 | 225-448 | |
| SC315S | C1 | 560 | 349-1050 |
| C2 | 500 | 318-892 | |
| SC450S | C1 | 600 | 498-1500 |
| C2 | 480 | 454-1274 |
SC Single Cylinder Cone Crusher Fine Crushing Series
| Model | Cavities | Feeding Size （mm） |
Capacity （t/h） |
| SC100 | F1 | 150 | 45-135 |
| F2 | 90 | 43-118 | |
| F3 | 50 | 25-40 | |
| SC160 | F1 | 200 | 69-215 |
| F2 | 115 | 57-184 | |
| F3 | 75 | 70-90 | |
| SC250 | F1 | 240 | 116-396 |
| F2 | 140 | 97-346 | |
| F3 | 70 | 90-251 | |
| SC315 | F1 | 275 | 177-662 |
| F2 | 215 | 209-643 | |
| F3 | 175 | 162-552 | |
| F4 | 85 | 175-325 | |
| SC560 | F1 | 300 | 448-1512 |
| F2 | 195 | 380-1373 | |
| F3 | 90 | 357-912 | |
| SC750 | F1 | 370 | 394-2181 |
| F2 | 300 | 342-2020 | |
| F3 | 230 | 267-1814 | |
| F4 | 120 | 248-1165 | |
| F5 | 85 | 185-1170 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cavities | Max.Feeding Size(mm) | Minimum Discharging Size(mm) | Processing Capacity(t/h) | Speed(r/m) | Power(kW) |
| HPM200 | C1 | 185 | 19 | 150-250 | 750-1200 | 160 |
| C2 | 125 | 17 | 140-250 | |||
| C3 | 95 | 13 | 120-250 | |||
| F1 | 76 | 10 | 90-210 | |||
| F2 | 54 | 6 | 80-210 | |||
| F3 | 23 | 5 | 70-210 | |||
| F4 | 10 | 6 | 80-210 | |||
| HPM300 | C1 | 235 | 25 | 230-445 | 700-1200 | 220 |
| C2 | 211 | 19 | 200-445 | |||
| C3 | 150 | 17 | 180-445 | |||
| C4 | 107 | 13 | 150-445 | |||
| F1 | 77 | 10 | 115-260 | |||
| F2 | 53 | 8 | 110-260 | |||
| F3 | 22 | 6 | 105-260 | |||
| F4 | 25 | 6 | 105-260 | |||
| HPM400 | C1 | 299 | 30 | 315-630 | 700-1000 | 315 |
| C2 | 252 | 25 | 295-630 | |||
| C3 | 198 | 20 | 260-630 | |||
| C4 | 111 | 14 | 190-630 | |||
| F1 | 92 | 10 | 140-370 | |||
| F2 | 52 | 8 | 130-370 | |||
| F3 | 51 | 6 | 120-370 | |||
| F4 | 52 | 6 | 120-370 | |||
| HPM500 | C1 | 335 | 30 | 390-790 | 700-950 | 400 |
| C2 | 286 | 25 | 365-790 | |||
| C3 | 204 | 20 | 325-790 | |||
| C4 | 133 | 16 | 280-790 | |||
| F1 | 95 | 13 | 230-450 | |||
| F2 | 57 | 10 | 175-450 | |||
| F3 | 52 | 8 | 165-450 | |||
| F4 | 53 | 6 | 155-450 | |||
| HPM650 | C1 | 328 | 30 | 386-790 | 590-930 | 500 |
| C2 | 279 | 25 | 348-790 | |||
| C3 | 196 | 20 | 300-790 | |||
| F1 | 106 | 13 | 280-530 | |||
| F2 | 52 | 9 | 220-530 | |||
| HPM800 | C1 | 353 | 32 | 545-1100 | 700-950 | 630 |
| C2 | 297 | 32 | 545-1100 | |||
| C3 | 267 | 25 | 495-1100 | |||
| C4 | 219 | 16 | 385-1100 | |||
| F1 | 155 | 13 | 325-730 | |||
| F2 | 92 | 10 | 260-730 | |||
| F3 | 33 | 5 | 200-730 |
| Model | Cavities | Max.Feeding Size(mm) |
Processing Capacity(t/h) |
| HPM200 | C1 | 185 | 150-250 |
| C2 | 125 | 140-250 | |
| C3 | 95 | 120-250 | |
| F1 | 76 | 90-210 | |
| F2 | 54 | 80-210 | |
| F3 | 23 | 70-210 | |
| F4 | 10 | 80-210 | |
| HPM300 | C1 | 235 | 230-445 |
| C2 | 211 | 200-445 | |
| C3 | 150 | 180-445 | |
| C4 | 107 | 150-445 | |
| F1 | 77 | 115-260 | |
| F2 | 53 | 110-260 | |
| F3 | 22 | 105-260 | |
| F4 | 25 | 105-260 | |
| HPM400 | C1 | 299 | 315-630 |
| C2 | 252 | 295-630 | |
| C3 | 198 | 260-630 | |
| C4 | 111 | 190-630 | |
| F1 | 92 | 140-370 | |
| F2 | 52 | 130-370 | |
| F3 | 51 | 120-370 | |
| F4 | 52 | 120-370 | |
| HPM500 | C1 | 335 | 390-790 |
| C2 | 286 | 365-790 | |
| C3 | 204 | 325-790 | |
| C4 | 133 | 280-790 | |
| F1 | 95 | 230-450 | |
| F2 | 57 | 175-450 | |
| F3 | 52 | 165-450 | |
| F4 | 53 | 155-450 | |
| HPM650 | C1 | 328 | 386-790 |
| C2 | 279 | 348-790 | |
| C3 | 196 | 300-790 | |
| F1 | 106 | 280-530 | |
| F2 | 52 | 220-530 | |
| HPM800 | C1 | 353 | 545-1100 |
| C2 | 297 | 545-1100 | |
| C3 | 267 | 495-1100 | |
| C4 | 219 | 385-1100 | |
| F1 | 155 | 325-730 | |
| F2 | 92 | 260-730 | |
| F3 | 33 | 200-730 |
Our global service network is ready to provide on-site technical support, genuine parts, and 24/7 assistance for your crushing projects.
