Feed size: ≤480mm
Capacity: 36-2181t/h

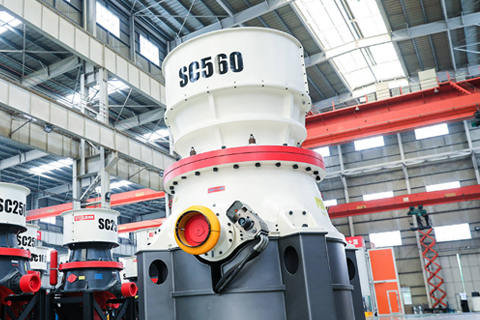

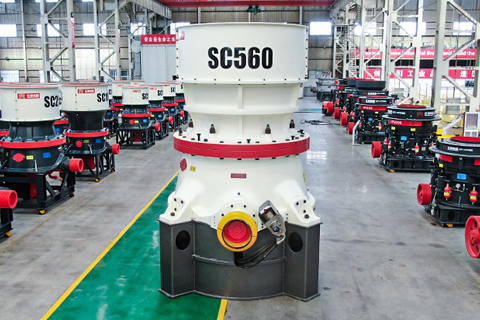

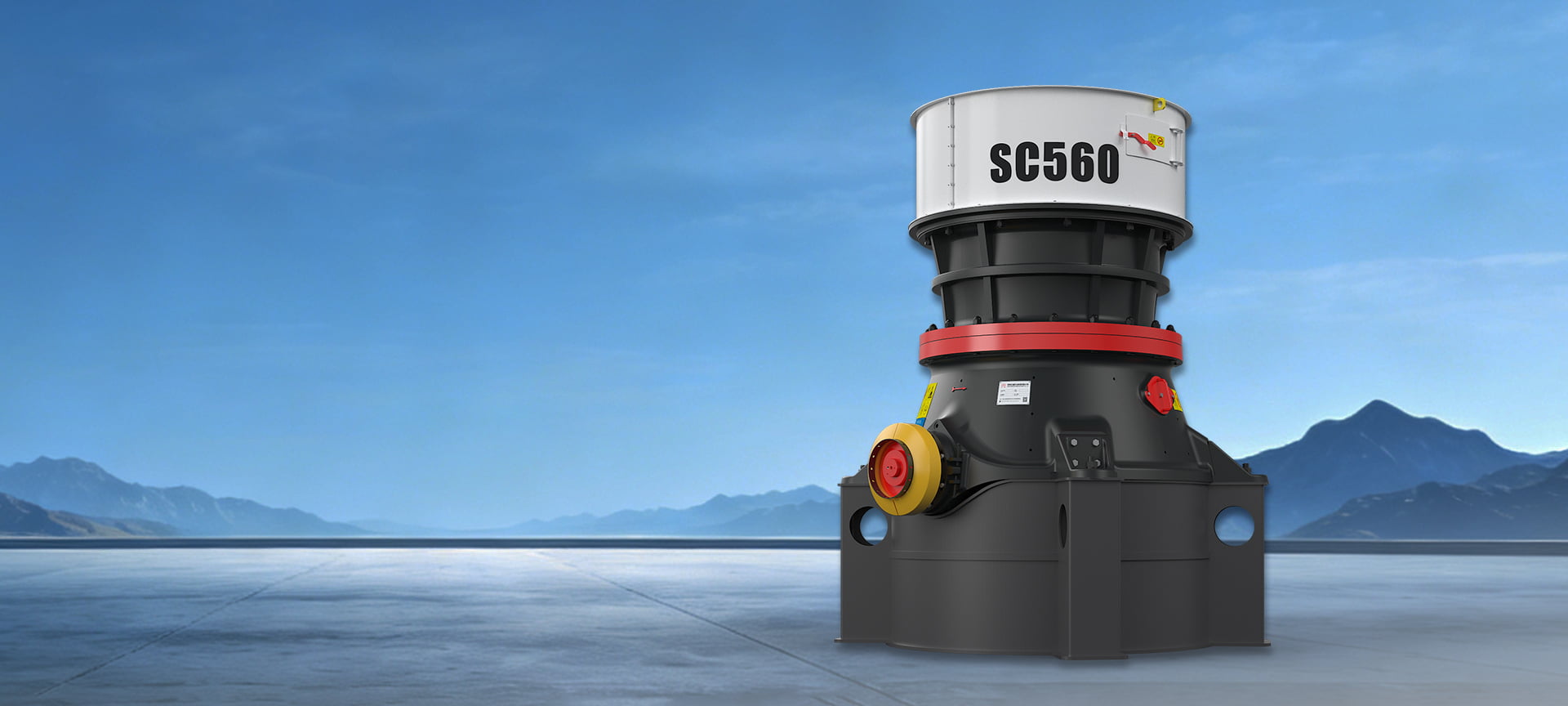

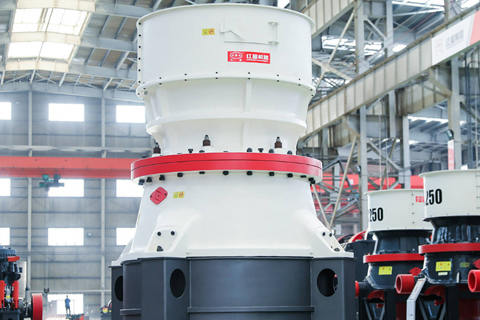

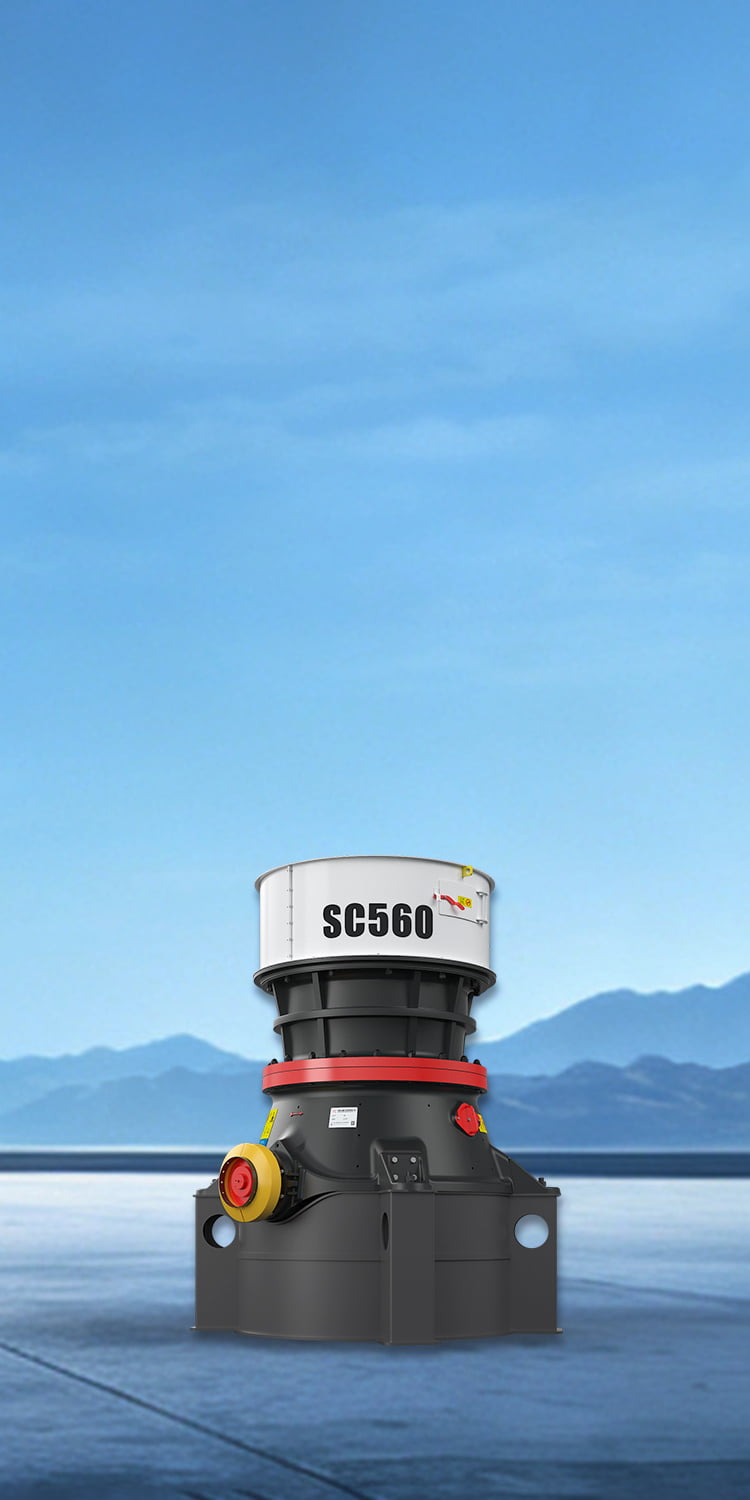

The SC (S) series single-cylinder hydraulic cone crusher is developed using advanced crushing technology.
It integrates mechanical, hydraulic, electrical, intelligent control, and Internet control systems, and can be widely used in medium, fine, and ultrafine crushing operations.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
Simple structure, high reliability, easy maintenance, and low operating cost
Extends liner service life
Quicker and more convenient replacement, reducing downtime
Fully automatic PLC control system ensures safe equipment operation
Global coverage, consistent quality, trusted by customers worldwide.
| Model | Cavities | Feeding Size (mm) |
Maximum Feeding Size (mm) |
Minimum Discharging Size (mm) |
Processing Capacity (t/h) |
Power (kw) |
| SC840i | C1 | 431 | 345 | 25 | 230-659 | 315 |
| C2 | 345 | 275 | 22 | 212-645 | ||
| SH830i | F1 | 211 | 169 | 13 | 113-283 | 250 |
| F2 | 93 | 74 | 8 | 84-212 | ||
| F3 | 61 | 49 | 5 | 61-139 | ||
| SH840i | F1 | 250 | 200 | 16 | 162-371 | 315 |
| F2 | 159 | 127 | 16 | 187-406 | ||
| F3 | 73 | 58 | 10 | 126-232 | ||
| SH860i | F1 | 315 | 252 | 16 | 259-799 | 500 |
| F2 | 169 | 135 | 16 | 281-867 | ||
| SH865i | F3 | 85 | 68 | 10 | 179-468 | |
| SH870i | F1 | 350 | 280 | 25 | 392-1173 | 630 |
| F2 | 184 | 147 | 19 | 351-1195 | ||
| F3 | 99 | 79 | 13 | 236-747 | ||
| SH890i | F1 | 428 | 342 | 25 | 488-1670 | 800 |
| F2 | 302 | 242 | 22 | 524-1789 | ||
| F3 | 219 | 175 | 19 | 460-1677 | ||
| SH895i | F4 | 112 | 90 | 13 | 291-910 | |
| F5 | 89 | 71 | 10 | 258-839 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cavities | Feeding Size (mm) |
Processing Capacity (t/h) |
| SC840i | C1 | 431 | 230-659 |
| C2 | 345 | 212-645 | |
| SH830i | F1 | 211 | 113-283 |
| F2 | 93 | 84-212 | |
| F3 | 61 | 61-139 | |
| SH840i | F1 | 250 | 162-371 |
| F2 | 159 | 187-406 | |
| F3 | 73 | 126-232 | |
| SH860i | F1 | 315 | 259-799 |
| F2 | 169 | 281-867 | |
| SH865i | F3 | 85 | 179-468 |
| SH870i | F1 | 350 | 392-1173 |
| F2 | 184 | 351-1195 | |
| F3 | 99 | 236-747 | |
| SH890i | F1 | 428 | 488-1670 |
| F2 | 302 | 524-1789 | |
| F3 | 219 | 460-1677 | |
| SH895i | F4 | 112 | 291-910 |
| F5 | 89 | 258-839 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
SC Single Cylinder Cone Crusher Medium Crushing Series
| Model | Cavities | Feeding Size （mm） |
Maximum Feeding Size （mm） |
Minimum Discharging Size （mm） |
Power （kw） |
Capacity （t/h） |
| SC100S | C1 | 240 | 175 | 22 | 90 | 85-170 |
| C2 | 200 | 160 | 19 | 70-130 | ||
| SC160S | C1 | 360 | 290 | 25 | 160 | 125-345 |
| C2 | 300 | 240 | 22 | 108-305 | ||
| SC250S | C1 | 450 | 360 | 35 | 250 | 265-524 |
| C2 | 400 | 320 | 29 | 225-448 | ||
| SC315S | C1 | 560 | 450 | 41 | 315 | 349-1050 |
| C2 | 500 | 400 | 38 | 318-892 | ||
| SC450S | C1 | 600 | 480 | 44 | 450 | 498-1500 |
| C2 | 480 | 385 | 41 | 454-1274 |
SC Single Cylinder Cone Crusher Fine Crushing Series
| Model | Cavities | Feeding Size （mm） |
Maximum Feeding Size （mm） |
Minimum Discharging Size （mm） |
Power （kw） |
Capacity （t/h） |
| SC100 | F1 | 150 | 120 | 10 | 90 | 45-135 |
| F2 | 90 | 70 | 10 | 43-118 | ||
| F3 | 50 | 40 | 6 | 25-40 | ||
| SC160 | F1 | 200 | 160 | 13 | 160 | 69-215 |
| F2 | 115 | 90 | 10 | 57-184 | ||
| F3 | 75 | 60 | 8 | 70-90 | ||
| SC250 | F1 | 240 | 190 | 16 | 250 | 116-396 |
| F2 | 140 | 110 | 13 | 97-346 | ||
| F3 | 70 | 55 | 9 | 90-251 | ||
| SC315 | F1 | 275 | 220 | 32 | 315 | 177-662 |
| F2 | 215 | 170 | 29 | 209-643 | ||
| F3 | 175 | 140 | 29 | 162-552 | ||
| F4 | 85 | 70 | 19 | 175-325 | ||
| SC560 | F1 | 300 | 240 | 22 | 560 | 448-1512 |
| F2 | 195 | 155 | 19 | 380-1373 | ||
| F3 | 90 | 70 | 13 | 357-912 | ||
| SC750 | F1 | 370 | 295 | 25 | 750 | 394-2181 |
| F2 | 300 | 240 | 19 | 342-2020 | ||
| F3 | 230 | 185 | 16 | 267-1814 | ||
| F4 | 120 | 95 | 13 | 248-1165 | ||
| F5 | 85 | 70 | 10 | 185-1170 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
SC Single Cylinder Cone Crusher Medium Crushing Series
| Model | Cavities | Feeding Size （mm） |
Capacity （t/h） |
| SC100S | C1 | 240 | 85-170 |
| C2 | 200 | 70-130 | |
| SC160S | C1 | 360 | 125-345 |
| C2 | 300 | 108-305 | |
| SC250S | C1 | 450 | 265-524 |
| C2 | 400 | 225-448 | |
| SC315S | C1 | 560 | 349-1050 |
| C2 | 500 | 318-892 | |
| SC450S | C1 | 600 | 498-1500 |
| C2 | 480 | 454-1274 |
SC Single Cylinder Cone Crusher Fine Crushing Series
| Model | Cavities | Feeding Size （mm） |
Capacity （t/h） |
| SC100 | F1 | 150 | 45-135 |
| F2 | 90 | 43-118 | |
| F3 | 50 | 25-40 | |
| SC160 | F1 | 200 | 69-215 |
| F2 | 115 | 57-184 | |
| F3 | 75 | 70-90 | |
| SC250 | F1 | 240 | 116-396 |
| F2 | 140 | 97-346 | |
| F3 | 70 | 90-251 | |
| SC315 | F1 | 275 | 177-662 |
| F2 | 215 | 209-643 | |
| F3 | 175 | 162-552 | |
| F4 | 85 | 175-325 | |
| SC560 | F1 | 300 | 448-1512 |
| F2 | 195 | 380-1373 | |
| F3 | 90 | 357-912 | |
| SC750 | F1 | 370 | 394-2181 |
| F2 | 300 | 342-2020 | |
| F3 | 230 | 267-1814 | |
| F4 | 120 | 248-1165 | |
| F5 | 85 | 185-1170 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cavities | Max.Feeding Size(mm) | Minimum Discharging Size(mm) | Processing Capacity(t/h) | Speed(r/m) | Power(kW) |
| HPM200 | C1 | 185 | 19 | 150-250 | 750-1200 | 160 |
| C2 | 125 | 17 | 140-250 | |||
| C3 | 95 | 13 | 120-250 | |||
| F1 | 76 | 10 | 90-210 | |||
| F2 | 54 | 6 | 80-210 | |||
| F3 | 23 | 5 | 70-210 | |||
| F4 | 10 | 6 | 80-210 | |||
| HPM300 | C1 | 235 | 25 | 230-445 | 700-1200 | 220 |
| C2 | 211 | 19 | 200-445 | |||
| C3 | 150 | 17 | 180-445 | |||
| C4 | 107 | 13 | 150-445 | |||
| F1 | 77 | 10 | 115-260 | |||
| F2 | 53 | 8 | 110-260 | |||
| F3 | 22 | 6 | 105-260 | |||
| F4 | 25 | 6 | 105-260 | |||
| HPM400 | C1 | 299 | 30 | 315-630 | 700-1000 | 315 |
| C2 | 252 | 25 | 295-630 | |||
| C3 | 198 | 20 | 260-630 | |||
| C4 | 111 | 14 | 190-630 | |||
| F1 | 92 | 10 | 140-370 | |||
| F2 | 52 | 8 | 130-370 | |||
| F3 | 51 | 6 | 120-370 | |||
| F4 | 52 | 6 | 120-370 | |||
| HPM500 | C1 | 335 | 30 | 390-790 | 700-950 | 400 |
| C2 | 286 | 25 | 365-790 | |||
| C3 | 204 | 20 | 325-790 | |||
| C4 | 133 | 16 | 280-790 | |||
| F1 | 95 | 13 | 230-450 | |||
| F2 | 57 | 10 | 175-450 | |||
| F3 | 52 | 8 | 165-450 | |||
| F4 | 53 | 6 | 155-450 | |||
| HPM650 | C1 | 328 | 30 | 386-790 | 590-930 | 500 |
| C2 | 279 | 25 | 348-790 | |||
| C3 | 196 | 20 | 300-790 | |||
| F1 | 106 | 13 | 280-530 | |||
| F2 | 52 | 9 | 220-530 | |||
| HPM800 | C1 | 353 | 32 | 545-1100 | 700-950 | 630 |
| C2 | 297 | 32 | 545-1100 | |||
| C3 | 267 | 25 | 495-1100 | |||
| C4 | 219 | 16 | 385-1100 | |||
| F1 | 155 | 13 | 325-730 | |||
| F2 | 92 | 10 | 260-730 | |||
| F3 | 33 | 5 | 200-730 |
| Model | Cavities | Max.Feeding Size(mm) |
Processing Capacity(t/h) |
| HPM200 | C1 | 185 | 150-250 |
| C2 | 125 | 140-250 | |
| C3 | 95 | 120-250 | |
| F1 | 76 | 90-210 | |
| F2 | 54 | 80-210 | |
| F3 | 23 | 70-210 | |
| F4 | 10 | 80-210 | |
| HPM300 | C1 | 235 | 230-445 |
| C2 | 211 | 200-445 | |
| C3 | 150 | 180-445 | |
| C4 | 107 | 150-445 | |
| F1 | 77 | 115-260 | |
| F2 | 53 | 110-260 | |
| F3 | 22 | 105-260 | |
| F4 | 25 | 105-260 | |
| HPM400 | C1 | 299 | 315-630 |
| C2 | 252 | 295-630 | |
| C3 | 198 | 260-630 | |
| C4 | 111 | 190-630 | |
| F1 | 92 | 140-370 | |
| F2 | 52 | 130-370 | |
| F3 | 51 | 120-370 | |
| F4 | 52 | 120-370 | |
| HPM500 | C1 | 335 | 390-790 |
| C2 | 286 | 365-790 | |
| C3 | 204 | 325-790 | |
| C4 | 133 | 280-790 | |
| F1 | 95 | 230-450 | |
| F2 | 57 | 175-450 | |
| F3 | 52 | 165-450 | |
| F4 | 53 | 155-450 | |
| HPM650 | C1 | 328 | 386-790 |
| C2 | 279 | 348-790 | |
| C3 | 196 | 300-790 | |
| F1 | 106 | 280-530 | |
| F2 | 52 | 220-530 | |
| HPM800 | C1 | 353 | 545-1100 |
| C2 | 297 | 545-1100 | |
| C3 | 267 | 495-1100 | |
| C4 | 219 | 385-1100 | |
| F1 | 155 | 325-730 | |
| F2 | 92 | 260-730 | |
| F3 | 33 | 200-730 |
Our global service network is ready to provide on-site technical support, genuine parts, and 24/7 assistance for your crushing projects.
