Feed size: ≤1500mm
Separation particle size: 60-250mm

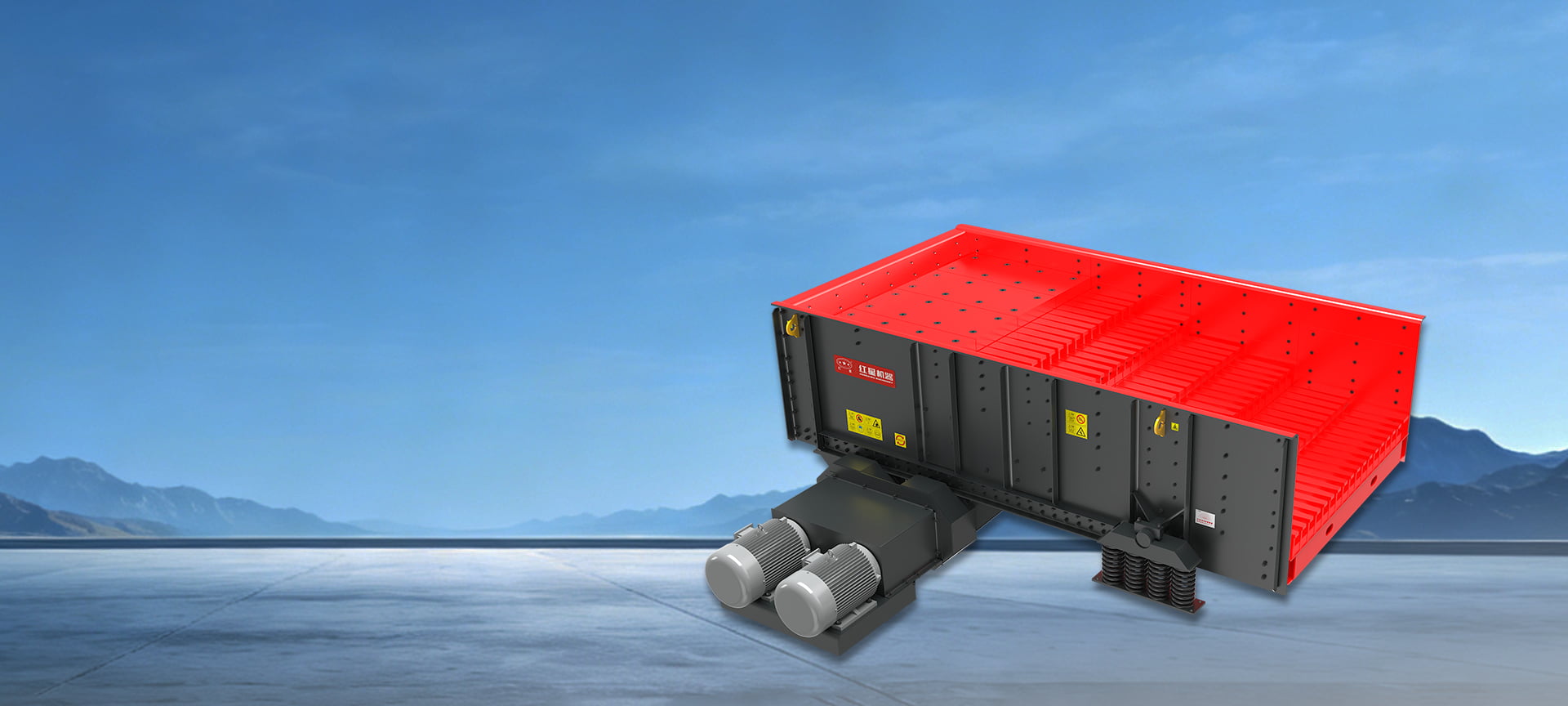

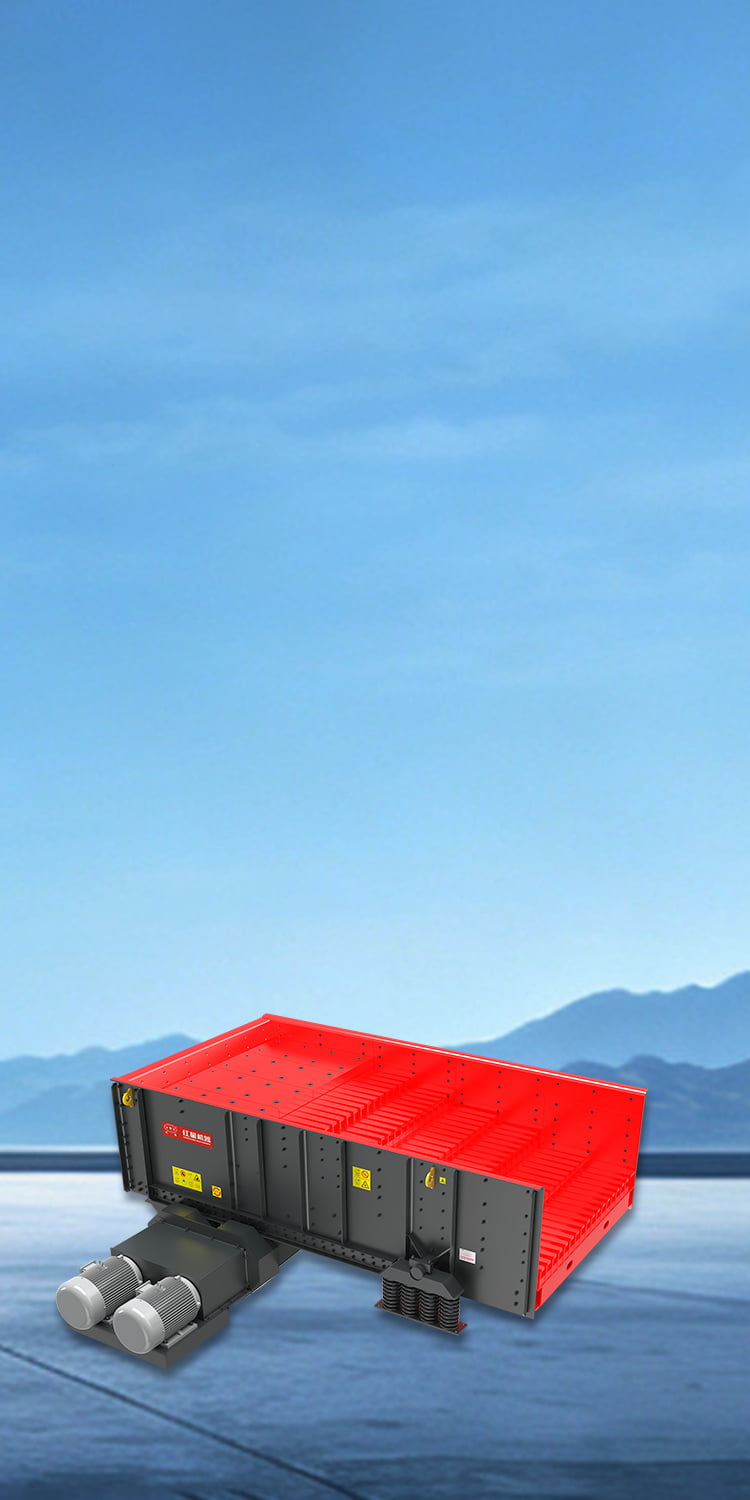

The SG series heavy-duty bar vibrating screen is a high-strength linear vibrating screen suitable for high impact load conditions.
It is used to remove fine-grained materials that do not require primary crushing before primary crushing, reducing the burden on the primary crusher.
It is an ideal device for processing raw materials with a high content of fine-grained materials, such as blasted rock, gravel, and river pebbles.
It is widely used in quarries, mines, building materials, power, coal mines, and chemical industries, and is suitable for inspection screening before primary and secondary crushing.
The linear trajectory generated by the dual-shaft vibrators results in higher screening efficiency.
Vibration intensity can reach 4.5G, and the stepped bars are less prone to jamming.
Easy adjustment of vibration parameters, better adapting to different on-site conditions.
500mm-1500mm feed range, adapting to high-impact and high-load conditions.
By adjusting the grate gap and selecting the lower screen, the equipment can achieve a wide range of separation particle size grades.
| Model | Size (mm) |
Power (kw) |
Tiers | Processing Capacity (t/h) |
Amplitude (mm) | Vibration Intensity | Installation Angle | Separation Particle Size (mm) |
Maximum Feeding Size (mm) |
| SG1231 | 1200×3000 | 2×7.5 | 1 | 300-700 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 500 |
| SG1242 | 1200×3900 | 2×11 | 2 | 300-700 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 500 |
| SG1541 | 1500×3900 | 2×11 | 1 | 600-1100 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 700 |
| SG1542 | 1500×3900 | 2×15 | 2 | 600-1100 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 700 |
| SG1841 | 1800×3900 | 2×11 | 1 | 800-1300 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 900 |
| SG1842 | 1800×3900 | 2×22 | 2 | 800-1300 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 900 |
| SG2151 | 2100×4800 | 2×22 | 1 | 900-1500 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 1200 |
| SG2451 | 2400×4800 | 2×30 | 1 | 1000-1800 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 1500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Tiers | Processing Capacity (t/h) |
Maximum Feeding Size (mm) |
| SG1231 | 1 | 300-700 | 500 |
| SG1242 | 2 | 300-700 | 500 |
| SG1541 | 1 | 600-1100 | 700 |
| SG1542 | 2 | 600-1100 | 700 |
| SG1841 | 1 | 800-1300 | 900 |
| SG1842 | 2 | 800-1300 | 900 |
| SG2151 | 1 | 900-1500 | 1200 |
| SG2451 | 1 | 1000-1800 | 1500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
