Feed size: ≤2mm
Capacity: 10-60t/d

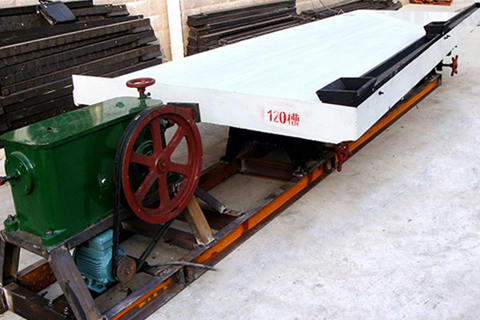

Shaking tables are gravity separation equipment used for separating fine-grained materials, widely applied in the separation of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ilmenite, and coal.
Our factory has a long history of producing shaking tables and has continuously developed and innovated, evolving from the initial straight-line shaking table to the single-curved wave shaking table (1970s), and then to the hyperboloid wave shaking table (1990s), significantly improving the throughput, recovery rate, and enrichment ratio of the shaking tables.
Combines domestic shaking table and gravity separation technologies, offering advantages such as high enrichment ratio, good separation efficiency, and simple operation.
Produces final concentrate and tailings in one step.
Compared with traditional processes, it has advantages such as no reagents required, low energy consumption, and easy management, resulting in a high performance-price ratio.
| Name | Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
| Bed surface Dimensions |
Length （mm） |
4450 | 4450 | 4450 |
| Driving part Width （mm） |
1855 | 1855 | 1855 | |
| Concentrate part Width （mm） |
1546 | 1546 | 1546 | |
| Max.feeding size（mm） |
2 | 0.5 | 0.15 | |
| Feeding amount （t/d） |
30-60 | 10-20 | 15-25 | |
| Feeding thickness (%) |
25-30 | 20-25 | 15-25 | |
| Stroke （mm） |
16-22 | 11-16 | 8-16 | |
| Frequency (f) |
45-48 | 48-53 | 50-57 | |
| Bed surface Water quantity （t/d） |
80-150 | 30-60 | 10-17 | |
| Bed surface Horizontal obliquity(°) |
2.5-4.5 | 1.5-3.5 | 1-2 | |
| Bed surface Portrait obliquity(%) |
1.4 | 0.92 | ---- | |
| Table board corner(°) |
32-42 | 40 | 42 | |
| Concentrating area（㎡） |
7.6 | 7.6 | 7.6 | |
| Bed surface Length ratio |
2.6 | 2.6 | 2.6 | |
| Shape of side-bed surface |
Rectangle | Zigzag | Triangle | |
| Motor power(kw) |
1.1 | 1.1 | 1.1 | |
| Transmission device |
Eccentricity Linkage | |||
| Name | Max.feeding size（mm） |
Feeding amount （t/d） |
| Grit concentrator table |
2 | 30-60 |
| Fine sand concentrator table |
0.5 | 10-20 |
| Sludge concentrator table |
0.15 | 15-25 |
