Feed size: ≤20mm
Capacity: 3-35t/h

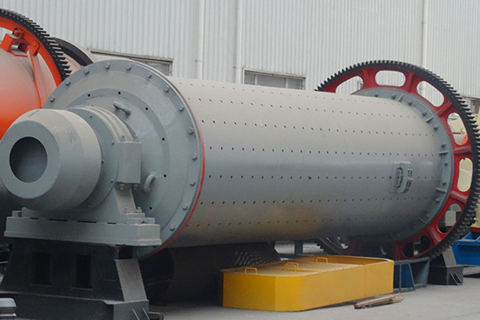

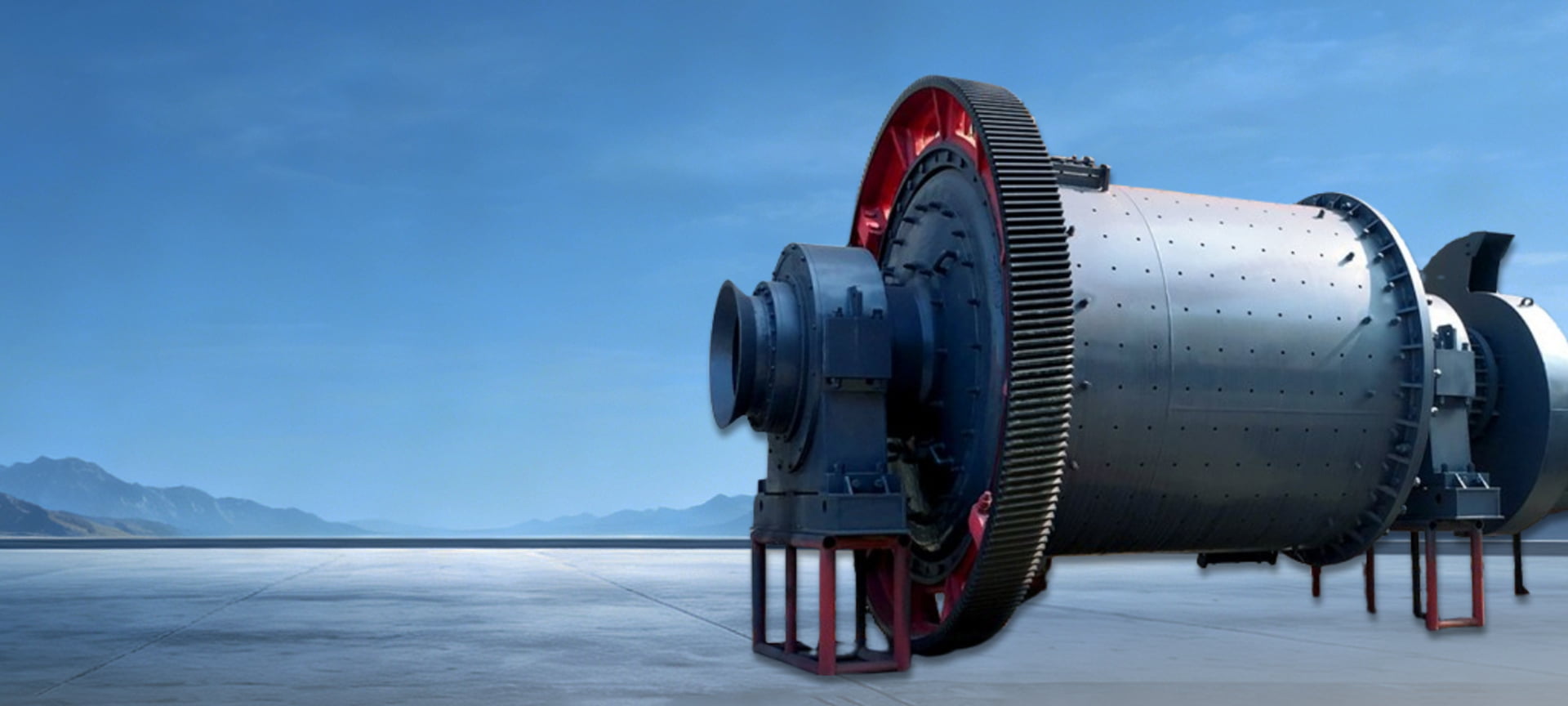

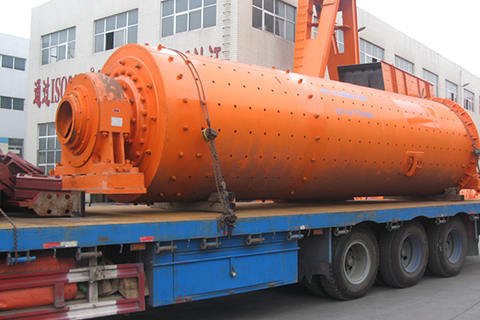

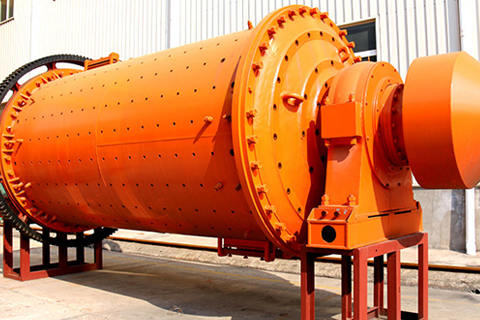

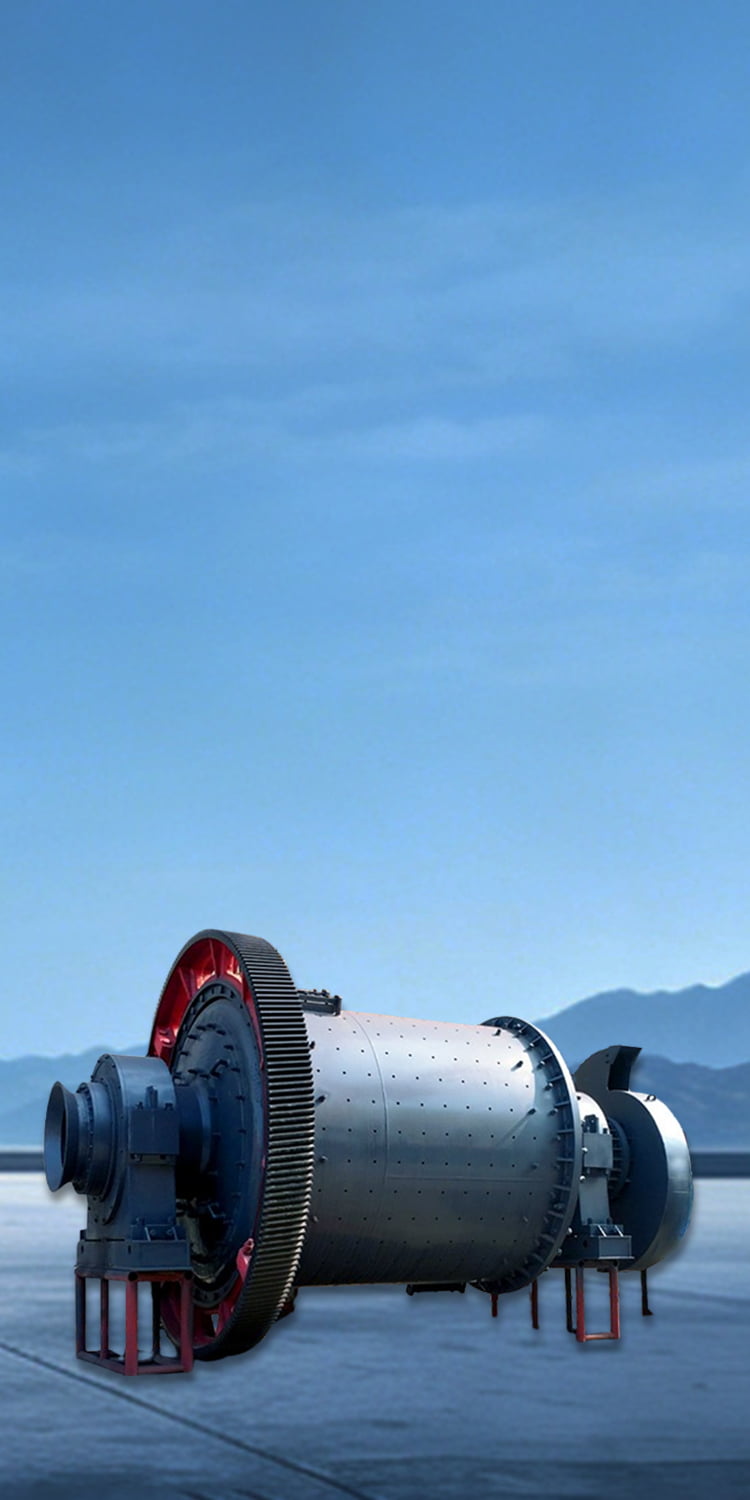

Slag mills, also known as steel slag mills, coal mills, tube mills, coal grinding mills, and ore grinding mills, are key equipment for the secondary grinding of slag after pre-crushing. They are mainly used in the slag powder production industry and cement grinding stations. Our company, through long-term design and production exploration and summarization, has developed a series of slag grinding equipment of different specifications to meet different fineness requirements, ensuring quality and stable high output.
The slag mill employs high-fineness screening and grinding technology, featuring a specially structured double-layer compartment device, activated liners, and a mill tail discharge device to meet customers' requirements for grinding fineness.
The internal cylinder uses new type of classifying liners, employing micro-grinding media for high-linearity grinding and milling of materials, thereby achieving high production capacity.
Significantly reduces overall grinding power consumption, saving customers money.
| Spec./m (Dia.×Length) |
Speed(r/min) | Feeding Size(mm) | Capacity(t/h) | Griding Media Loading(t) |
Main Motor (KW) |
Main Reducer | Weight (t) |
| Ф1.83×7.0 | 23.8 | ＜20 | 3～5 | 22 | 245 | ZD60 | 43.5 |
| Ф1.83×9.5 | 24.1 | ＜20 | 5～7 | 31 | 355 | ZD70 | 56 |
| Ф2.2×9.5 | 21.5 | ＜20 | 8～10 | 41 | 475 | ZD70 | 74 |
| Ф2.2×11 | 21.5 | ＜20 | 10～12 | 50 | 570 | ZD80 | 109 |
| Ф2.4×11 | 20.3 | ＜20 | 12～14 | 57 | 630 | ZD80 | 116 |
| MBY560 | |||||||
| Ф2.4×13 | 20.3 | ＜20 | 14～16 | 68 | 800 | MBY710 | 138 |
| JDX710 | |||||||
| Ф2.6×11 | 19.7 | ＜20 | 15～16 | 69 | 800 | MBY710 | 138 |
| JDX710 | |||||||
| Ф2.6×13 | 19.7 | ＜20 | 16～18 | 82 | 1000 | MBY800 | 158 |
| JDX800 | |||||||
| Ф3.0×12 | 18.2 | ＜20 | 18～20 | 100 | 1250 | MBY800 | 182 |
| JDX800 | |||||||
| Ф3.0×13 | 18.2 | ＜20 | 21～23 | 108 | 1400 | MBY900 | 190 |
| JDX900 | |||||||
| Ф3.2×13 | 17.8 | ＜20 | 25～27 | 128 | 1600 | MBY1000 | 230 |
| JDX1000 | |||||||
| Ф3.2×14 | 17.8 | ＜20 | 28～30 | 138 | 1800 | MBY1000 | 249 |
| JDX1000 | |||||||
| Ф3.5×13 | 17.3 | ＜20 | 32～35 | 156 | 2000 | JS130-A | 275 |
| Spec./m (Dia.×Length) |
Feeding Size(mm) (mm) |
Capacity(t/h) (t/h) |
| Ф1.83×7.0 | ＜20 | 3～5 |
| Ф1.83×9.5 | ＜20 | 5～7 |
| Ф2.2×9.5 | ＜20 | 8～10 |
| Ф2.2×11 | ＜20 | 10～12 |
| Ф2.4×11 | ＜20 | 12～14 |
| Ф2.4×13 | ＜20 | 14～16 |
| Ф2.6×11 | ＜20 | 15～16 |
| Ф2.6×13 | ＜20 | 16～18 |
| Ф3.0×12 | ＜20 | 18～20 |
| Ф3.0×13 | ＜20 | 21～23 |
| Ф3.2×13 | ＜20 | 25～27 |
| Ф3.2×14 | ＜20 | 28～30 |
| Ф3.5×13 | ＜20 | 32～35 |
