Magnetic field strength: 63-70 mt
Weight: 115-2200 kg

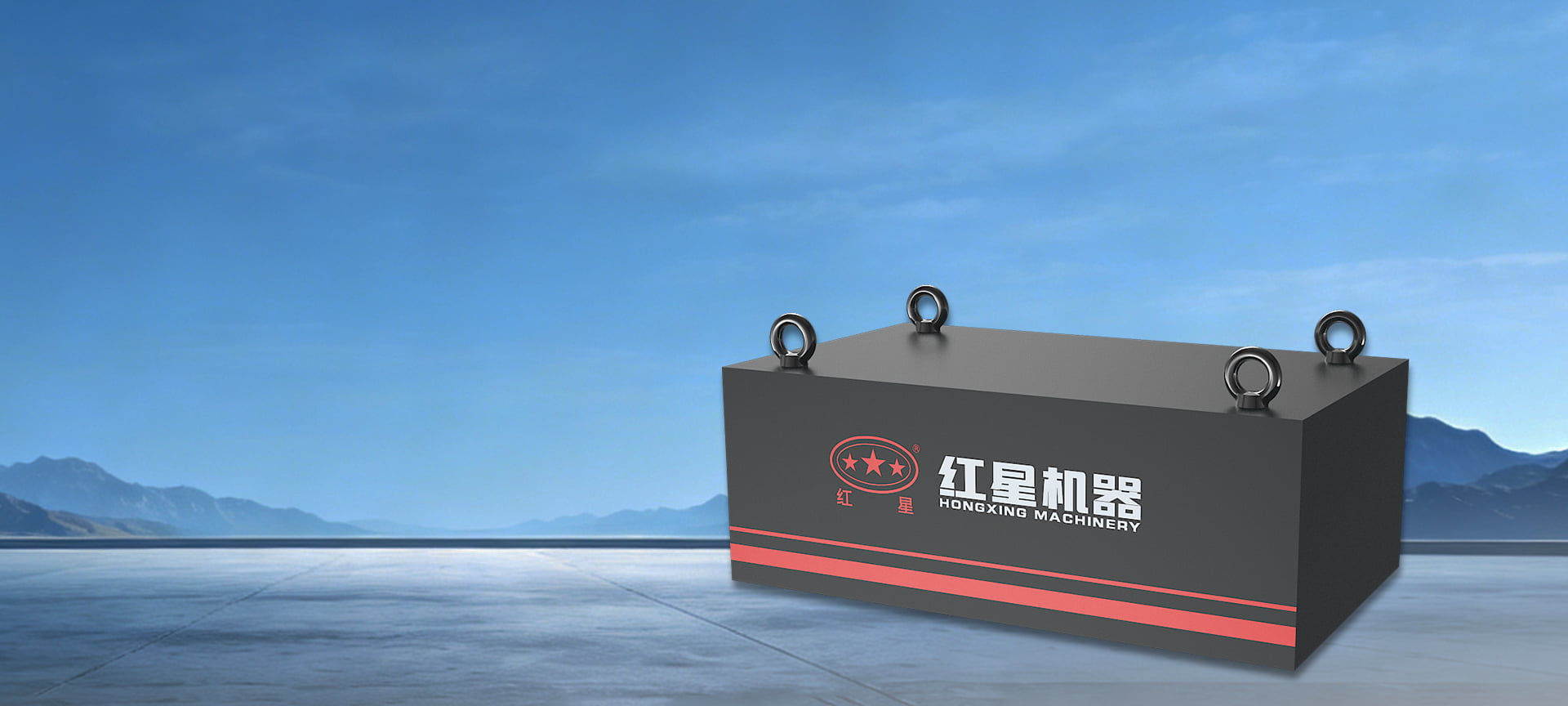

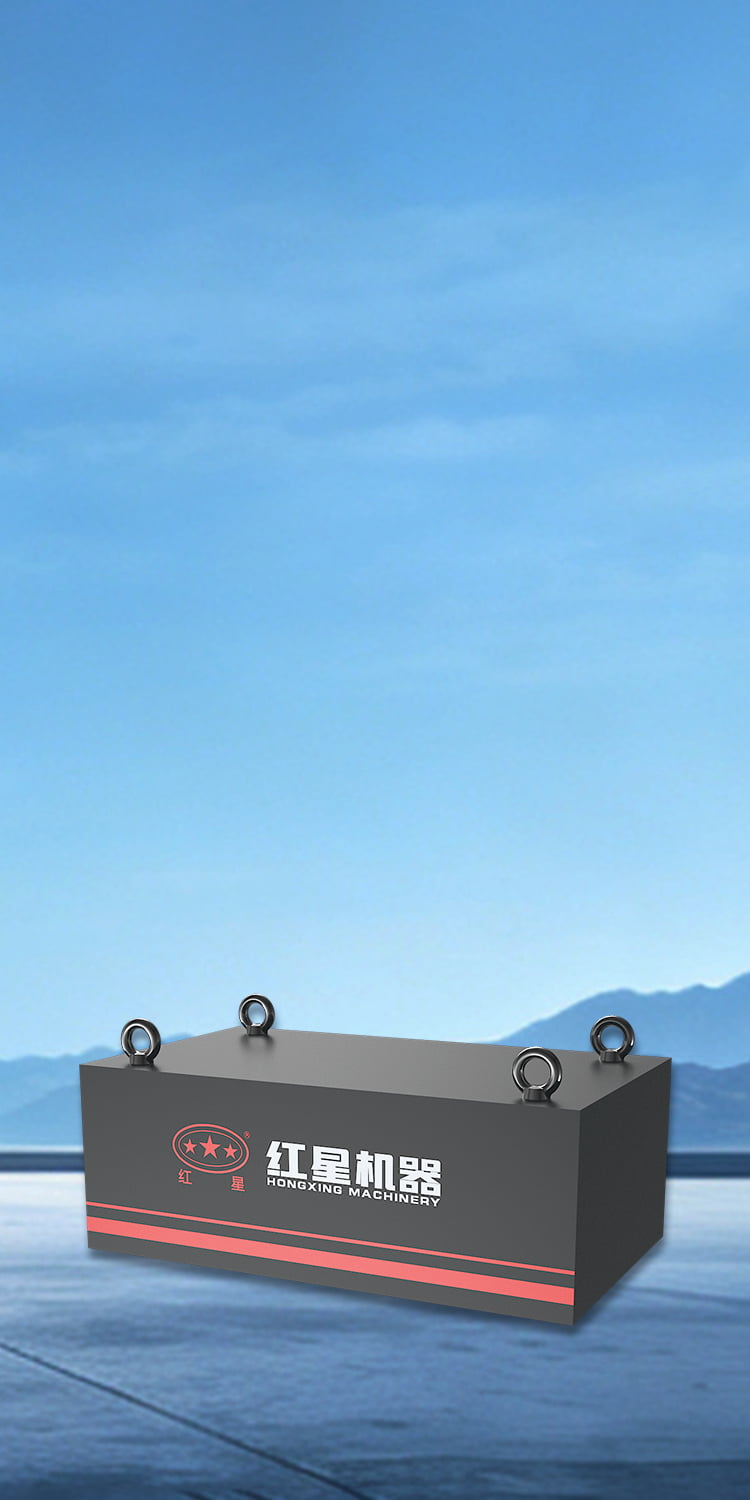

The RCYB series suspended permanent magnet separator utilizes a composite magnetic system composed of special permanent magnets with high coercivity and high remanence.
It features maintenance-free operation, strong magnetic force, long lifespan, simple installation, convenient use, and reliable operation.
It is suitable for removing iron from non-magnetic materials on belt conveyors, vibrating conveyors, electromagnetic vibrating feeders, and discharge chutes.
All technical specifications of this product comply with JB/T8711-2012 standard.
| Model | Belt Width (mm) |
Rated Hoisting Height (h=mm) |
Materials Thickness (≤mm) |
Magnetic Field Strength (≥mt) |
Belt Speed (≤m/s) |
Weight(kg) | Dimension(mm) | ||
| L | D | H | |||||||
| RCYB-4 | 400 | 130 | 80 | 63 | 2.5 | 115 | 400 | 300 | 210 |
| RCYB-5 | 500 | 150 | 100 | 63 | 180 | 500 | 400 | 230 | |
| RCYB-6 | 600/650 | 180 | 130 | 63 | 300 | 600 | 500 | 250 | |
| RCYB-6.5 | 650 | 200 | 150 | 65 | 450 | 650 | 600 | 250 | |
| RCYB-8 | 800 | 250 | 200 | 70 | 580 | 800 | 700 | 250 | |
| RCYB-10 | 1000 | 300 | 250 | 70 | 880 | 1000 | 800 | 250 | |
| RCYB-12 | 1200 | 350 | 300 | 70 | 1100 | 1200 | 1000 | 270 | |
| RCYB-14 | 1400 | 400 | 350 | 70 | 1700 | 1400 | 1300 | 270 | |
| RCYB-16 | 1600 | 450 | 400 | 70 | 2200 | 1600 | 1500 | 270 | |
| Model | Materials Thickness (≤mm) |
Magnetic Field Strength (≥mt) |
| RCYB-4 | 80 | 63 |
| RCYB-5 | 100 | 63 |
| RCYB-6 | 130 | 63 |
| RCYB-6.5 | 150 | 65 |
| RCYB-8 | 200 | 70 |
| RCYB-10 | 250 | 70 |
| RCYB-12 | 300 | 70 |
| RCYB-14 | 350 | 70 |
| RCYB-16 | 400 | 70 |
