Feed size: ≤800mm
Capacity: 70-400t/h

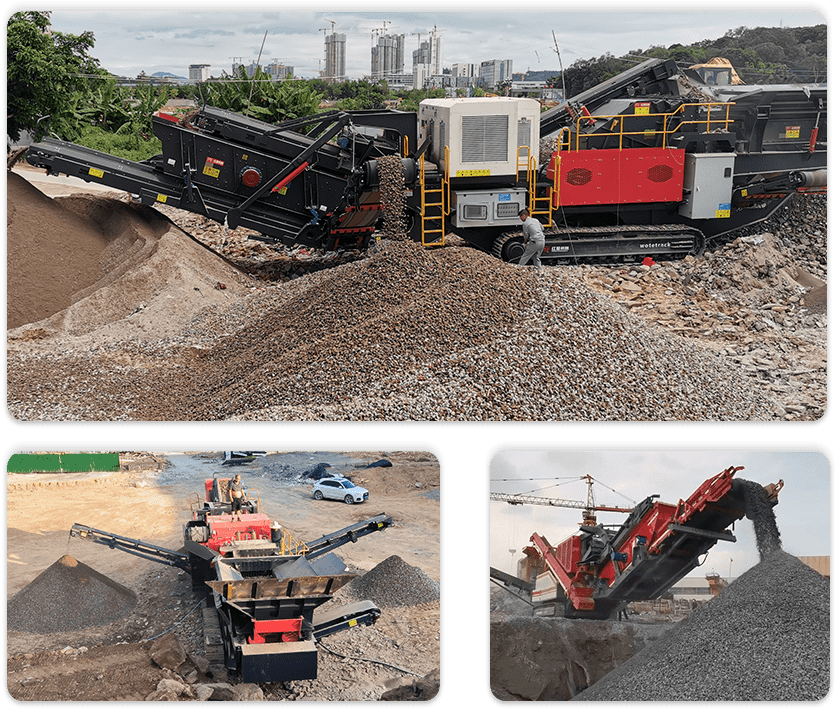

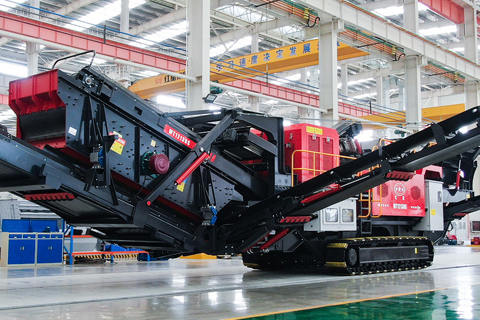

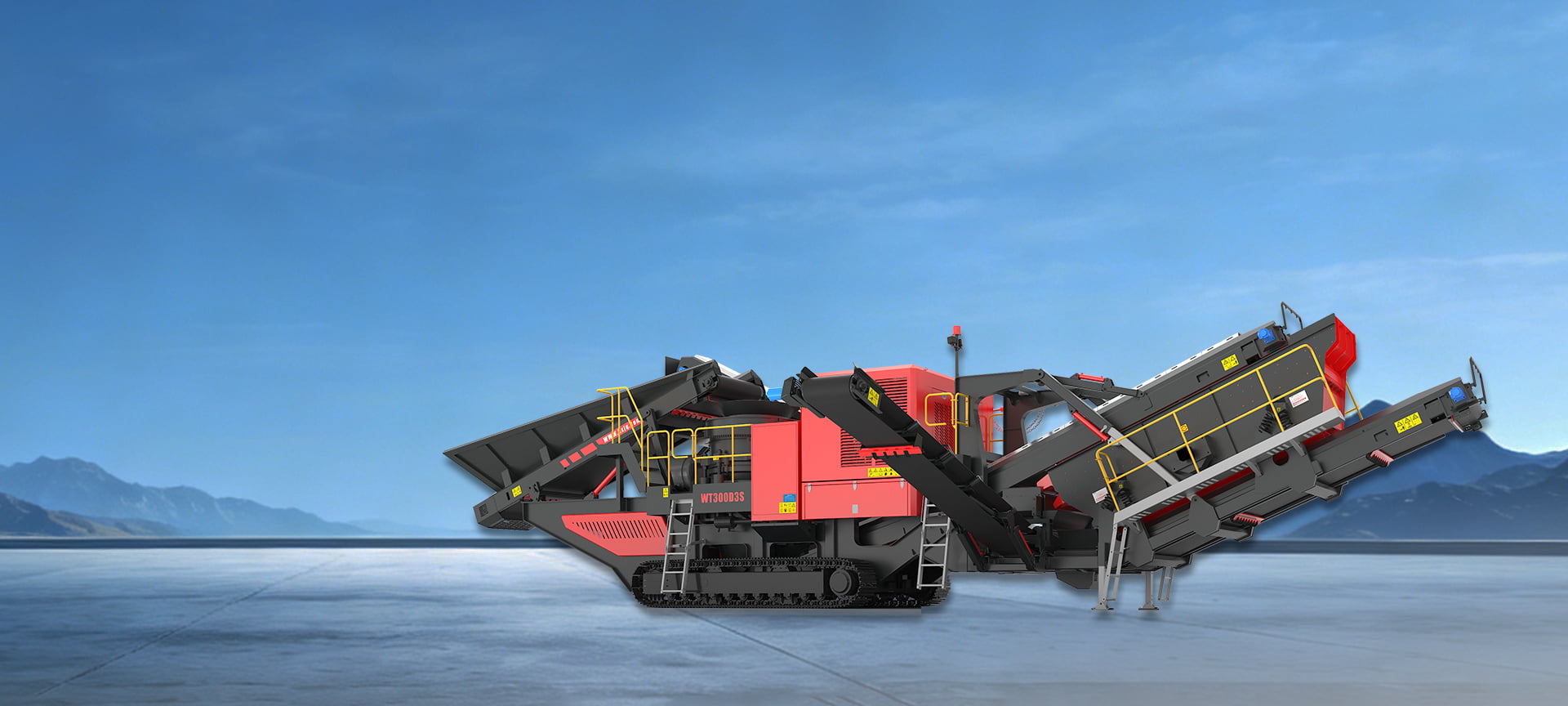

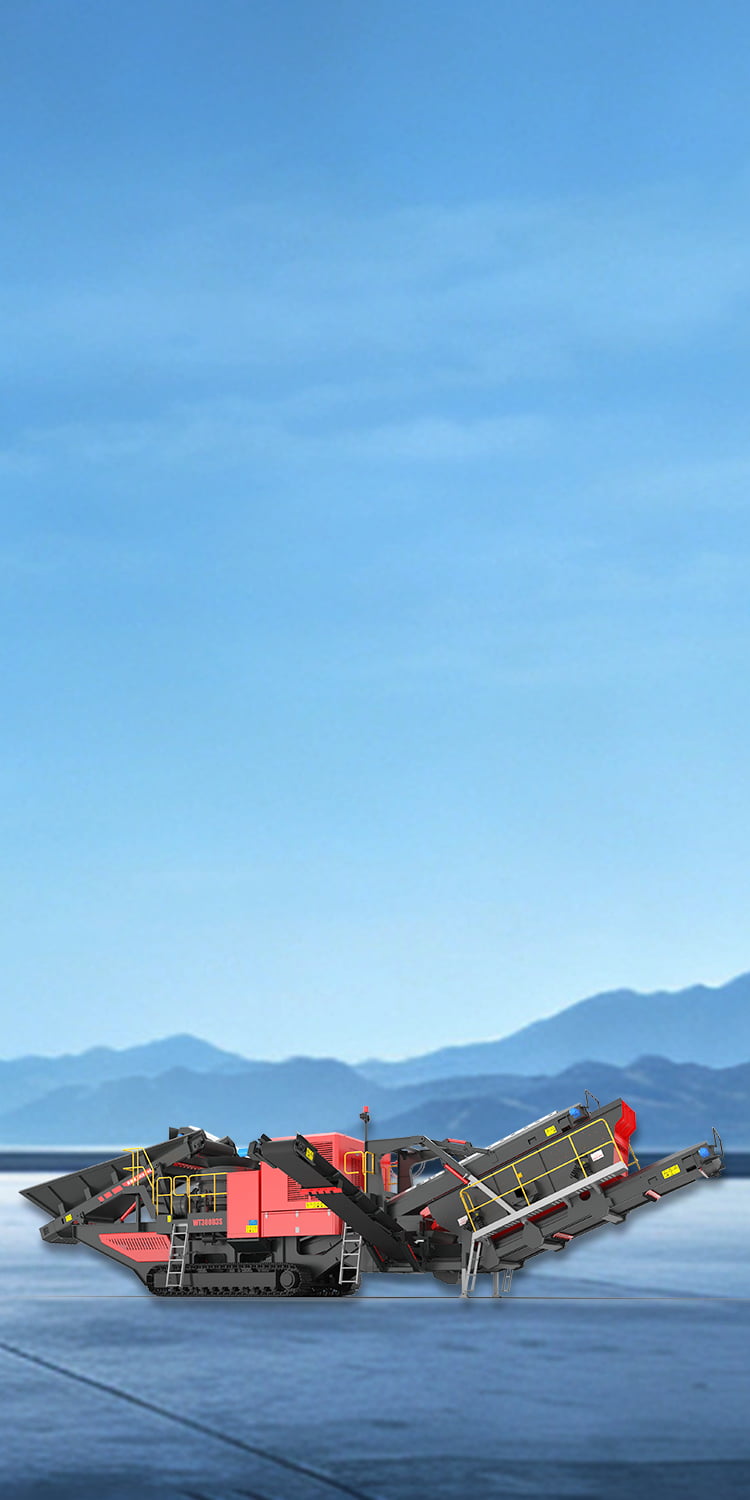

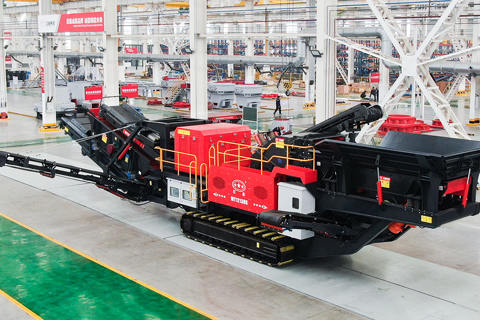

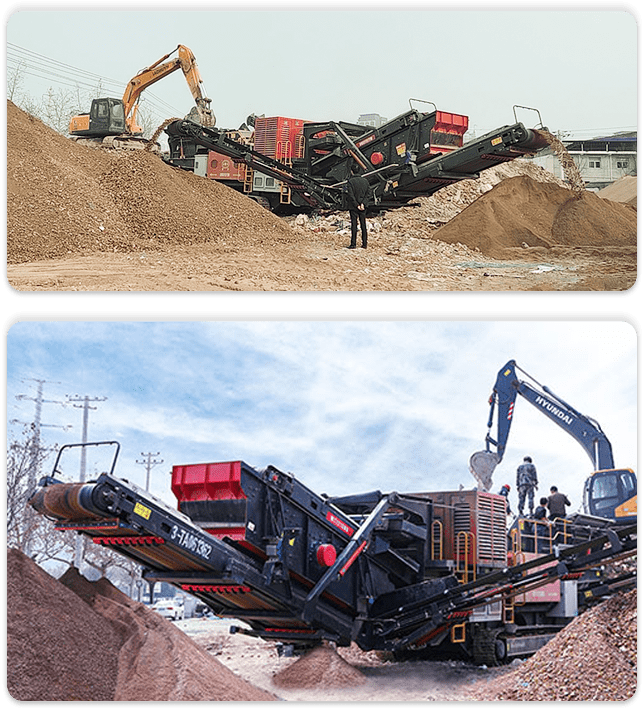

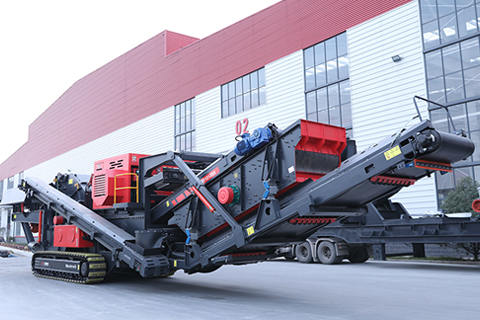

The tracked mobile crusher is a high-performance, fully automated crushing and screening system independently developed by Hongxing.
It integrates feeding, crushing, screening, and conveying, and features remote-controlled movement for high maneuverability.
Its robust tracked chassis makes it highly adaptable to different environments and allows for rapid movement between different construction sites.
Capable of processing over 200 different types of materials, with strong adaptability to various mining,construction, and industrial processing scenarios.
Equipped with advanced European-style mainframes, featuring optimized cavity design and high-quality wear parts, resulting in better quality and higher efficiency.
Utilizing brand-name engines that meet the latest emission standards and advanced hydraulic and power systems, resulting in higher fuel efficiency. Advanced dust and noise reduction technology further enhances environmental friendliness.
One-button automatic start and stop, intelligent control, and hydraulic adjustment device simplify maintenance.
Multiple power options are available, including full hydraulic, D-type hybrid (oil-electric), and E-type external power supply, allowing customers to choose the equipment that best suits their needs.
Global coverage, consistent quality, trusted by customers worldwide.
| Model | WT96 | WT106 | WT120 | |
| Dimensions of Transmission Devices | Length | 14200mm | 14900mm | 15200mm |
| Width | 2900mm | 3000mm | 3200mm | |
| Height | 3470mm | 3600mm | 3700mm | |
| Weight | 38t | 50t | 65t | |
| Feeder | Hopper Volume | 5m³ | 5m³ | 6m³ |
| Loading Height | 3900mm | 4100mm | 4300mm | |
| FeederModel | GZDT3895 | GZDT1145 | GZDT1245 | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 800×9000mm | 1000×10000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | 3400mm | |
| Crusher | Model | CJ96 | CJ106 | CJ120 |
| Inlet Dimensions | 930×580mm | 1060×700mm | 1200×870mm | |
| Max.Feeding Size | 480mm | 560mm | 700mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 800×9000mm | 1000×10000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | 3400mm | |
| Iron Remover | Model | RCYQ-8 | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 112.9kw | 141.4kw | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT96 and WT106
| Model | WT96 | WT106 | |
| Dimensions of Transmission Devices | Length | 14200mm | 15200mm |
| Width | 2900mm | 3000mm | |
| Height | 3470mm | 3600mm | |
| Weight | 38t | 50t | |
| Feeder | Hopper Volume | 5m³ | 6m³ |
| Loading Height | 3900mm | 4100mm | |
| FeederModel | GZDT3895 | GZDT1145 | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 800×9000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | |
| Crusher | Model | CJ96 | CJ120 |
| Inlet Dimensions | 930×580mm | 1060×700mm | |
| Max.Feeding Size | 480mm | 560mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 800×9000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | |
| Iron Remover | Model | RCYQ-8 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 112.9kw | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT120
| Model | WT120 | |
| Dimensions of Transmission Devices | Length | 15200mm |
| Width | 3200mm | |
| Height | 3700mm | |
| Weight | 65t | |
| Feeder | Hopper Volume | 6m³ |
| Loading Height | 4300mm | |
| FeederModel | GZDT1245 | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 1200×12000mm |
| Dumping Height | 3400mm | |
| Crusher | Model | CJ120 |
| Inlet Dimensions | 1200×870mm | |
| Max.Feeding Size | 700mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1200×12000mm |
| Dumping Height | 3400mm | |
| Iron Remover | Model | RCYQ-10 |
| Diesel Engine | Power | 132kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | |
| Model | WT160SC | WT250SC | WT300HPM | WT400HPM | |
| Dimensions of Transmission Devices | Length | 16800mm | 19000mm | 19000mm | 19500mm |
| Width | 3500mm | 3600mm | 3900mm | 3900mm | |
| Height | 3700mm | 3800mm | 3800mm | 3800mm | |
| Weight | 50t | 60t | 55t | 65t | |
| Belt Conveyor | Hopper Volume | 3m³ | 3m³ | 3m³ | 3m³ |
| Loading Height | 2600m | 2600m | 2600m | 2800m | |
| Loading Width | 1900mm | 1900mm | 1900mm | 1900mm | |
| Dimensions(Width×Length) | 1000×6300mm | 1000×6300mm | 1000×6300mm | 1200×6500mm | |
| Crusher | Model | SC160 | SC250 | HP300 | HP400 |
| Inlet Dimensions | 75-360mm | 75-450mm | 60-200mm | 68-280mm | |
| Max.Feeding Size | 360mm | 450mm | 200mm | 280mm | |
| Min. Discharging Size | 8-25mm | 8-35mm | 8-45mm | 8-51mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×9000mm | 1000×10000mm | 1000×10000mm | 1000×11000mm |
| Dumping Height | 3100mm | 3490mm | 3490mm | 3690mm | |
| Secondary Screen | Dumping Height | 4200mm | 4200mm | 4400mm | 4400mm |
| Model | HX1536 | HX1536 | HX1536 | HX1536 | |
| Sieve Dimensions | 1500×3600mm | 1500×3600mm | 1500×3600mm | 1500×3600mm | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | 1000×5600mm | 1000×5600mm | 1000×5600mm | 1000×6500mm |
| Dumping Height | 3020mm | 3020mm | 3020mm | 3300mm | |
| Belt Conveyors to the Sieve | Dimensions(Width×Length) | 650×2100mm | 650×2100mm | 650×2100mm | 650×2100mm |
| Dumping Height | 1370mm | 1370mm | 1370mm | 1370mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | 650×10000mm | 650×10000mm | 650×11000mm | 650×11000mm |
| Dumping Height | 4200mm | 4200mm | 4400mm | 4400mm | |
| Diesel Engine | Power | 96kw | 132kw | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 207.12kw | 297.12kw | 267.12kw | 362.12kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT160SC and WT250SC
| Model | WT160SC | WT250SC | |
| Dimensions of Transmission Devices | Length | 16800mm | 19500mm |
| Width | 3500mm | 3600mm | |
| Height | 3700mm | 3800mm | |
| Weight | 50t | 60t | |
| Belt Conveyor | Hopper Volume | 3m³ | 3m³ |
| Loading Height | 2600m | 2600m | |
| Loading Width | 1900mm | 1900mm | |
| Dimensions(Width×Length) | 1000×6300mm | 1000×6300mm | |
| Crusher | Model | SC160 | HP400 |
| Inlet Dimensions | 75-360mm | 75-450mm | |
| Max.Feeding Size | 360mm | 450mm | |
| Min. Discharging Size | 8-25mm | 8-35mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×9000mm | 1000×11000mm |
| Dumping Height | 3100mm | 3490mm | |
| Secondary Screen | Dumping Height | 4200mm | 4400mm |
| Model | HX1536 | HX1536 | |
| Sieve Dimensions | 1500×3600mm | 1500×3600mm | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | 1000×5600mm | 1000×6500mm |
| Dumping Height | 3020mm | 3020mm | |
| Belt Conveyors to the Sieve | Dimensions(Width×Length) | 650×2100mm | 650×2100mm |
| Dumping Height | 1370mm | 1370mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | 650×10000mm | 650×10000mm |
| Dumping Height | 4200mm | 4200mm | |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 207.12kw | 362.12kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT300HPM and WT400HPM
| Model | WT300HPM | WT400HPM | |
| Dimensions of Transmission Devices | Length | 19000mm | 19500mm |
| Width | 3900mm | 3900mm | |
| Height | 3800mm | 3800mm | |
| Weight | 55t | 65t | |
| Belt Conveyor | Hopper Volume | 3m³ | 3m³ |
| Loading Height | 2600m | 2800m | |
| Loading Width | 1900mm | 1900mm | |
| Dimensions(Width×Length) | 1000×6300mm | 1200×6500mm | |
| Crusher | Model | HP300 | HP400 |
| Inlet Dimensions | 60-200mm | 68-280mm | |
| Max.Feeding Size | 200mm | 280mm | |
| Min. Discharging Size | 8-45mm | 8-51mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×10000mm | 1000×11000mm |
| Dumping Height | 3490mm | 3690mm | |
| Secondary Screen | Dumping Height | 4400mm | 4400mm |
| Model | HX1536 | HX1536 | |
| Sieve Dimensions | 1500×3600mm | 1500×3600mm | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | 1000×5600mm | 1000×6500mm |
| Dumping Height | 3020mm | 3300mm | |
| Belt Conveyors to the Sieve | Dimensions(Width×Length) | 650×2100mm | 650×2100mm |
| Dumping Height | 1370mm | 1370mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | 650×11000mm | 650×11000mm |
| Dumping Height | 4400mm | 4400mm | |
| Diesel Engine | Power | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 267.12kw | 362.12kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
| Model | WT110 | WT110S | WT1213 | WT1213S | WT1315 | |
| Dimensions of Transmission Devices | Length | 14000mm | 16000mm | 15500mm | 19000mm | 17000mm |
| Width | 3000mm | 3200mm | 3200mm | 3600mm | 3200mm | |
| Height | 3600mm | 3600mm | 3800mm | 3800mm | 3800mm | |
| Weight | 40t | 45t | 53t | 60t | 65t | |
| Feeder | Hopper Volume | 3m³ | 3m³ | 5m³ | 5m³ | 5m³ |
| Loading Height | 3900mm | 4000mm | 3900mm | 4100mm | 4000mm | |
| Primary Screen | Power | 5.2kw | 5.2kw | 6.12kw | 6.12kw | 6.12kw |
| Sieve Dimensions | 1040×924mm | 1040×924mm | 1140×924mm | 1140×924mm | 1240×930mm | |
| Crusher | Model | CI1110M | CI1110M | CI1213M | CI1213M | CI1315M |
| Inlet Dimensions | 1020×860mm | 1020×860mm | 1320×900mm | 1320×900mm | 1540×900mm | |
| Max.Feeding Size | 400mm | 400mm | 500mm | 500mm | 600mm | |
| The Feeder at the Bottom | Hopper Volume | 0.8m³ | 0.8m³ | 1m³ | 1m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | 5.2kw | 5.2kw | 6.12kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm | 650×3500mm | 650×3500mm | 650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | 2200mm | 2200mm | 2400mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×8500mm | 1000×8500mm | 1000×9900mm | 1000×9900mm | 1200×11000mm |
| Dumping Height | 3300mm | 3300mm | 3500mm | 3500mm | 3800mm | |
| Secondary Screen | Power | ○ | 6.12kw | ○ | 6.12kw | ○ |
| Sieve Dimensions | ○ | 1500×3600 | ○ | 1500×4200 | ○ | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ | 1000×5800mm | ○ | 1000×6200mm | ○ |
| Dumping Height | ○ | 2900mm | ○ | 3000mm | ○ | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ | 650×2500mm | ○ | 650×2800mm | ○ |
| Dumping Height | ○ | 1400mm | ○ | 1400mm | ○ | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ | 500×8000mm | ○ | 500×9200mm | ○ |
| Dumping Height | ○ | 4200mm | ○ | 4500mm | ○ | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 | RCYQ-10 | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 106kw | 106kw | 132kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 253kw | 274kw | 304kw | 324.4kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT110 and WT110S
| Model | WT110 | WT110S | |
| Dimensions of Transmission Devices | Length | 14000mm | 17000mm |
| Width | 3000mm | 3200mm | |
| Height | 3600mm | 3600mm | |
| Weight | 40t | 45t | |
| Feeder | Hopper Volume | 3m³ | 5m³ |
| Loading Height | 3900mm | 4000mm | |
| Primary Screen | Power | 5.2kw | 6.12kw |
| Sieve Dimensions | 1040×924mm | 1040×924mm | |
| Crusher | Model | CI1110M | CI1315M |
| Inlet Dimensions | 1020×860mm | 1020×860mm | |
| Max.Feeding Size | 400mm | 400mm | |
| The Feeder at the Bottom | Hopper Volume | 0.8m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×8500mm | 1200×11000mm |
| Dumping Height | 3300mm | 3300mm | |
| Secondary Screen | Power | ○ | ○ |
| Sieve Dimensions | ○ | 1500×3600 | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 2900mm | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 1400mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 4200mm | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 253kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT1213 and WT1213S
| Model | WT1213 | WT1213S | |
| Dimensions of Transmission Devices | Length | 15500mm | 17000mm |
| Width | 3200mm | 3600mm | |
| Height | 3800mm | 3800mm | |
| Weight | 53t | 60t | |
| Feeder | Hopper Volume | 5m³ | 5m³ |
| Loading Height | 3900mm | 4100mm | |
| Primary Screen | Power | 6.12kw | 6.12kw |
| Sieve Dimensions | 1140×924mm | 1140×924mm | |
| Crusher | Model | CI1213M | CI1315M |
| Inlet Dimensions | 1320×900mm | 1320×900mm | |
| Max.Feeding Size | 500mm | 500mm | |
| The Feeder at the Bottom | Hopper Volume | 1m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×9900mm | 1200×11000mm |
| Dumping Height | 3500mm | 3500mm | |
| Secondary Screen | Power | ○ | ○ |
| Sieve Dimensions | ○ | 1500×4200 | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 3000mm | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 1400mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 4500mm | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 304kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT1315
| Model | WT1315 | |
| Dimensions of Transmission Devices | Length | 17000mm |
| Width | 3200mm | |
| Height | 3800mm | |
| Weight | 65t | |
| Feeder | Hopper Volume | 5m³ |
| Loading Height | 4000mm | |
| Primary Screen | Power | 6.12kw |
| Sieve Dimensions | 1240×930mm | |
| Crusher | Model | CI1315M |
| Inlet Dimensions | 1540×900mm | |
| Max.Feeding Size | 600mm | |
| The Feeder at the Bottom | Hopper Volume | 1.5m³ |
| Power | 6.12kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm |
| Dumping Height | 2400mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1200×11000mm |
| Dumping Height | 3800mm | |
| Secondary Screen | Power | ○ |
| Sieve Dimensions | ○ | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ |
| Dumping Height | ○ | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ |
| Dumping Height | ○ | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ |
| Dumping Height | ○ | |
| Iron Remover | Model | RCYQ-10 |
| Diesel Engine | Power | 132kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | |
| Model | ST673 | ST993 | ST1303 | |
| Dimensions of Transmission Devices | Length | 11000mm | 12500mm | 12500mm |
| Width | 3800mm | 4000mm | 4000mm | |
| Height | 3800mm | 3900mm | 3900mm | |
| Weight | 28t | 33t | 38t | |
| Feeding Belt Conveyor | Dimensions(Width×Length) | 1000×10000mm | 1000×10000mm | 1000×13000mm |
| Loading Height | 2560mm | 2680mm | 2700mm | |
| Vibrating Screen | Model | 3HX1545 | 3HX1855 | 3HX2160 |
| Sieving Layers | 3 | 3 | 3 | |
| Belt Conveyor | Dimensions(Width×Length) | 1000×7400mm | 1000×7500mm | 1000×7500mm |
| Discharging Height | 3380mm | 3460mm | 3460mm | |
| Belt Conveyor for Coarse Material | Dimensions(Width×Length) | 500×5600mm | 650×5800mm | 650×5800mm |
| Discharging Height | 3430mm | 3570mm | 3570mm | |
| Belt Conveyor for Medium-Sized Material | Dimensions(Width×Length) | 500×5300mm | 650×5400mm | 650×5400mm |
| Discharging Height | 3150mm | 3250mm | 3250mm | |
| Belt Conveyor for Fine Material | Dimensions(Width×Length) | 500×5600mm | 650×5800mm | 650×5800mm |
| Discharging Height | 3030mm | 3080mm | 3080mm | |
| Transferring Belt Conveyors | Dimensions(Width×Length) | 500×2000mm | 650×2000mm | 650×2000mm |
| Discharging Height | 2130mm | 2130mm | 2130mm | |
| Diesel Engine | Power | 75kw | 75kw | 96kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 54kw | 57.5kw | 65.5kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model ST673 and ST993
| Model | ST673 | ST993 | |
| Dimensions of Transmission Devices | Length | 11000mm | 12500mm |
| Width | 3800mm | 4000mm | |
| Height | 3800mm | 3900mm | |
| Weight | 28t | 33t | |
| Feeding Belt Conveyor | Dimensions(Width×Length) | 1000×10000mm | 1000×13000mm |
| Loading Height | 2560mm | 2680mm | |
| Vibrating Screen | Model | 3HX1545 | 3HX2160 |
| Sieving Layers | 3 | 3 | |
| Belt Conveyor | Dimensions(Width×Length) | 1000×7400mm | 1000×7500mm |
| Discharging Height | 3380mm | 3460mm | |
| Belt Conveyor for Coarse Material | Dimensions(Width×Length) | 500×5600mm | 650×5800mm |
| Discharging Height | 3430mm | 3570mm | |
| Belt Conveyor for Medium-Sized Material | Dimensions(Width×Length) | 500×5300mm | 650×5400mm |
| Discharging Height | 3150mm | 3250mm | |
| Belt Conveyor for Fine Material | Dimensions(Width×Length) | 500×5600mm | 650×5800mm |
| Discharging Height | 3030mm | 3080mm | |
| Transferring Belt Conveyors | Dimensions(Width×Length) | 500×2000mm | 650×2000mm |
| Discharging Height | 2130mm | 2130mm | |
| Diesel Engine | Power | 75kw | 96kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 54kw | 65.5kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model ST1303
| Model | ST1303 | |
| Dimensions of Transmission Devices | Length | 12500mm |
| Width | 4000mm | |
| Height | 3900mm | |
| Weight | 38t | |
| Feeding Belt Conveyor | Dimensions(Width×Length) | 1000×13000mm |
| Loading Height | 2700mm | |
| Vibrating Screen | Model | 3HX2160 |
| Sieving Layers | 3 | |
| Belt Conveyor | Dimensions(Width×Length) | 1000×7500mm |
| Discharging Height | 3460mm | |
| Belt Conveyor for Coarse Material | Dimensions(Width×Length) | 650×5800mm |
| Discharging Height | 3570mm | |
| Belt Conveyor for Medium-Sized Material | Dimensions(Width×Length) | 650×5400mm |
| Discharging Height | 3250mm | |
| Belt Conveyor for Fine Material | Dimensions(Width×Length) | 650×5800mm |
| Discharging Height | 3080mm | |
| Transferring Belt Conveyors | Dimensions(Width×Length) | 650×2000mm |
| Discharging Height | 2130mm | |
| Diesel Engine | Power | 96kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 65.5kw |
| Ways of Controlling | Wired/Wireless (optional) | |
Our global service network is ready to provide on-site technical support, genuine parts, and 24/7 assistance for your crushing projects.
We will send you equipment information and a quote via email or WhatsApp.
