Processing Capacity: 10-45t/h
Iutput Size: 30mm

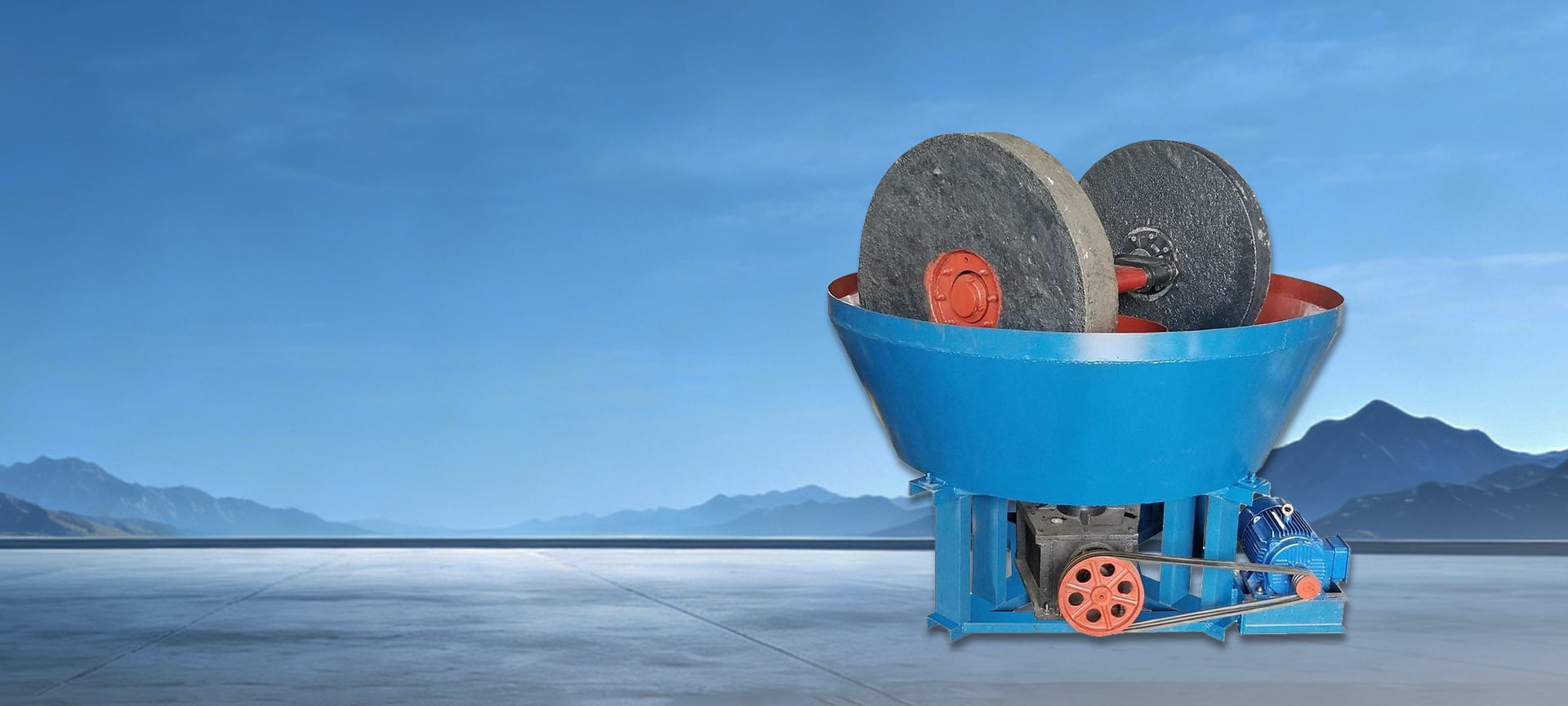

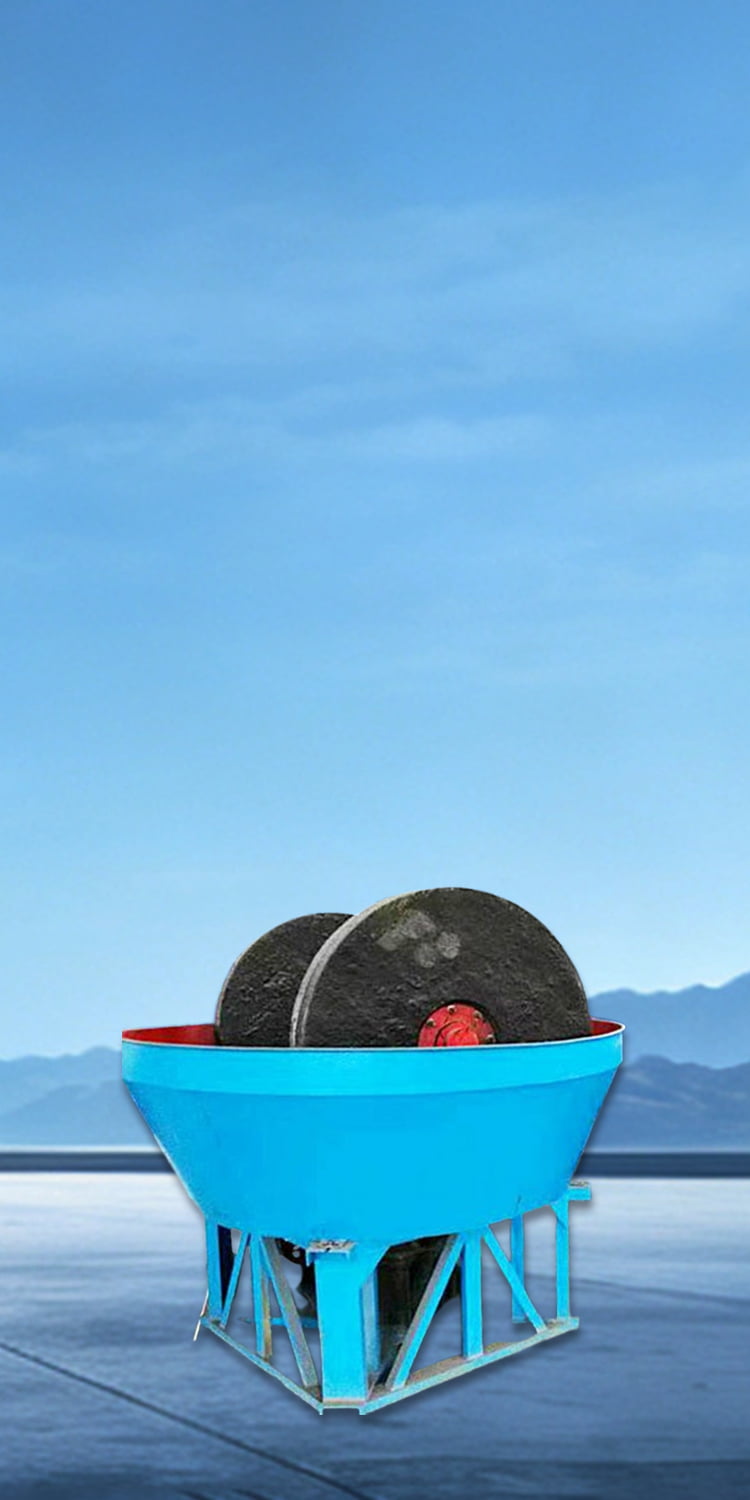

The wet pan mill can be used for the grinding operations of gold, silver, copper, iron,molybdenum, quartz and other ores, especially in the grinding work of various vein goldmines, rock gold mines, placer gold mines, and associated gold mines. A wide range ofminerals (natural gold, fractured gold, coated gold, fine-grained gold, fine-grained gold)can achieve good grinding indicators, providing favorable conditions for subsequentgold selection operations.
Large crushing ratio; the proportion of 80-200 mesh products can reach more than 95%.
The machine is assembled with special casting parts and it has precision design which makes the machinedurable.
Wet pan mill has simple structure and less wearing parts, thus easy to maintain and requiring low investment.
The wet grinding process effectively reduces dust emission, and the closed-loop design minimizes wastewaterdischarge, meeting strict environmental protection standards.
| Model | Roller dia. (mm) | Pan dia. (mm) | Suggest feeding size (mm) | Daily capacity(t) | power (kw) | Rotation speed (rpm) |
| 1100 | 1100 | 1780 | 30 | 10 | 4P5.5 | 17-19 |
| 1200 | 1200 | 1780 | 30 | 15 | 6P7.5 | 17-19 |
| 1400 | 1400 | 1880 | 30 | 25 | 6P15 | 16-18 |
| 1500 | 1500 | 1880 | 30 | 35 | 6P22 | 19-21 |
| 1600 | 1600 | 1880 | 30 | 45 | 6P30 | 19-21 |
| Model | Roller dia. (mm) | Pan dia. (mm) | Daily capacity(t) | power (kw) |
| 1100 | 1100 | 1780 | 10 | 4P5.5 |
| 1200 | 1200 | 1780 | 15 | 6P7.5 |
| 1400 | 1400 | 1880 | 25 | 6P15 |
| 1500 | 1500 | 1880 | 35 | 6P22 |
| 1600 | 1600 | 1880 | 45 | 6P30 |
Our global service network is ready to provide on-site technical support, genuine parts, and 24/7 assistance for your crushing projects.
We will send you equipment information and a quote via email or WhatsApp.
