Feed size: ≤1200mm
Capacity: 80-1500t/h

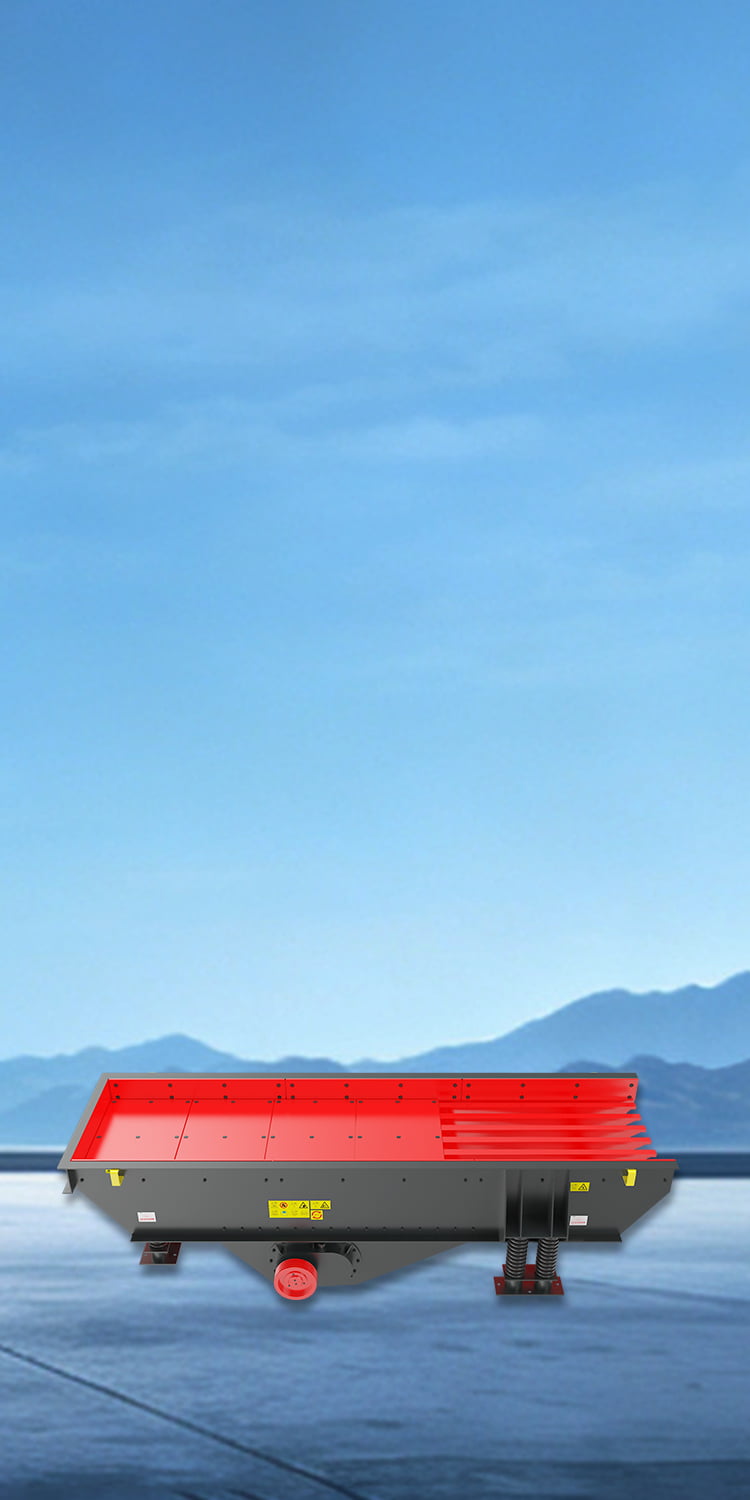

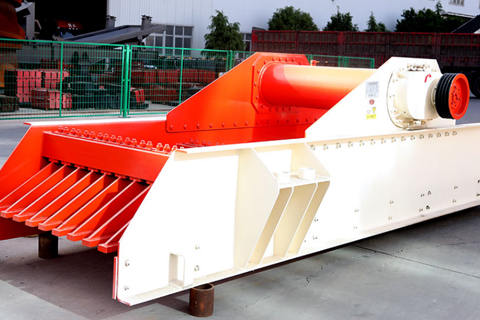

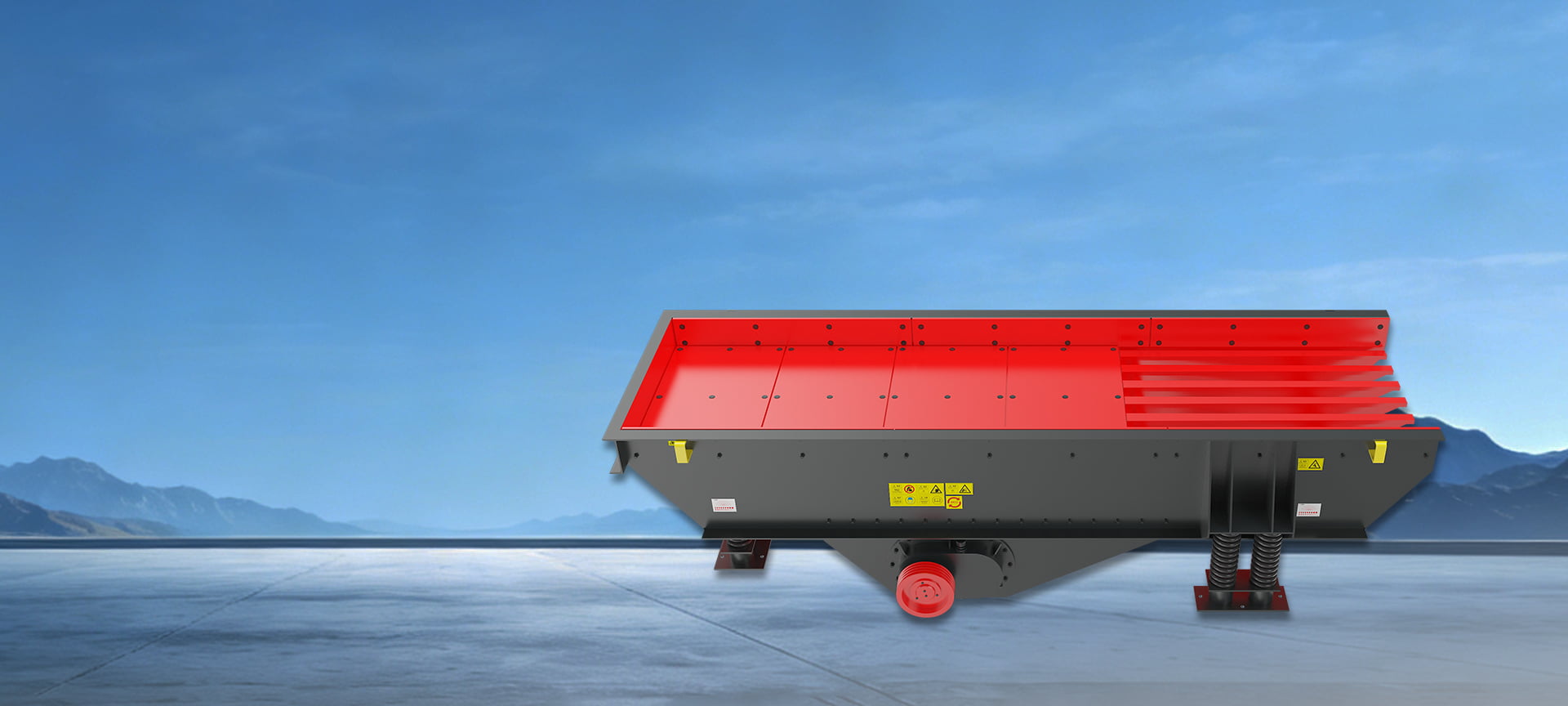

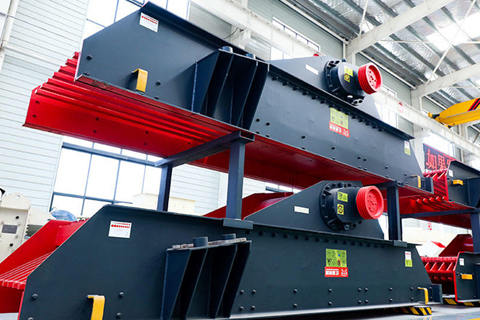

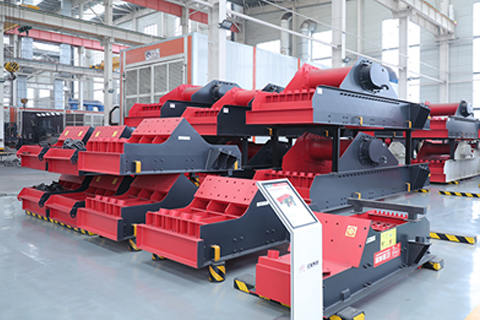

The ZSW vibrating feeder features stable vibration, reliable operation, and long service life.
It provides continuous and uniform feeding for crushing machinery and performs material screening.
It is widely used in combined crushing and screening equipment in mineral processing, building materials, silicate, and chemical industries.
Special grate design prevents material blockage and provides primary screening, thereby increasing production output.
Spring device buffers machine vibration, effectively preventing machine damage and extending service life.
The vibratory motor is the excitation source, with low noise, low power consumption, good adjustability, and no material surging.
| Model | Max. Feeding Size (mm) | Processing Capacity (t/h) | Motor Power (kw) | Obliquity of material trough (°) | Trough size (mm) |
| GZD-650×2300 | 300 | 80-100 | 2×1.1 | 10-20 | 650×2300 |
| GZD-750×2500 | 350 | 100-130 | 2×1.1 | 10-20 | 750×2500 |
| GZD-850×3000 | 400 | 120-150 | 2×3 | 10-20 | 850×3000 |
| GZD-1000×3600 | 500 | 150-200 | 2×3.7 | 10-20 | 1000×3600 |
| GZD-1100×3600 | 580 | 240-300 | 2×3.7 | 10-20 | 1100×3600 |
| GZD-1300×3600 | 650 | 450-600 | 2×5.5 | 10-20 | 1300×3600 |
| GZD-1500×3600 | 1050 | 450-1000 | 2×7.5 | 10-20 | 1500×3600 |
| ZSW-380×95 | 500 | 100-280 | 8p 11 | 0-5-10-15 | 3800×960 |
| ZSW-490×110 | 630 | 150-400 | 6p 15 | 0-5-10 | 4900×1100 |
| ZSW-490×130 | 750 | 400-700 | 6p 22 | 0-5-10 | 4900×1300 |
| ZSW-600×130 | 750 | 400-700 | 4p 22 | 0-5-10 | 6000×1300 |
| ZSW-600×150 | 800 | 500-900 | 4p 30 | 0-5-10 | 6000×1500 |
| ZSW-600×180 | 900 | 700-1300 | 4p 37 | 0-5-10 | 6000×1800 |
| ZSW-600×200 | 1200 | 800-1500 | 4p 55 | 0-5-10 | 6000×2000 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Max. Feeding Size (mm) | Processing Capacity (t/h) |
| GZD-650×2300 | 300 | 80-100 |
| GZD-750×2500 | 350 | 100-130 |
| GZD-850×3000 | 400 | 120-150 |
| GZD-1000×3600 | 500 | 150-200 |
| GZD-1100×3600 | 580 | 240-300 |
| GZD-1300×3600 | 650 | 450-600 |
| GZD-1500×3600 | 1050 | 450-1000 |
| ZSW-380×95 | 500 | 100-280 |
| ZSW-490×110 | 630 | 150-400 |
| ZSW-490×130 | 750 | 400-700 |
| ZSW-600×130 | 750 | 400-700 |
| ZSW-600×150 | 800 | 500-900 |
| ZSW-600×180 | 900 | 700-1300 |
| ZSW-600×200 | 1200 | 800-1500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
